6.1.6. METHOD FOR LOADING/UNLOADING OF MECHANISM
6.1.6.1. (Electrical Method)
CAUTION:
If loading does not start after DC Power Supply is applied, DO NOT
continue to applying DC Power Supply.

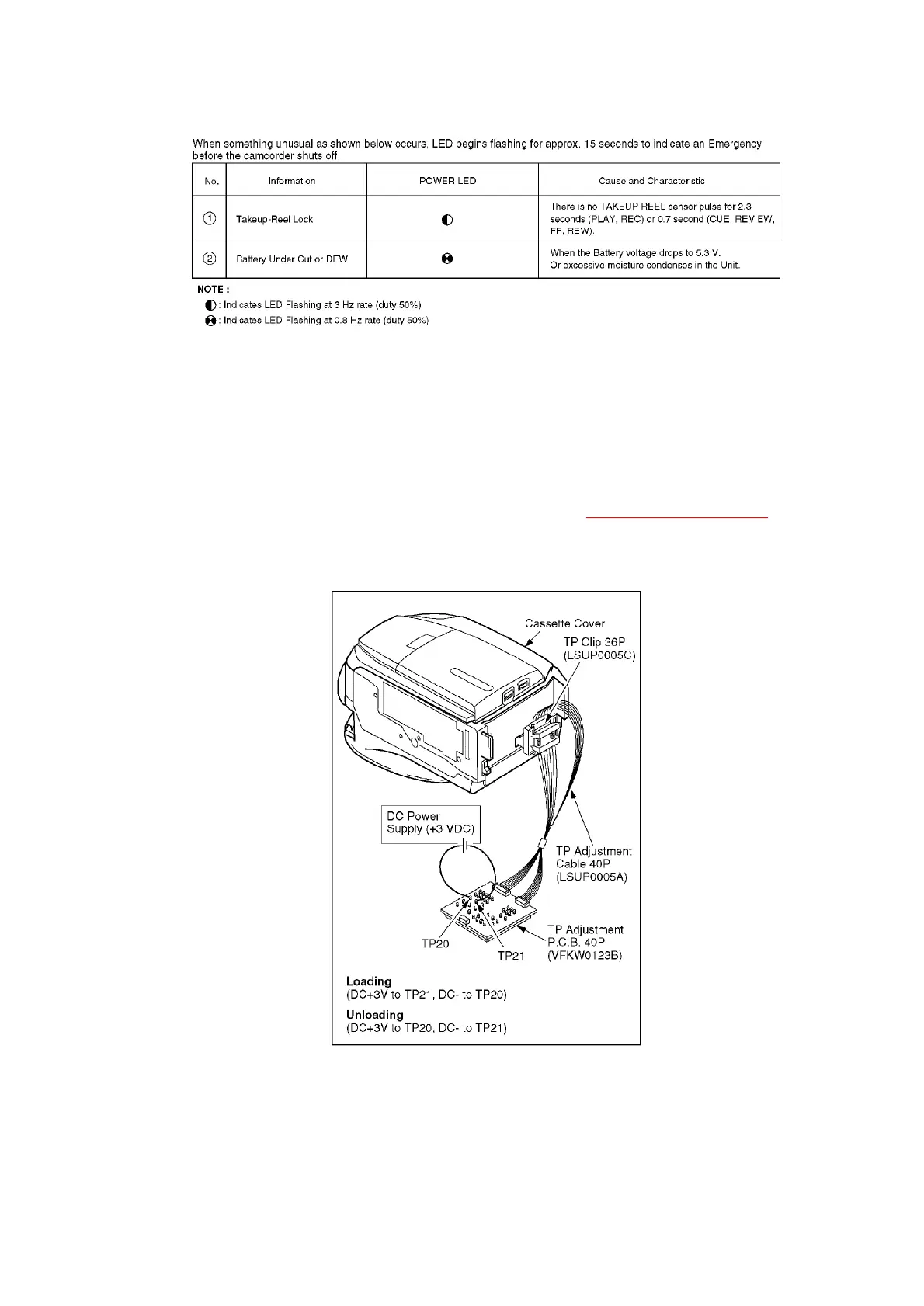

Connect the TP Board as shown, and apply 3 VDC Power Supply (DC+ to TP21, DC- to TP20 for
loading or DC+ to TP20, DC- to TP21 for unloading). Refer to "HOW TO USE TP BOARD."
It normally takes approx. 6 seconds to unload the Mechanism from fully-loaded position to
EJECT position.
Fig. 3-1
6.1.6.2. (Manual Method) without Cabinet Parts
Turn the Gear of Reduction Gear Unit clockwise (for loading) or counterclockwise (for unloading)
manually.
It is necessary to rotate approx. 80 times from fully-loaded position to EJECT position.
Fig. 3-2
