Panasonic PV-D301 - Page 20

5. Open the Cassette Cover fully.

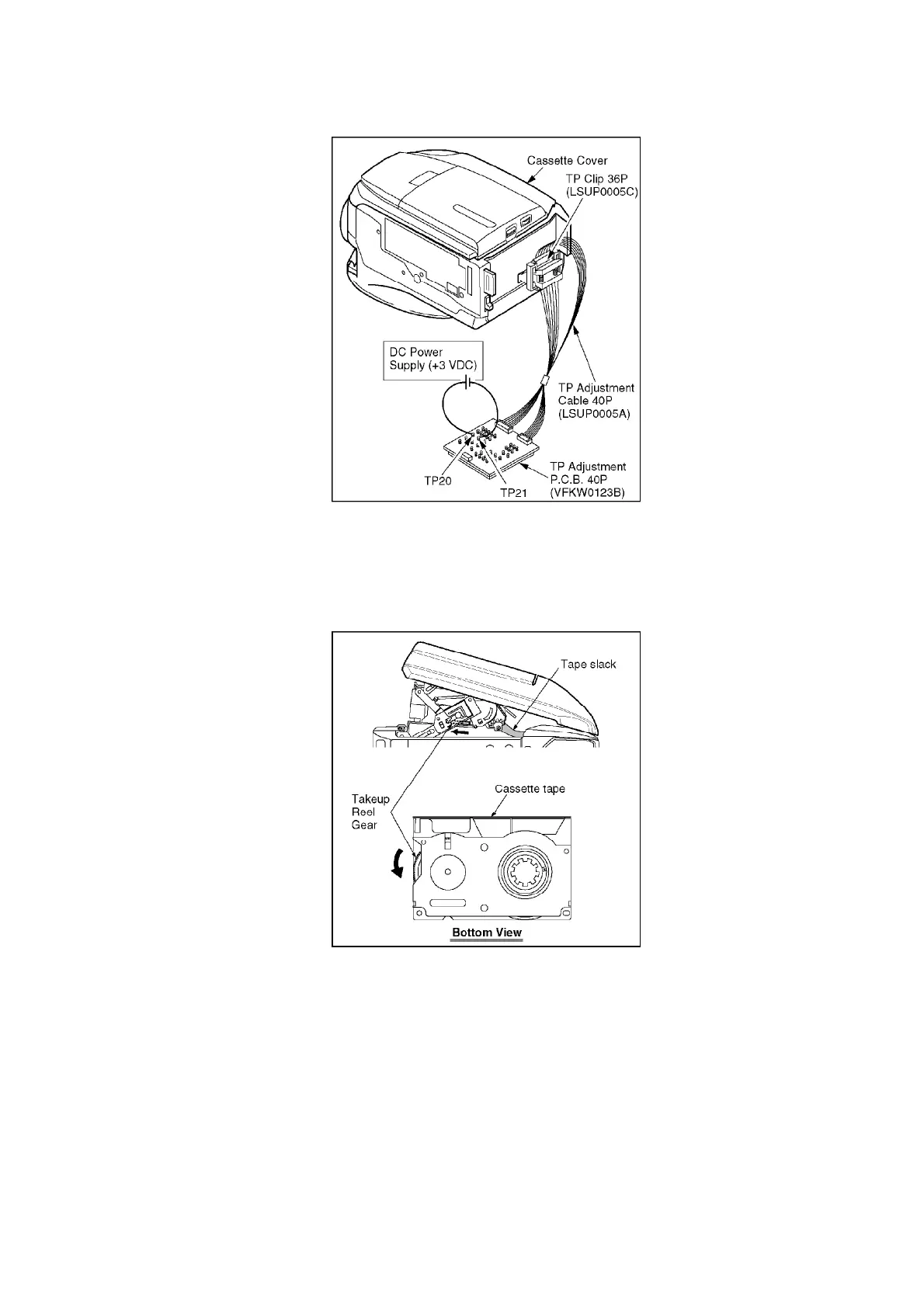

6. Remove the tape slack by rotating the Takeup Reel Gear of the
cassette tape as shown in Fig. 4-3.
Fig. 4-3
7. Take out the cassette tape.
8. Connect the Power or Battery to set the Mechanism to STOP
Position.
6.1.8. HOW TO USE TP BOARD
6.1.8.1. TP Board is required when:
1. performing "Tape Interchangeability Adjustment."
20
