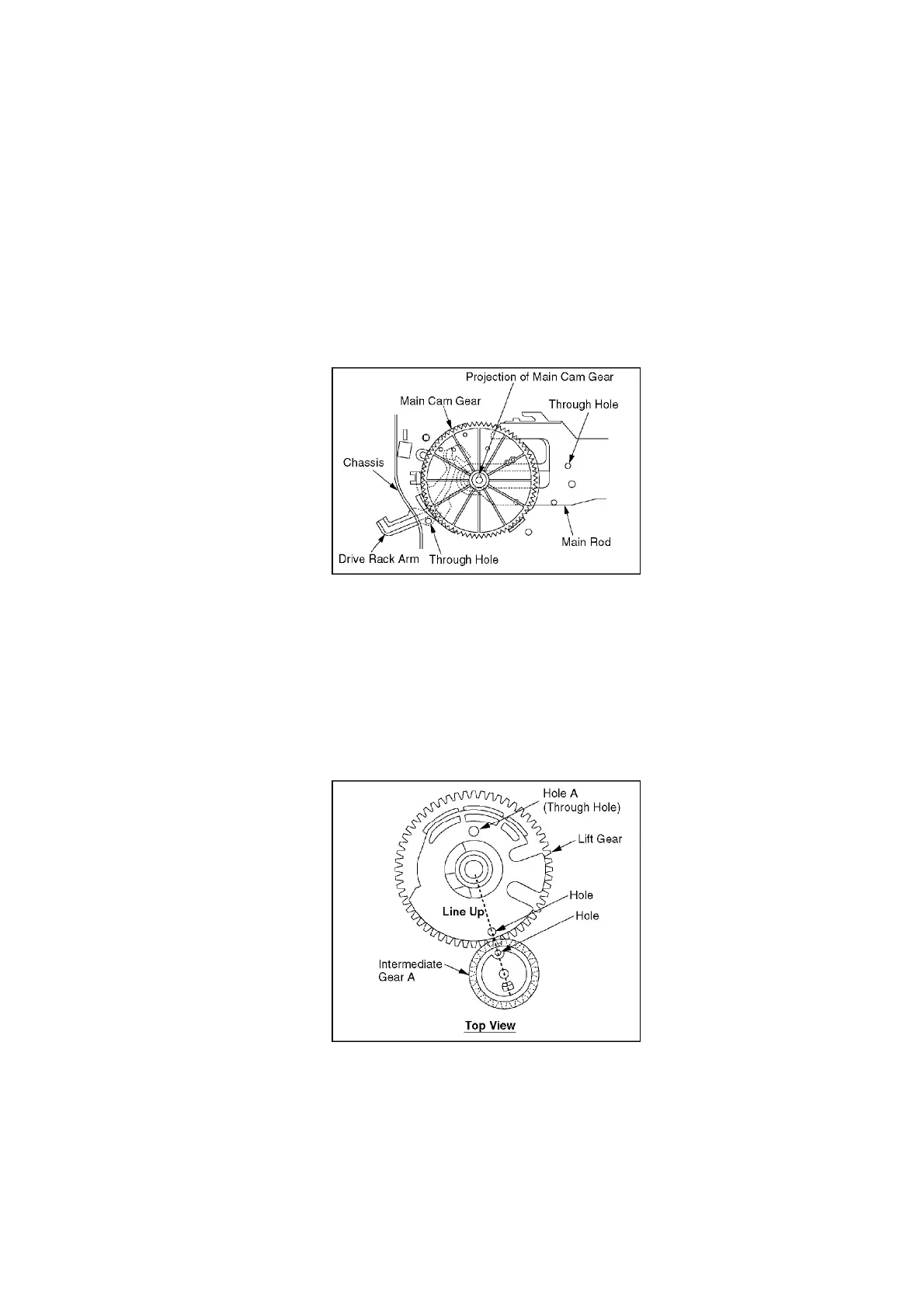

1. Alignment of Main Cam Gear, Drive Rack Arm, and Main Rod
A. Confirm that the hole on Main Rod is a Through Hole with a hole
on chassis.
B. Confirm that the hole on Drive Rack Arm is a Through Hole with
a hole on chassis.
C. Install the Main Cam Gear so that the projection of Main Cam
Gear is in the upward position as shown.
Fig. J3-2
2. Confirmation/Alignment of Intermediate Gear B, Main Cam Gear,
and Intermediate Gear A
A. Confirm that the Hole A on Lift Gear is a Through Hole with a
hole on chassis.
B. Confirm that the hole on Intermediate Gear A is aligned with the
hole on Lift Gear.
Fig. J3-3
C. Install the Intermediate Gear B so that the hole on the
Intermediate Gear B is aligned with the hole on the Main Cam
Gear.
Fig. J3-4
34
