6.2.7. Reel Gear and Main Rod

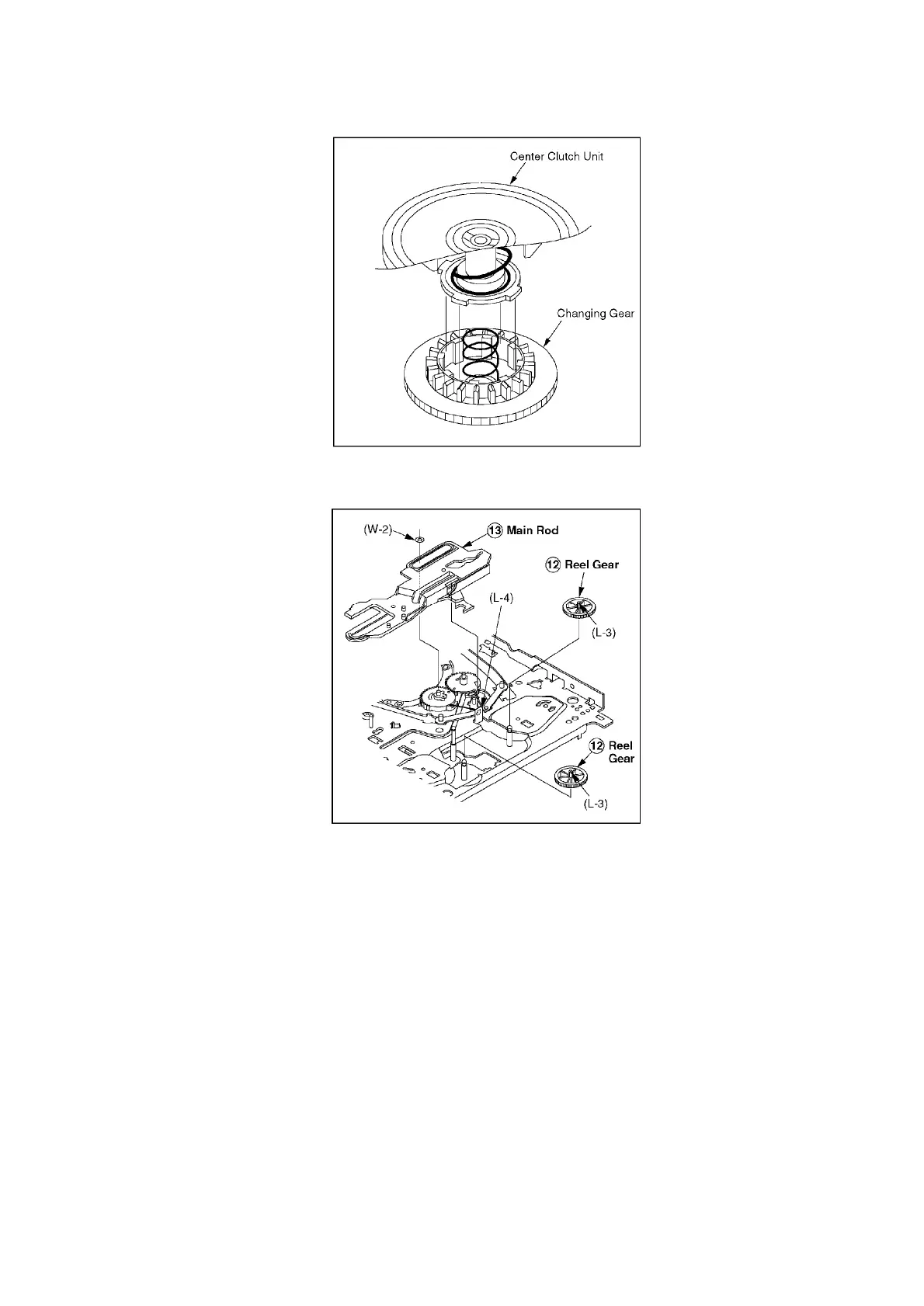

Fig. J5-1
6.2.7.1. Reassembly Notes
1. Alignment of Main Rod and T Loading Arm Unit
A. Align the Gear of T Loading Arm Unit with Gear of Main Rod.
Confirm that the Hole on Main Rod is a Through Hole with a hole
on chassis.
Fig. J5-2
