23

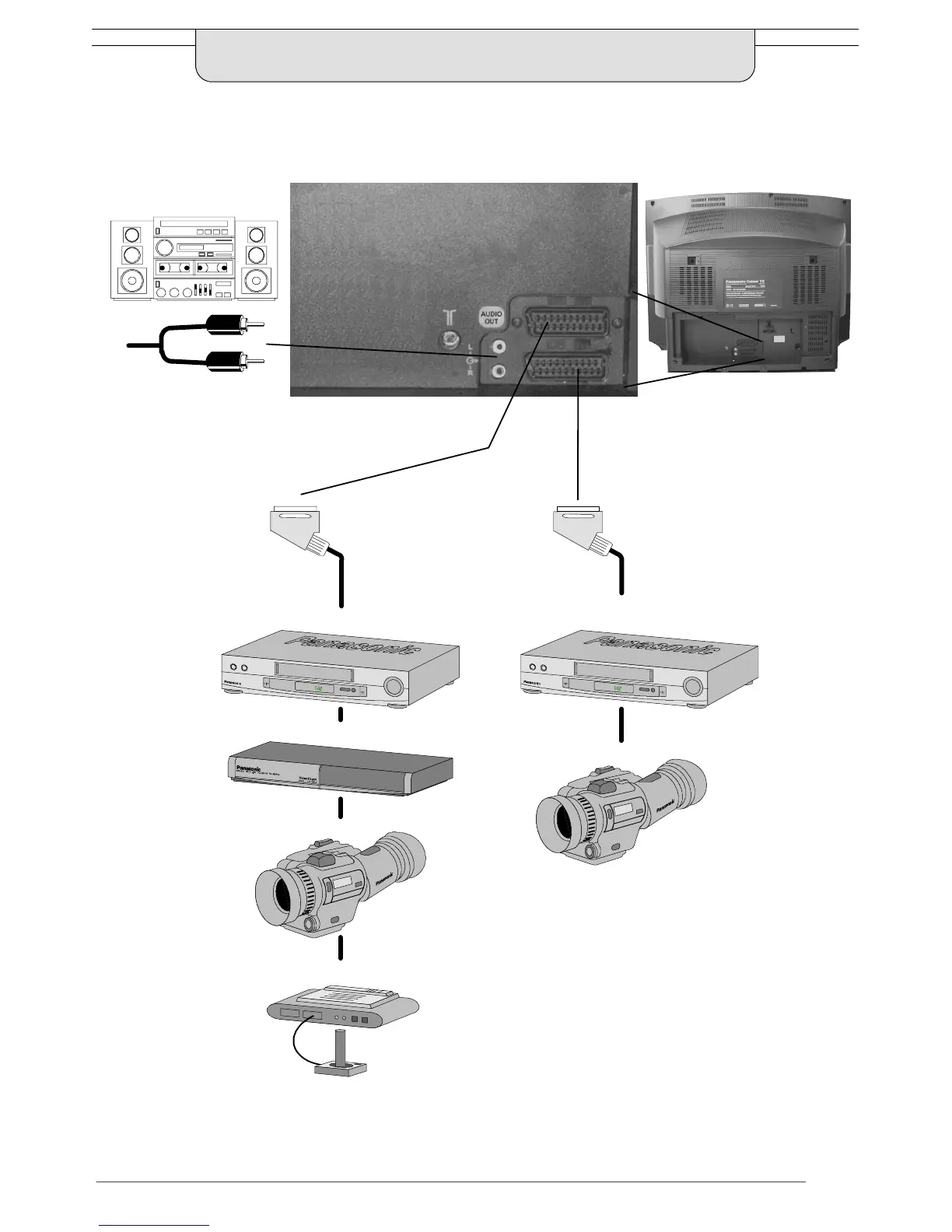

Input/Output from
AV2 SCAR T Socket
Q-- Link data
Input/Output from
AV1 SCART Socket
VCR
S-- VIDEO VCR
Q-- LINK COMP ATIBLE VCR
S-- VIDEO CAMCORDER
HI-- FI SYSTEM
Output from
L-- RAUDIOOUT
Sockets
Rear AV1/AV2(S) 21 Pin SCART and RCA Audio Out Terminals
Notes:
Ancillary equipment and cables shown are not supplied with this TV set.
Do not connec t a computer with TTL output (5V) to this set.
2xRCA Audio
Cables
SCART Cable
SCART Cable
VCR
CAMCORDER
GAMES CONSOLE / COMPUTER (RGB)
SATELLITE RECEIVER
AUDIO / VIDEO CONNECTIONS
