Panasonic RR-DR60 - Page 13

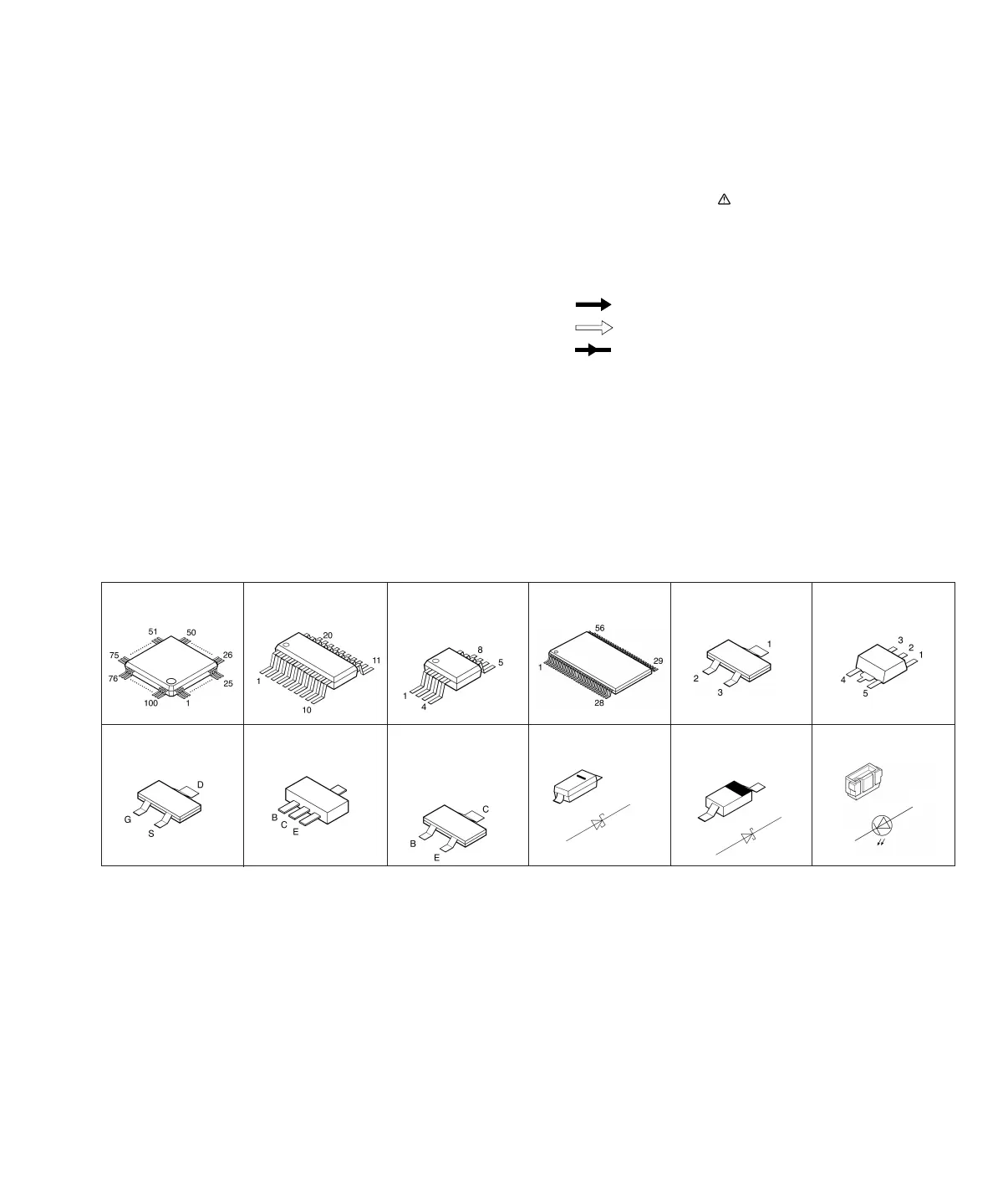

XC61AN2002MRSDTB-16A
2SB1218ASTX
2SB1295-6-TB
2SD1819ASTX
2SD1328STX
2SK1958T1
MA735TX2SD1119RTX
MA728TX
MA729TX
LNJ210C6RRA
XC6372D331PR
MN1931712BB
MN101C16ACA3
NJM2113VTE1
TC7WU04FUT2L
TC7W126FUT2L
MSM7702-02MS
Cathode
Anode
Ca
A
Cathode
Anode
Ca
A
Cathode
Anode
Ca
A
Notes:
• S2 : Erase(ERASE) switch.
• S3 : Play/select/stop dial(PLAY/SEL/STOP) switch.
• S4 : Recording start/stop(REC START/STOP) switch.
• S5 : Hold(HOLD) switch to “ON” position.
• S6 : Speed control(SPEED CONTROL) switch to “ON” position.
• S7 : Mode select(MODE SELECT) switch to “CLOCK/MIC SET”
position.
• S9: Mode(MODE) switch.
• S11: 10 second review(10 SEC REVIEW) switch.
• VR1: Volume control.
• DC voltage measurements are taken with electronics voltmeter.
• The negative terminal of the battery provides negative meter con-
nection point.
• No mark ... Recording, ( ) .... Playback
• Important safety notice
• Components identified by mark have special characteristics im-
portant for safety.
• When replacing any of these components, use only manufactue’s
specified parts.
• Signal lines
: Voice signal (analog) line
: Voice signal (digital) line
: Positive voltage line
