Panasonic RX-5080 - Location of Controls and Components

- RX-5080

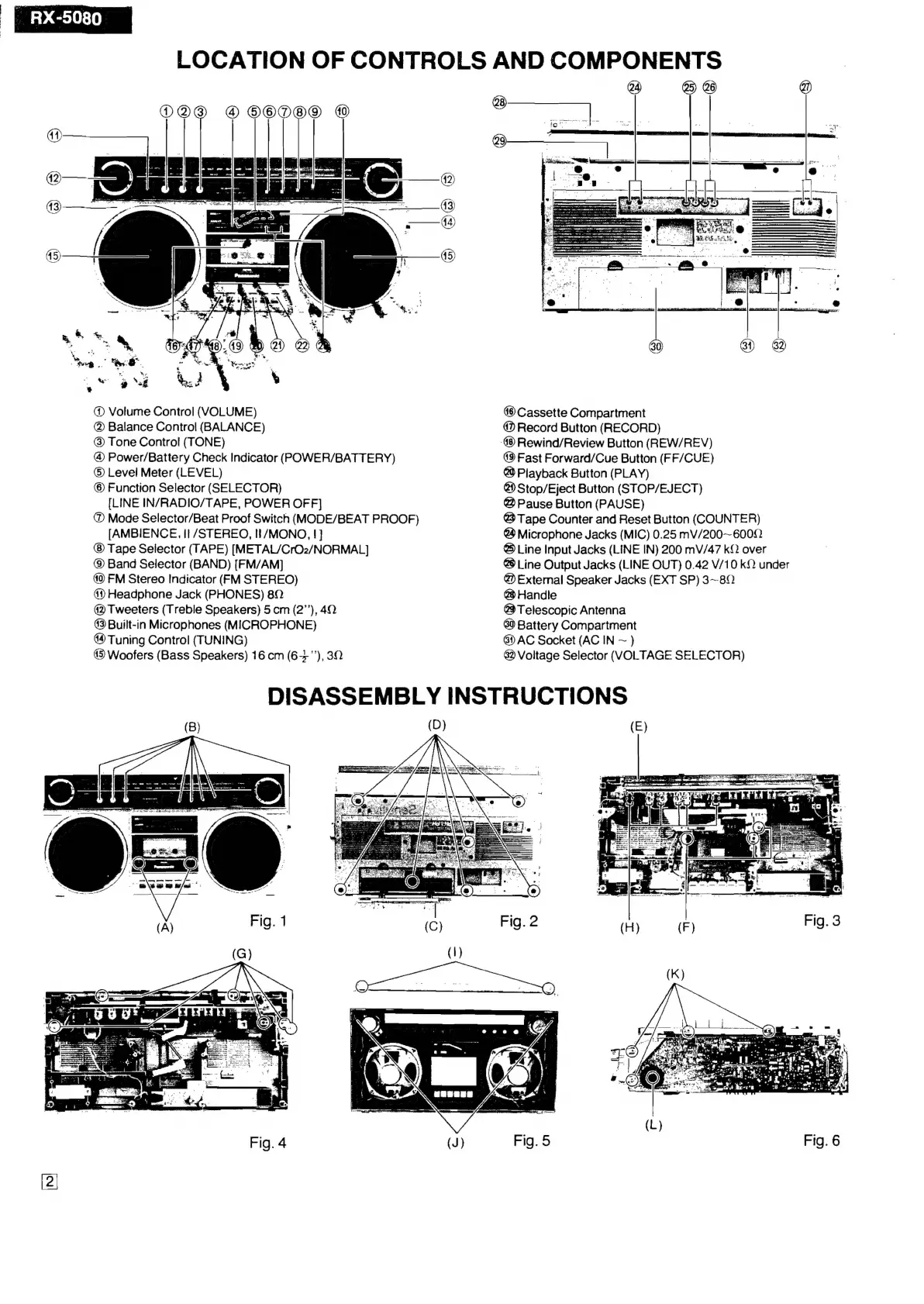

LOCATION OF CONTROLS AND COMPONENTS
@ Volume Control (VOLUME)
@ Balance Control (BALANCE)
@ Tone Control (TONE)
@ Power/Battery Check Indicator (POWER/BATTERY)
©) Level Meter (LEVEL)
Function Selector (SELECTOR)
[LINE IN/RADIO/TAPE, POWER OFF]
@ Mode Selector/Beat Proof Switch (MODE/BEAT PROOF)
[AMBIENCE, I! STEREO, I! /MONO, 1]
Tape Selector (TAPE) [METAL/CrO2/NORMAL]
@ Band Selector (BAND) [FM/AM]
FM Stereo Indicator (FM STEREO)
a) Headphone Jack (PHONES) 82
42 Tweeters (Treble Speakers) 5 cm (2”’), 40
43 Built-in Microphones (MICROPHONE)
# Tuning Control (TUNING)
43) Woofers (Bass Speakers) 16 cm (6-4+’), 3
Cassette Compartment
4) Record Button (RECORD)
‘@® Rewind/Review Button (REW/REV)
@9 Fast Forward/Cue Button (FF/CUE)
@ Playback Button (PLAY)
@ Stop/Eject Button (STOP/EJECT)
@ Pause Button (PAUSE)
@ Tape Counter and Reset Button (COUNTER)
@ Microphone Jacks (MIC) 0.25 mV/200~6000
@ Line Input Jacks (LINE IN) 200 mV/47 k© over
@ Line Output Jacks (LINE OUT) 0.42 V/10 kf. under
@ External Speaker Jacks (EXT SP) 3~80
@ Handle
@ Telescopic Antenna
80 Battery Compartment
6) AC Socket (AC IN ~ )
€ Voltage Selector (VOLTAGE SELECTOR)
DISASSEMBLY INSTRUCTIONS
