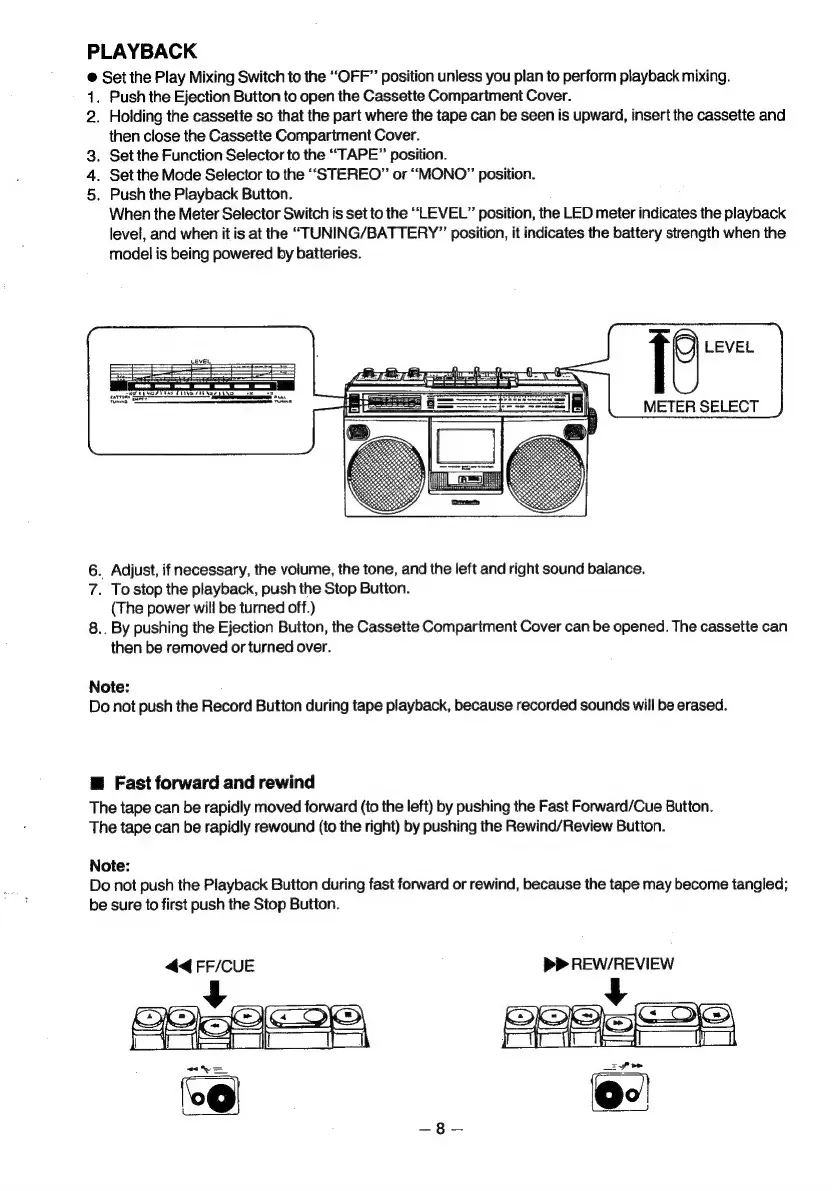

PLAYBACK
@ Set the Play Mixing Switch to the “OFF” position unless you plan to perform playback mixing.
1. Push the Ejection Button to open the Cassette Compartment Cover.
2. Holding the cassette so that the part where the tape can be seen is upward, insert the cassette and
then close the Cassette Compartment Cover.
3. Set the Function Selector to the “TAPE” position.
4. Set the Mode Selector to the “STEREO” or “MONO” position.
5. Push the Playback Button.
When the Meter Selector Switch is set to the “LEVEL” position, the LED meter indicates the playback
level, and when it is at the “TUNING/BATTERY” position, it indicates the battery strength when the
model is being powered by batteries.
cever
p
ji
aE,
sf ee oe METER SELECT
6. Adjust, if necessary, the volume, the tone, and the left and right sound balance.
7. Tostop the playback, push the Stop Button.
(The power will be turned off.)
8.. By pushing the Ejection Button, the Cassette Compartment Cover can be opened. The cassette can
then be removed or turned over.
Note:
Do not push the Record Button during tape playback, because recorded sounds will be erased.
@ Fast forward and rewind
The tape can be rapidly moved forward (to the left) by pushing the Fast Forward/Cue Button.
The tape can be rapidly rewound (to the right) by pushing the Rewind/Review Button.
Note:
Do not push the Playback Button during fast forward or rewind, because the tape may become tangled;
be sure to first push the Stop Button.
44
FF/CUE
p>
REW/REVIEW
