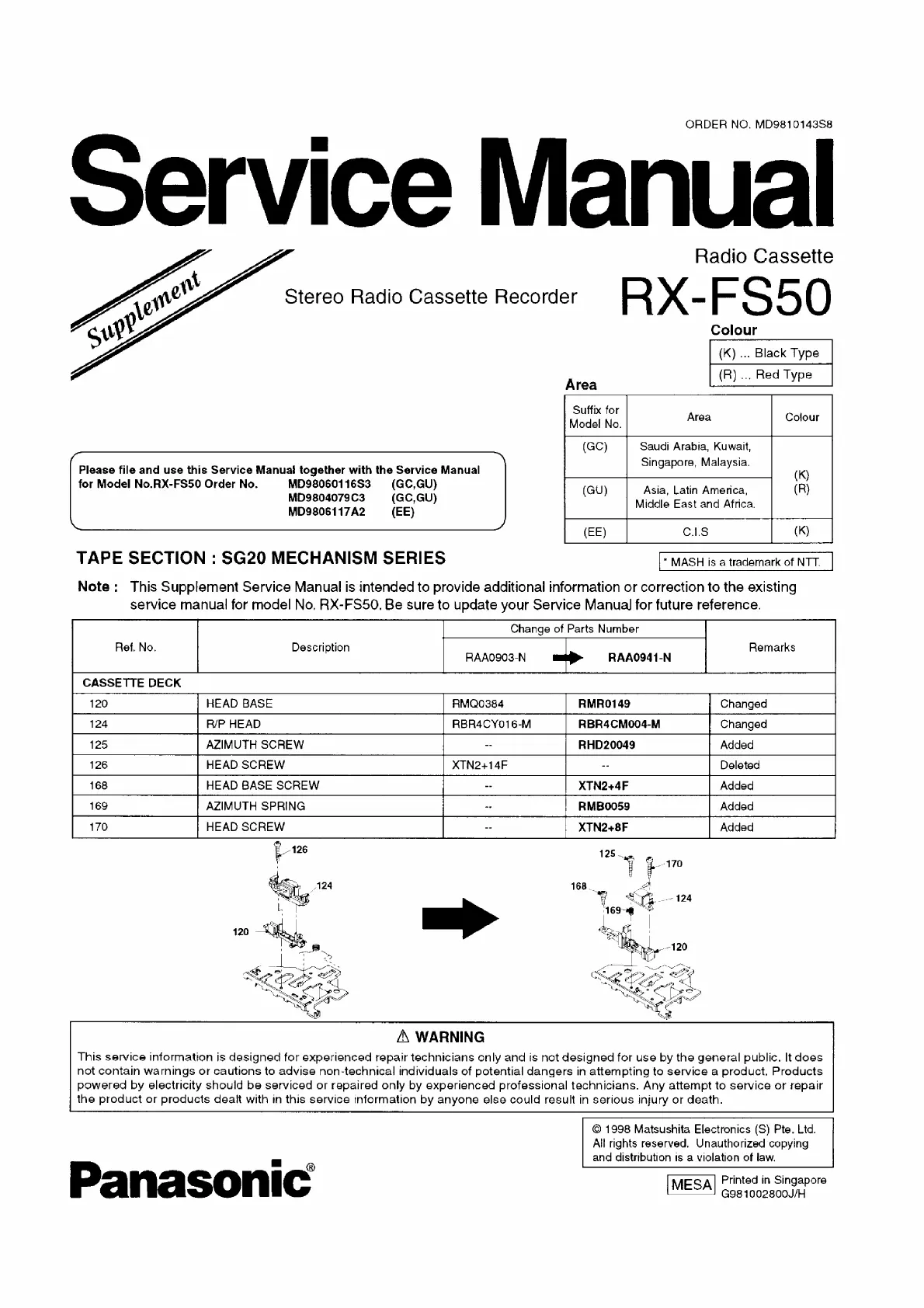

Panasonic RX-FS50 - Page 27

ORDER NO. MD9810143S8
Service Manual
Radio Cassette
CS Stereo Radio Cassette Recorder R xX- FS 5O
Ky)
Colour
(K) ... Black Type
R) ... Red Type
Area (R) yp
Suffix for Colour
Model No.
(GC) Saudi Arabia, Kuwait,
Please file and use this Service Manual together with the Service Manual Singapore, Malaysia (K)
for Model No.RX-FS50 Order No. MD98060116S3 (GC,GU) (R)
(GU) Asia, Latin America,
MD9804079C3 = (GC,GU) Middle East and Africa.
MD9806117A2 (EE)
TAPE SECTION : SG20 MECHANISM SERIES
Note: This Supplement Service Manual is intended to provide additional information or correction to the existing
service manual for model No. RX-FS50, Be sure to update your Service Manual for future reference.
CASSETTE DECK
Change of Parts Number
Description Remarks
RAA0903-N a> = RAA0941-N
HEAD BASE RMQ0384 RMRO149
R/P HEAD RBR4CY016-M RBR4CMO004-M Changed
125 AZIMUTH SCREW -- RHD20049 Added
HEAD BASE SCREW | XING Added
AZIMUTH SPRING pom RMBoos9 Added
HEAD SCREW XTN2+8F Added
/A\ WARNING
This service information is dasigned for experienced repair technicians only and is not designed for use by the general public. It does
not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair
the product or products dealt with in this service information by anyone else could result in serious injury or death.
