ORDER NO. MD9804079C3

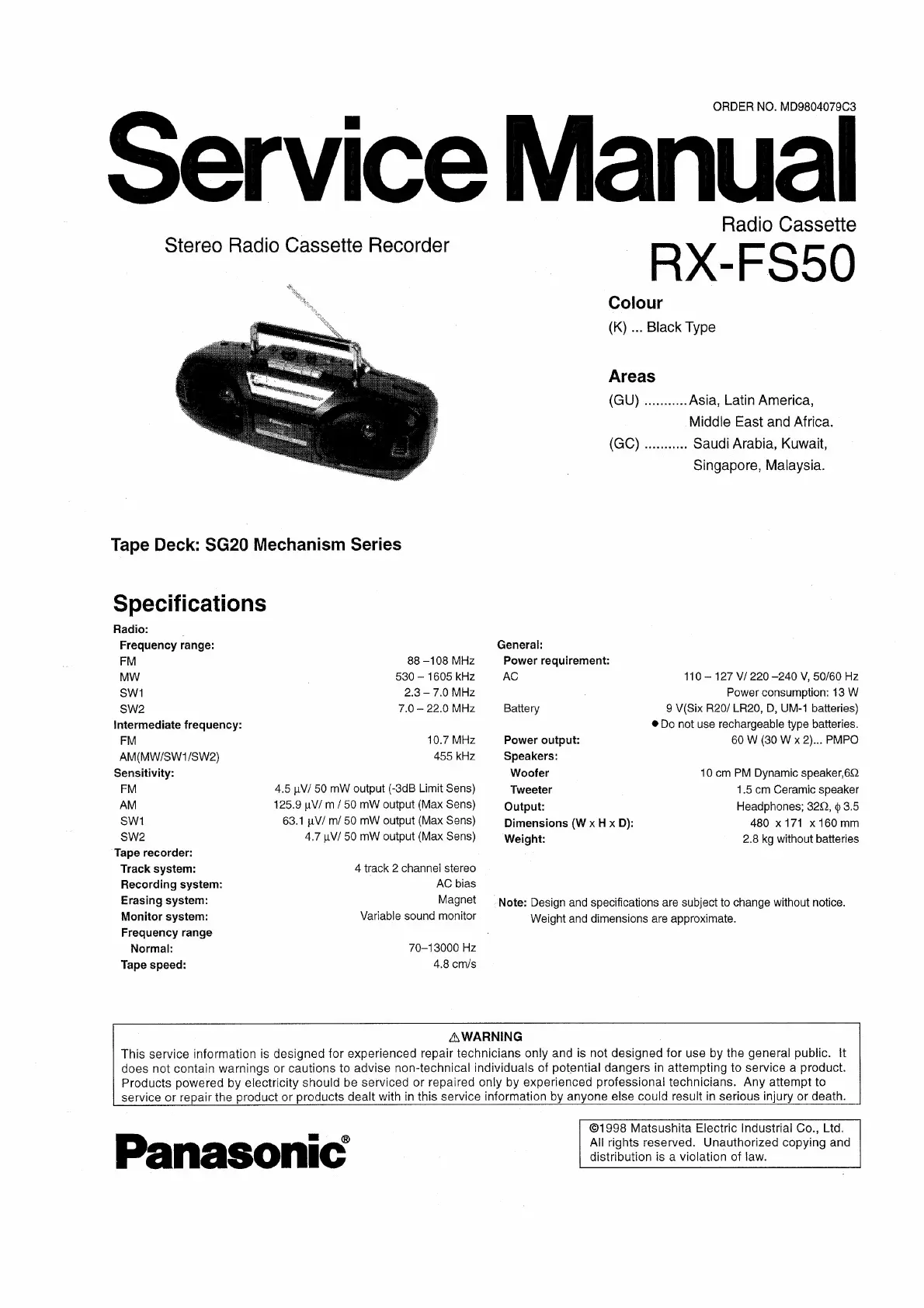

Service Manual
Radio Cassette
Stereo
Radio
Cassette
Recorder
RX-
FS
5
O
Colour
(K) ... Black Type
Areas
(GU) 2. cecse: Asia, Latin America,
Middle East and Africa.
(G1 04 apenas Saudi Arabia, Kuwait,
Singapore, Malaysia.
Tape Deck: SG20 Mechanism Series
Specifications
Radio:
Frequency range: General:
FM 88 -108 MHz Power requirement:
MW 530 - 1605 kHz AC 110 ~ 127 V/ 220 -240 V, 50/60 Hz
sw 2.3 — 7.0 MHz Power consumption: 13 W
SWw2 7.0 — 22.0 MHz Battery 9 V(Six R20/ LR20, D, UM-1 batteries)
Intermediate frequency: ®@ Do not use rechargeable type batteries.
FM 10.7 MHz Power output: 60 W (30 W x 2)... PMPO
AM(MW/SW1/SW2) 455 kHz Speakers:
Sensitivity: Woofer 10 cm PM Dynamic speaker,6Q
FM 4.5 wV/ 50 mW output (-3dB Limit Sens) Tweeter 1.5 cm Ceramic speaker
AM 125.9 wV/ m/ 50 mW output (Max Sens) Output: Headphones; 32Q, 63.5
swi 63.1 2V/ m/ 50 mW output (Max Sens) Dimensions (W x H x D): 480 x 171 x 160mm
Sw2 4.7 uV/ 50 mW output (Max Sens) — Weight: 2.8 kg without batteries
‘Tape recorder:
Track system: 4 track 2 channei stereo
Recording system: AC bias
Erasing system: Magnet —_ Note: Design and specifications are subject to change without notice.
Monitor system: Variable sound monitor Weight and dimensions are approximate.
Frequency range
Normal: 70-13000 Hz
Tape speed: 4.8 cm/s
A.WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
©1998 Matsushita Electric Industrial Co., Ltd.
— es All rights reserved. Unauthorized copying and
anasonic distribution is a violation of law.
