3. HOW TO INSTALL THE INDOOR UNIT
3-1. Starting the Installation
(1) Remove the rear panel.
NOTE
Tubing can be extended in 6 directions as shown below.
Select the direction you need providing the shortest run to the outside unit.
Tubing direction
Left tubing
Left-rear
tubing
Left-downward tubing
Right-downward tubing
Right tubing
Right-rear tubing
3-2. How to Make a Hole
The mounting wall should be strong and solid enough to withstand the unit’s vibration.

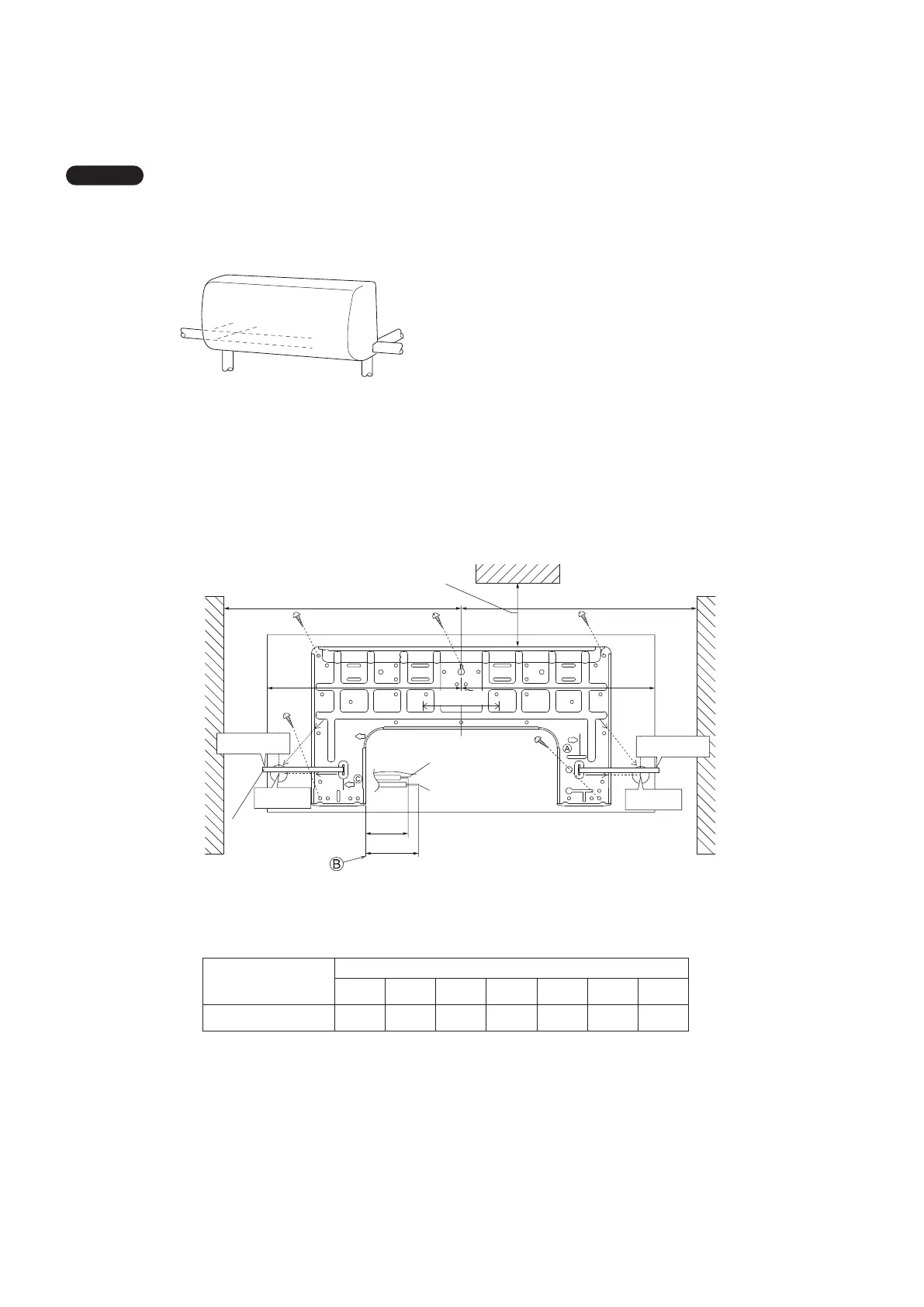

(1) Place the installation plate from the indoor unit on the wall at the location selected.
Type 15, 22, 28, 36
DISTANCE
TO PIPE
HOLE
CENTER
128 mm
DISTANCE TO
PIPE HOLE
CENTER 128 mm
PIPE HOLE CENTER
PIPE HOLE
CENTER
4
6
7
5
128 mm
128 mm
128 mm
241.5 mm
241.5 mm
Ceiling
Wall
Wall
More than
3
More than
2
More than
1
Measuring tape
Liquid tube
Gas tube
* Mount the installation plate with 5 screws completely.
Unit: mm
Type
Dimensions
1 2 3 4 5 6 7
15, 22, 28, 36 540 540 82 439 432 19 69
