Panasonic S-36MK2E5A - Page 161

Mini VRF SYSTEM
Test Run
7 - 7
7

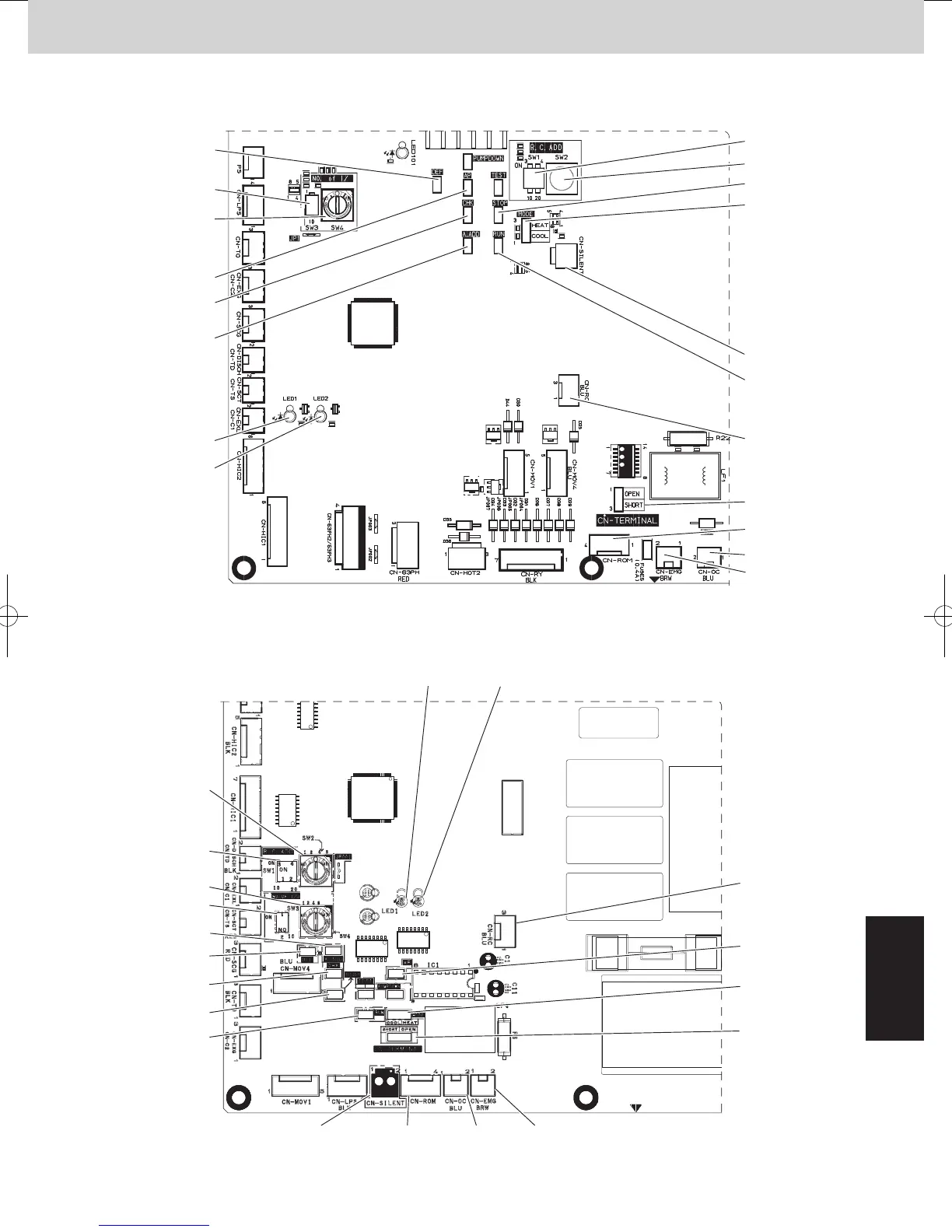

3. Main Outdoor Unit P.C.Board Setting
SW 2
LED 1 LED 2
CN-RC
AP
MODE
CN-TERMINAL
SW 1
SW 4
SW 3
A. ADD
DEF
CHK
STOP
RUN
CN-SILENT CN-ROM CN-OC CN-EMG
LED 2
LED 1
SW 2
SW 1
SW 4
SW 3
DEF
A. ADD
CHK
AP
STOP
RUN
MODE
CN-SILENT
CN-ROM
CN-OC
CN-EMG
CN-RC
CN-TERMINAL
U
U-4LE2E5, U-5LE2E5, U-6LE2E5
U-4LE2E8, U-5LE2E8, U-6LE2E8
