Step 1 Remove 3 screws each side and 5 screws at rear panel.
Step 2 Remove the Top Cabinet
Step 3 Remove T-bracket.
Step 4 Remove 2 screws each side of the inner chassis and a
screw at the rear panel. Turn locating pin 90°.
(Locating pin need not have to be bent back).
Step 5 Release the wires CN 300, 301, 302, 304 and 309.
Remove rear panel by pulling backward and lift rear panel assy
off.
Remove Front Panel

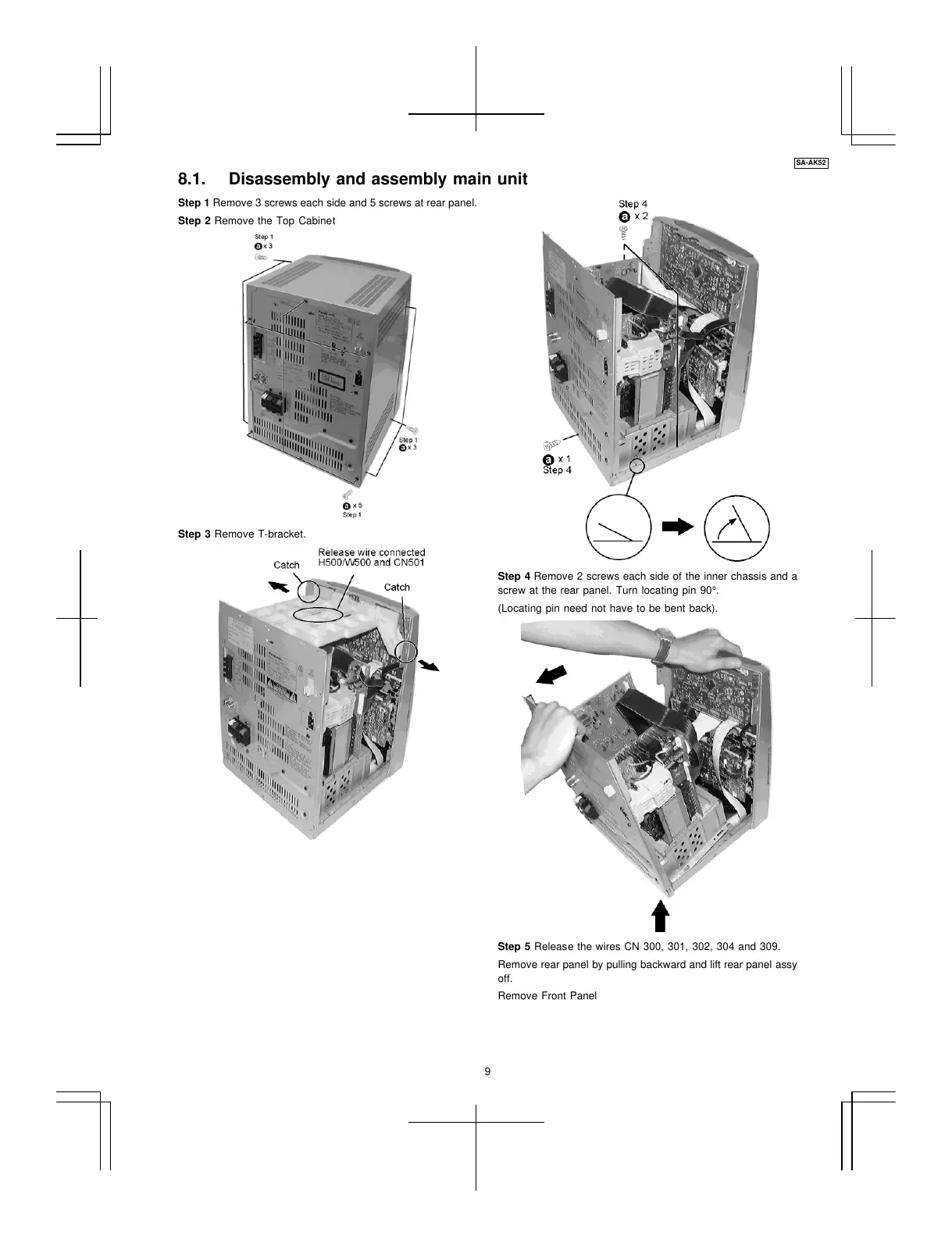

8.1. Disassembly and assembly main unit
9
SA-AK52
