Panasonic SA-PM10E - Page 27

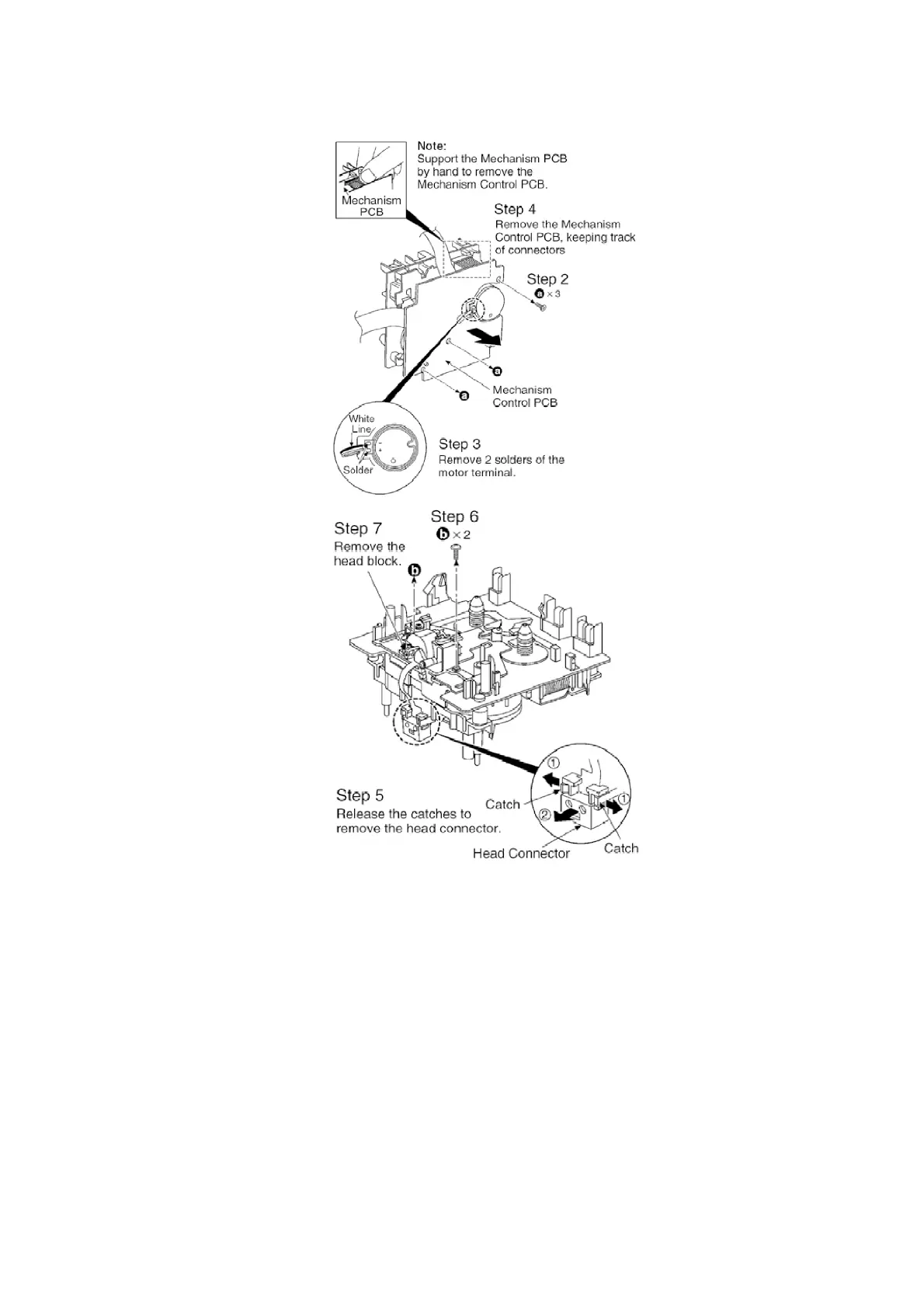

8.6. Procedure for Replacing Motor, Capstan Belt A, Capstan Belt B,
and Winding Belt (Cassette Mechanism Unit)
- Follow the (Step 1) - (Step 4) of Item 8.1.1.
- Follow the (Step 1) - (Step 5) of Item 8.1.2.
- Follow the (Step 1) - (Step 9) of Item 8.1.3.
- Follow the (Step 1) - (Step 3) of Item 8.1.4.
27
