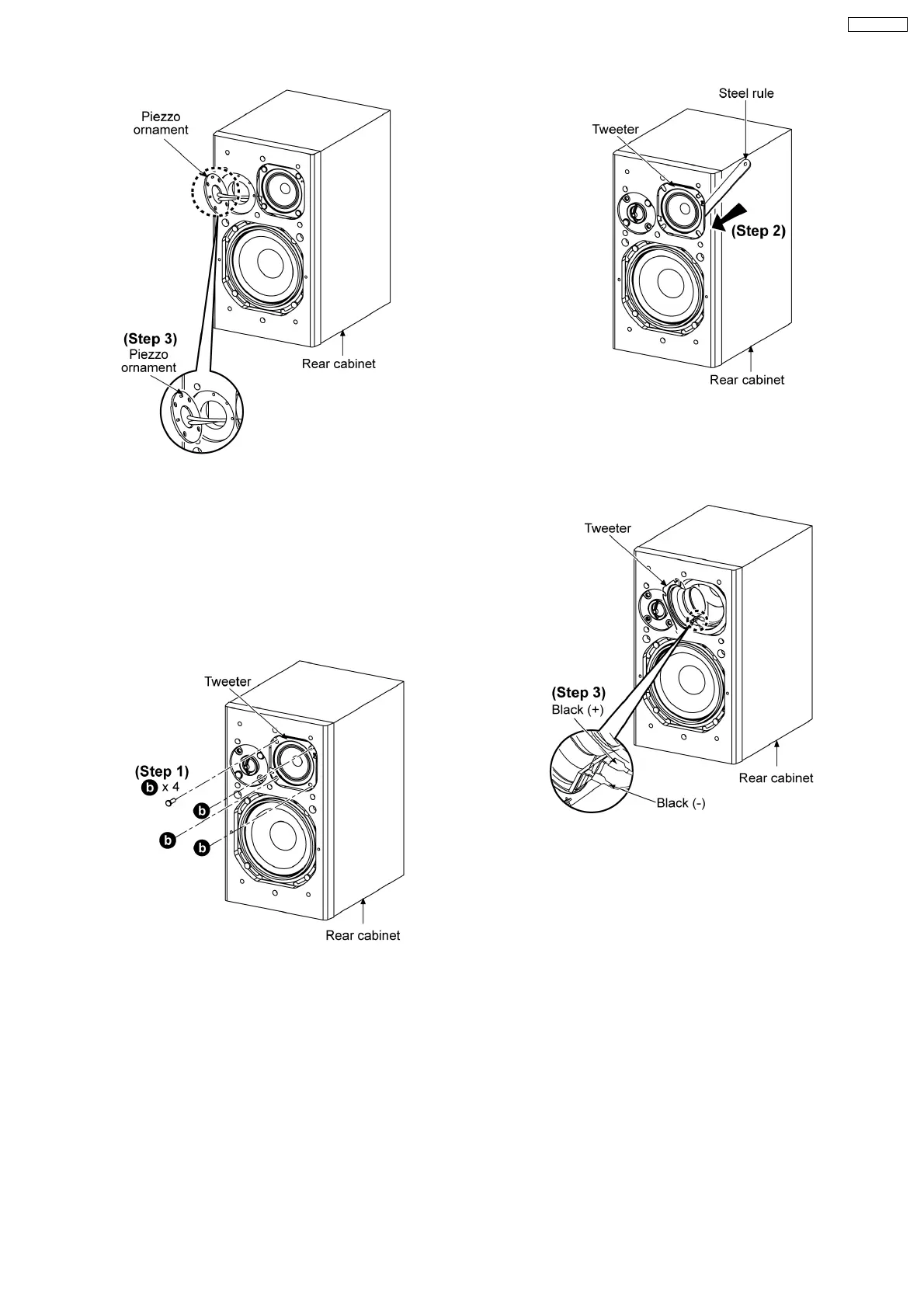

Step 3: Remove glue from piezzo ornament.
2.5. Disassembly of Tweeter
Follow (step 1) in item 2.2.
Follow (step 1) to (step 4) in item 2.3.
Step 1: Remove 4 screws.
Step 2: Insert the steel rule in between the tweeter and rear
cabinet as arrow shown.
Step 3: Detach the black (+) and black (-) wires.
7
SB-PM54GN
