NOTE :
1. Follow the reverse procedure to replace the CD Traverse Unit and
CD Tray.
2. Make sure that the 2 gear is in position shown above and the hole
on the right gear is align with the hole below it when replacing the
CD Traverse Unit and CD Tray.

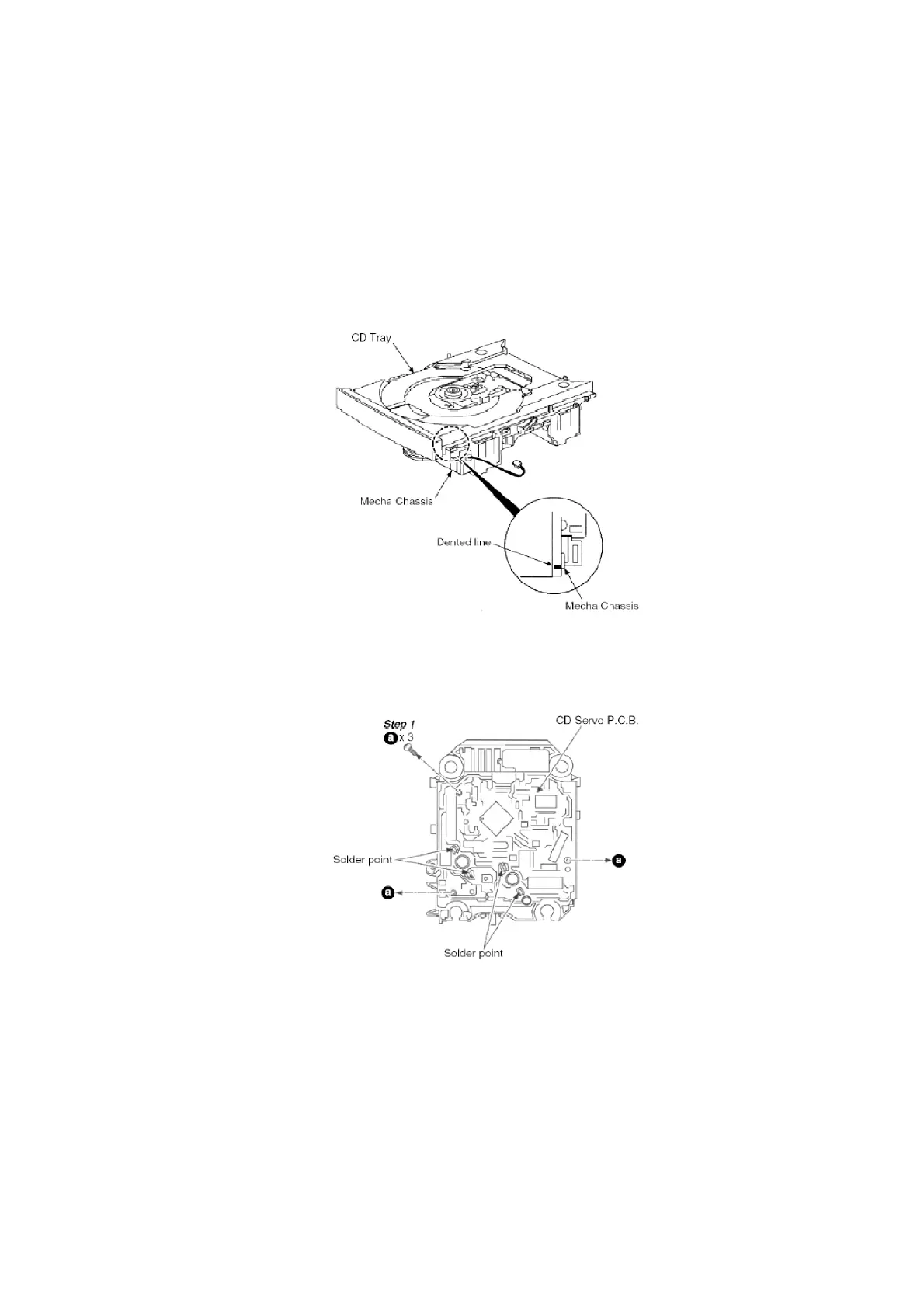

NOTE : When replacing the CD Tray, make sure the Dented line is at the position as shown.
8.3. Main Component Replacement Procedure
8.3.1. Replacement of the CD Servo P.C.B. and Optical Pick-up Unit.
Step 2 Desolder the 4 legs of 2 motors and flip over the CD Servo P.C.B.
Step 3 Remove the flexible cable at CN701.
- Removal of the flexible cable / Push the top of the connector in the
direction of the arrow 1 and then pull out the flexible cable in the
direction of the arrow 2.
22
