Panasonic SA-PM65MD - Page 25

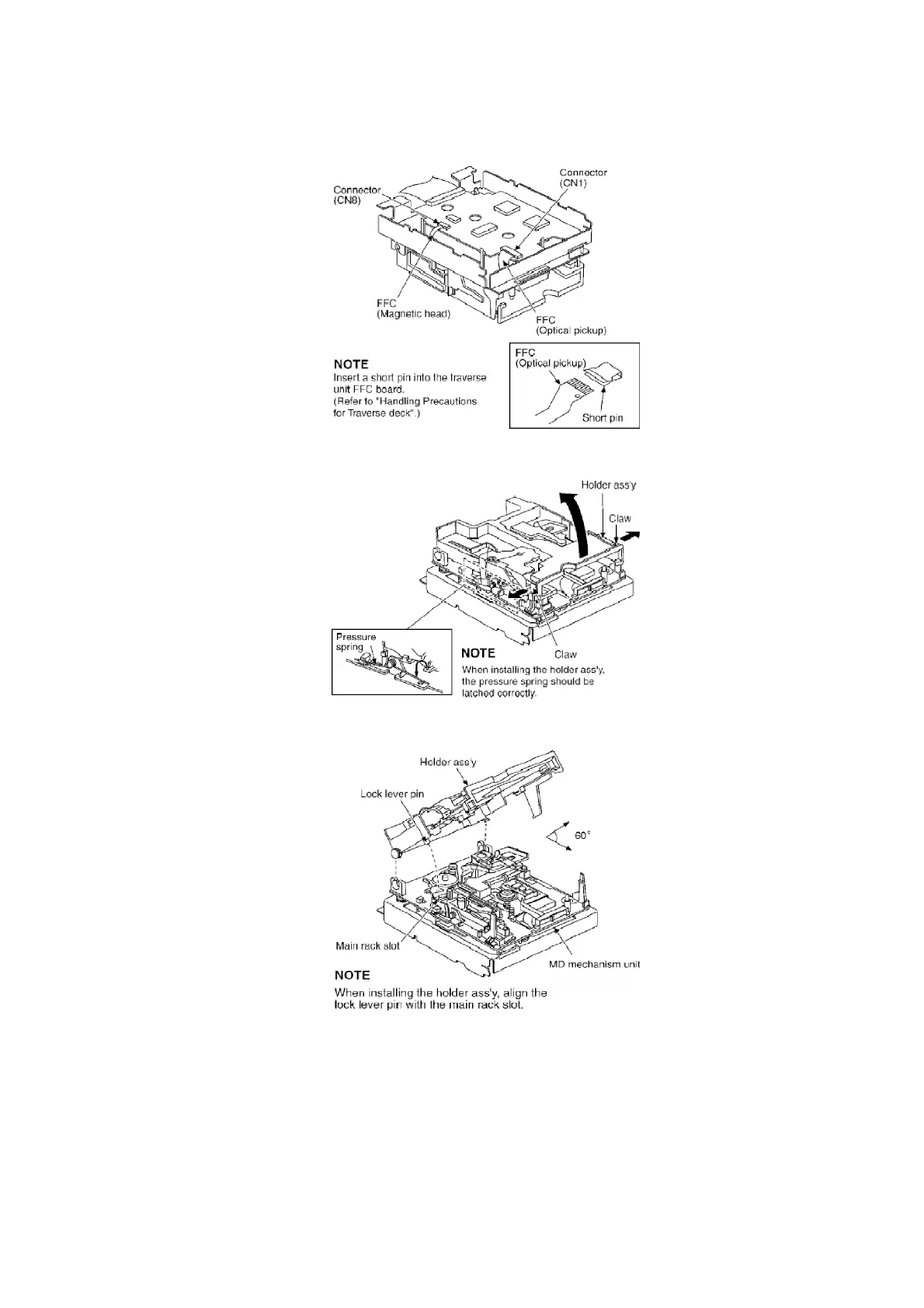

Step 1 Remove the 2 FFCs from the connector.
Step 2 Remove the pressure spring from latch.
Step 3 Release the 2 claws and then lift up the holder ass’y.
Step 4 Set the holder ass’y and MD mechanism unit at a 60 degree angle and then pull out the
holder ass’y.
25
