Panasonic SB-WA935

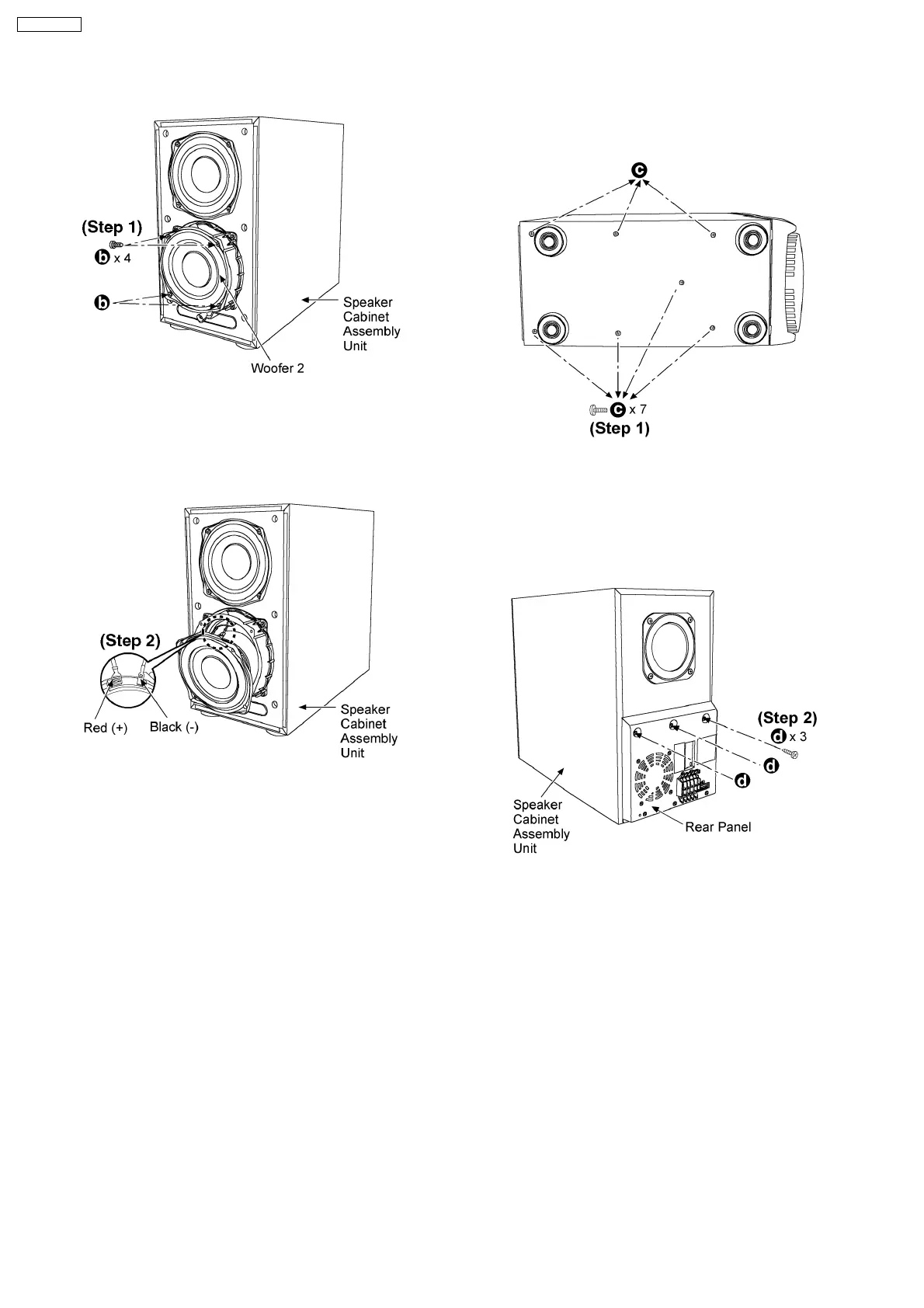

Step 1: Remove 4 screws.
Step 2: Remove the Woofer 2 by detaching the (+) red and (-)
black wires.
6.2.4. Disassembly of the Power Amp
Unit
Step 1: Lay the speaker unit as shown. Remove 7 screws from
the bottom of the Speaker Cabinet Assembly Unit.
Step 2: Remove 3 screws from the rear panel.
10
SB-WA935EE
