12_ _ _
Adhesive tape
FM indoor antenna _ , . ._
_4
d
:@
d)
®
holder
Gray (+)

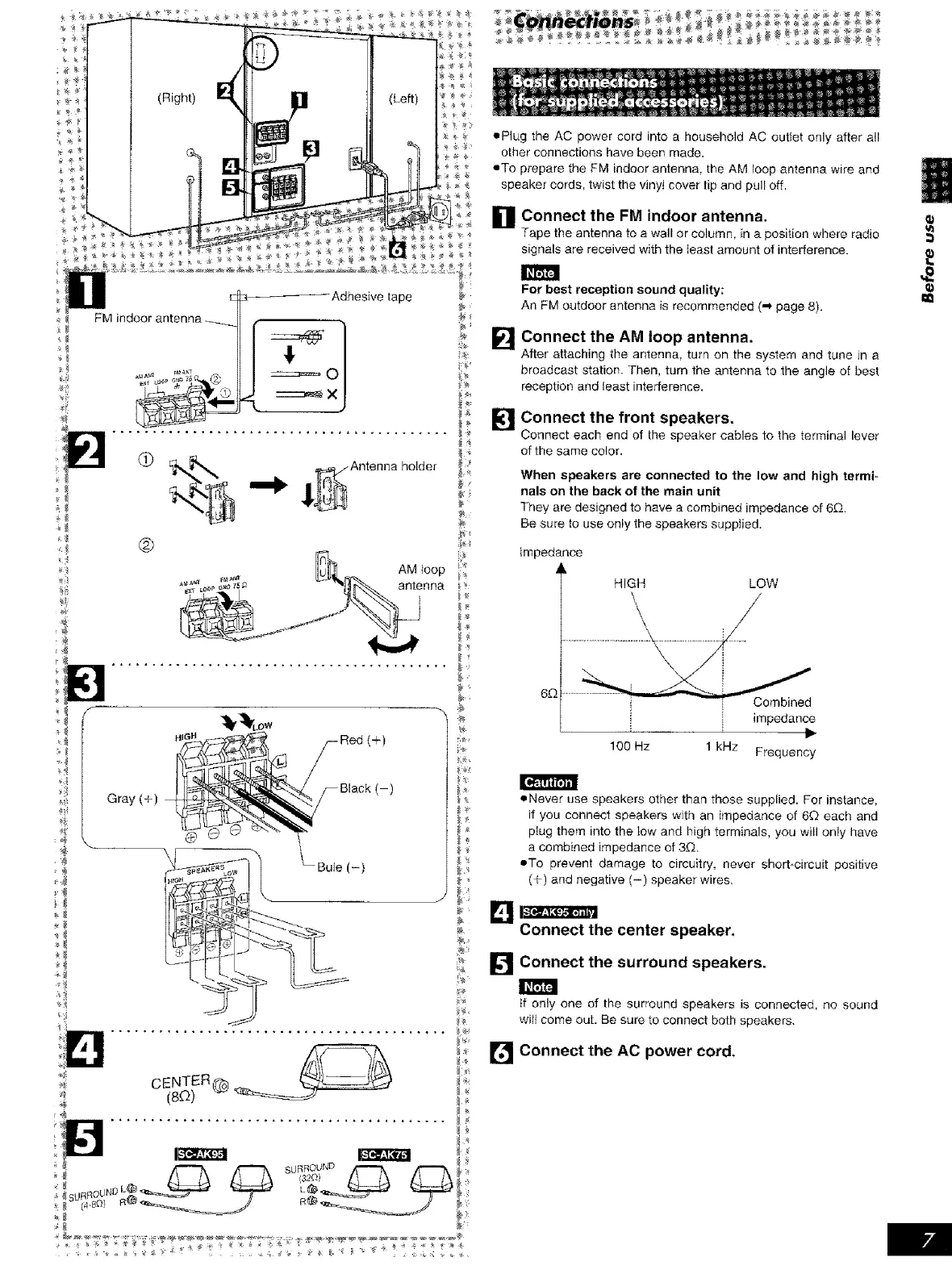

• Plug the AC power cord into a household AC outlet only after all
other connections have been made.
• To prepare the FM indoor antenna, the AM loop antenna wire and
speaker cords, twist the vinyl cover tip and pull off,
D Connect the FM indoor antenna.
Tape the antenna to a wall or column, in a position where radio
signals are received with the least amount of interference.
I]
For best reception sound quality;
An FM outdoor antenna is recommended (,_ page 8).
Connect the AM loop antenna.
After attaching the antenna, turn on the system and tune Jn a
broadcast station. Then, turn the antenna to the angle of best
reception and ]east interference.
lk-'ll
_ Connect the front speakers.
_ Connect each end of the speaker cables to the terminal lever
_ of the same color.
When speakers are connected to the low and high termi =
nals on the back of the main unit
They are designed to have a combined impedance of 6_Q.
Be sure to use only the speakers supplied.
Impedance
HIGH LOW
100 Hz 1 kHz
Combined
impedance
Frequency
• Never use speakers other than those supplied. For instance,
if you connect speakers with an impedance of 60 each and
plug them into the low and high terminals, you will only have
a combined impedance of 3D_.
• To prevent damage to circuitry, never shorbcircuit positive
(÷) and negative (-) speaker wires,
Connect the center speaker,
[] Connect the surround speakers.
_fonly one of the surround speakers is connected, no sound
wif_ come out. Be sure to connect both speakers.
[P_] Connect the AC cord,
power
18
To Next Page
