STEP 1: Preparing the speakers
[BT735] [BT330]
Caution
≥ Do not stand on the base. Be cautious when children are
near.
≥ When carrying speakers, hold the stand and base parts.
Preparation
≥ To prevent damage or scratches, lay down a soft cloth and
perform assembly on it.
≥ For wall mount, refer to page 42.
≥ Keep the screws out of reach of children to prevent
swallowing.
[BT735]
[BT330]

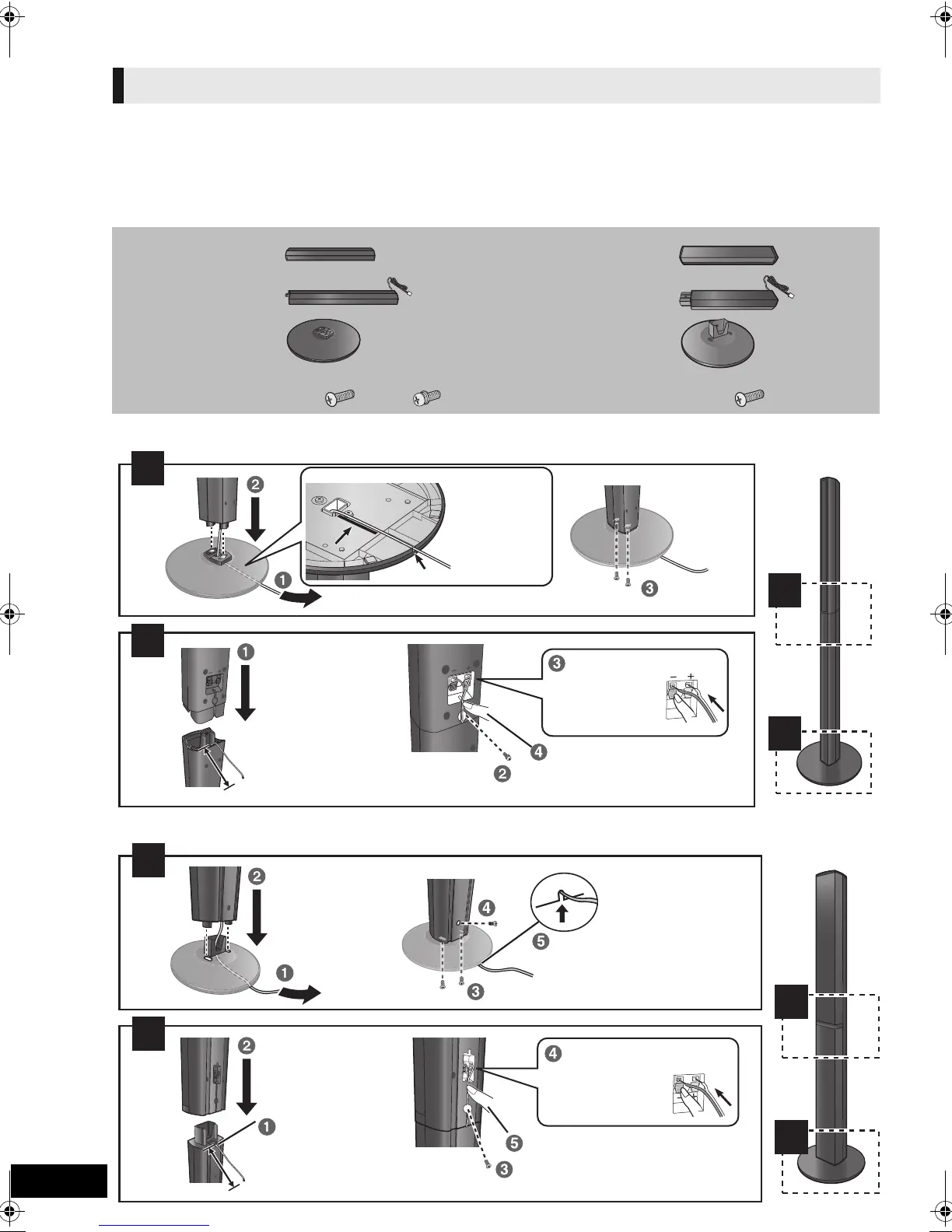

Assembling the speakers
[BT735]
2 Front speakers
2 Surround speakers
4 Stands (with cables)
4 Bases
8 Screws A
4 Screws B
[BT330]
2 Front speakers
2 Stands (with cables)
2 Bases
8 Screws
A B
Back of the base
Tighten
securely.
Insert the wire fully.
r: White
s: Blue line
Push!
Leave about 80 mm
Tighten securely.
Screw A
Screw B
Press into the groove.
Pull the cable
straight along
the line and
slide into the
groove.
Slide into the groove.
Tighten securely.
Insert the wire fully.
r: White
s: Blue line
Push!
Position the cable
between the ridges.
Leave about 120 mm
Press into the groove.
Tighten securely.
Screw
