14
VQT4Z41

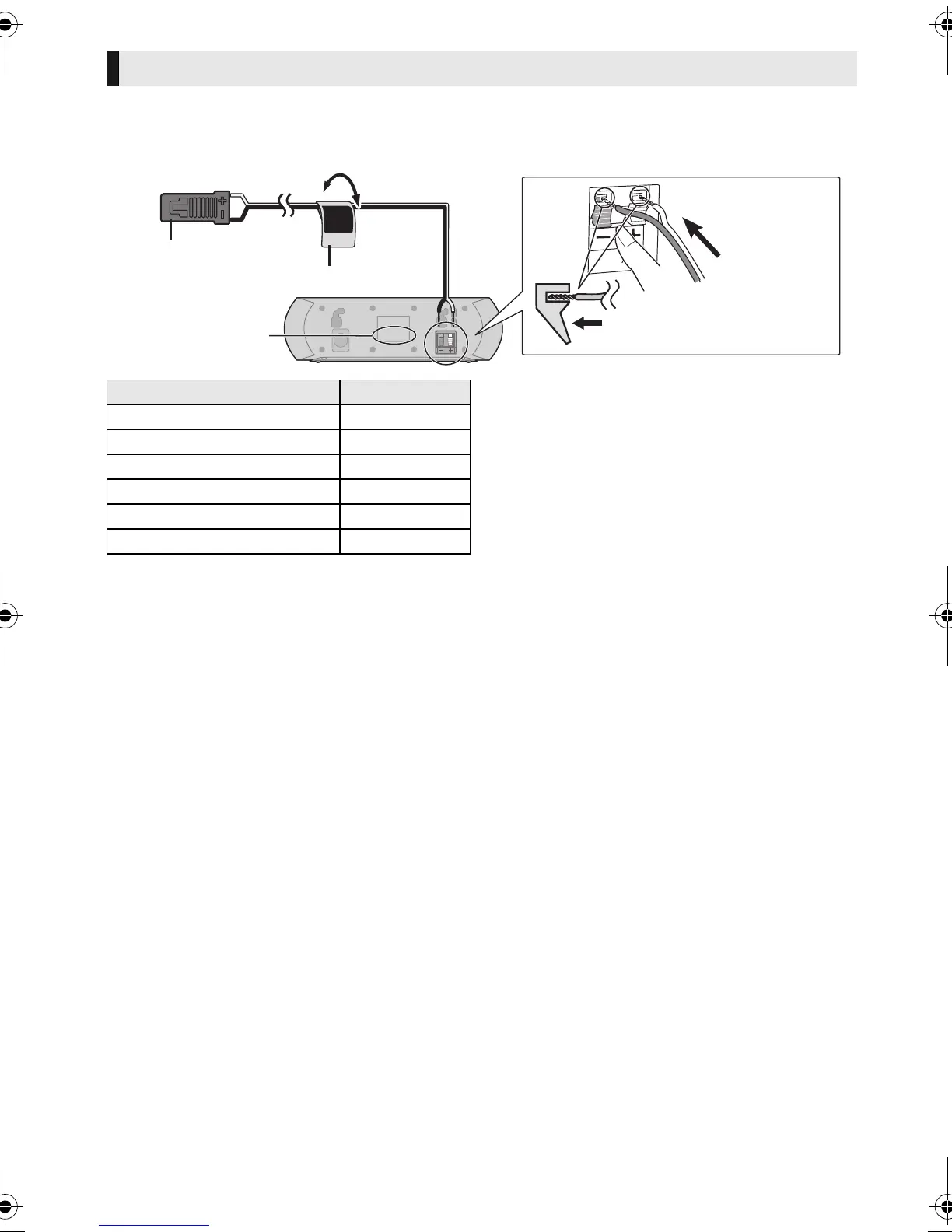

Attach the speaker cable sticker (supplied) and connect the speaker cables to the speakers.
e.g., Centre speaker
Connecting the speaker cables

CENTER
Push
r: White
s: Blue line
Speaker cable sticker (supplied)
Connector
Speaker indication
Speaker cable sticker Connector
1 FRONT Lch 1 White
2 FRONT Rch 2 Red
3 SURROUND Lch 3 Blue
4 SURROUND Rch 4 Grey
5 CENTER 5 Green
6 SUBWOOFER 6 Purple
