Q
,2
m
13/with S-VIDEO terminal
(not included)
Rear panel of this unit
S-VIDEO
IN
Laser disc player
(not included)
AUDIO
L_ OUT
Rear panel of this unit
Video cassette recorder
(not included)
[ ]
AUDIO
OUT
Rear panel of this unit
Record player
(notincluded)
Rear panel of this unit

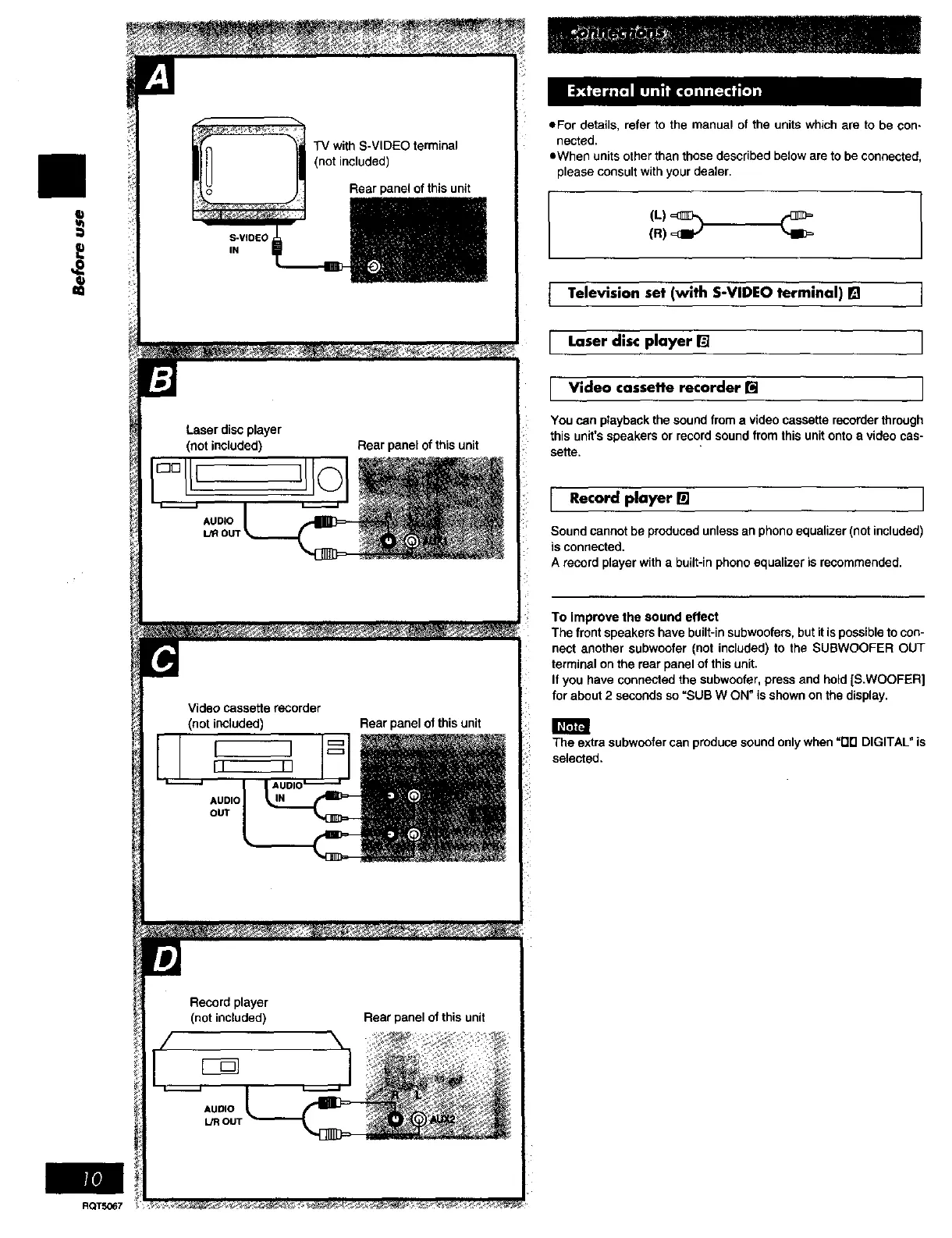

• For details, refer to the manual of the units which are to be con-
nected.
eWhen units other than those described below are to be connected,
please consult with your dealer.
(R)=_ "_
Television set (with S-VIDEO terminal) [] I
[ Laser disc player [] ]
[ Video casseffe recorder rd ]
Youcan playbackthesoundfrom a videocassetterecorderthrough
this unit'sspeakersorrecordsoundfrom thisunitontoa videocas-
sette.
[ Record player [] ]
Soundcannotbe producedunlessan phoneequalizer(notincluded)
is connected,
A recordplayerwitha built-inphonoequalizerisrecommended.
To improve the sound effect
The front speakers have built-in subwoofers, but it ispossible to con-
nect another subwoofer (not included) to the SUBWOOFER OUT
terminal on the rear panel of this unit.
If you have connected the subwoofer, press end hold {S.WOOFER]
for about 2 seconds so "SUB W ON" is shown on the display.
The extra subwoofer can produce sound only when "rio DIGITAL" is
selected.
