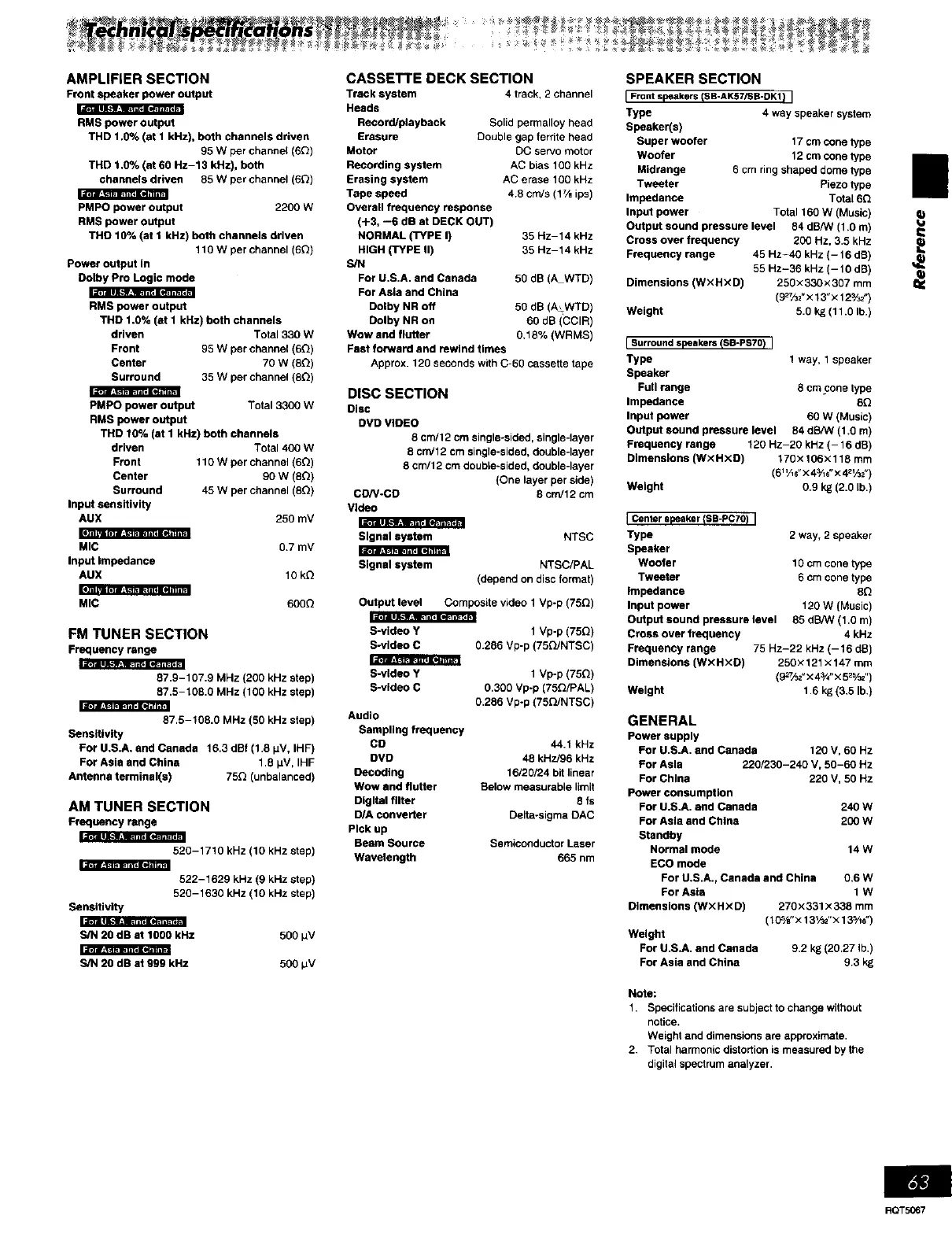

AMPLIFIER SECTION
Front speaker power output
RMS power output
THD 1,0% (at 1 kHz), both channels driven
95 W per channel (6£_)
THD 1.0% (at 60 Hz-13 kHz), both
channels driven 85 W per channel (6_)
, , H **
PMPO power output 2200 W
RMS power output
THD I(P,_ (at 1 kHz) both channels driven
110 W per channel (6D)
Power output in
Dolby Pro Logic mode
RMS power output
THD 1.0% (at I kHz) both channels
driven Total 330 W
Front 95 W per channel (6Q)
Center 70 W (8Q)
Surround 35 W per channel (8_)
PMPO power output Total 3300 W
RMS power output
THD 10% (at 1 kHz) both channels
driven Total 400 W
Front 110 W per channel (6Q)
Center 90 W (aQ)
Surround 45 W per channel (aQ)
Input sensitivity
AUX 250 mV
MIC 0.7 mV
Input Impedance
AUX 10 kQ
[OT_IBi I?_F_F_TI_ Beh'lT_
MIC 600Q
FM TUNER SECTION
Frequency range
87.9-107.9 MHz (200 kHz step)
87.5-108.0 MHz (100 kHz step)
i =_33b._.. ml, [, = _ ,1=,. =
87.5-108.0 MHz (50 kHz step)
Sensitivity
For U.S.A, and Canada 16,3 dBf (1,8 pV, IHF)
For Asia and China 1,8 !iV, IHF
Antenna terminal(s) 75_ (unbalanced)
AM TUNER SECTION
Frequency range
520-1710 kHz (10 kHz step)
522-1629 kHz (9 kHz step)
520-1630 kHz (10 kHz step)
Sensitivity
S/N 20 dB at 1000 kHz 500 _V
S/N 20 dB at 999 kHz 500 _V
CASSETTE DECK SECTION
Track system 4 track, 2 channel
Heads
Record/playback Solid permalloy head
Erasure Double gap ferdte head
Motor DC servo motor
Recording system AC bias 100 kHz
Erasing system AC erase 100 kHz
Tape speed 4.8 crn/s (1% ips)
Overall frequency response
(+3, --6 dB at DECK OUT)
NORMAL (TYPE I) 35 Hz-14 kHz
HIGH (TYPE 5) 35 Hz-14 kHz
S/N
For U.S.A. and Canada 50 dB (A WTD)
For Asia and China
Dolby NR off 50 dS (A_ WTD)
Dolby NR on 60 dB (CCIR)
Wow and flutter 0.18% (WRMS)
Fast forward and rewind times
Approx. 120 seconds with C-60 cassette tape
DISC SECTION
Disc
DVD VIDEO
8 cm/12 cm single-sided, single-layer
8 cm/12 cm single-sided, double-layer
8 cm/12 cm double-sided, double-layer
(One layer per side)
CD/V-CD 8 cm/12 cm
Video
Signal system NTSC
Signal system NTSC/PAL
(depend on disc format)
Output level Composite video 1 Vp-p (75_)
, =, ** , •
S-video Y 1 Vp-p (75Q)
S-video C 0.286 Vp-p (75Q/NTSC)
S-video Y 1 Vp-p (75Q)
S-video C 0.300 Vp-p (75_/PAL)
0.286 Vp-p (75_3/NTSC)
Audio
Sampling frequency
CO 44.1 kHz
DVD 48 kHz/96 kHz
Decoding 16/20/24 bit linear
Wow and flutter Below measurable limit
Digital fiRer 8 fs
D/A converter Delta-sigma DAC
Pick up
Beam Source Semiconductor Laser
Wavelength 665 nm
SPEAKER SECTION
Front s kers SB-AK57/SB-DK1
Type 4 way speaker system
Speaker(s)
Super woofer 17 cm cone type
Woofer 12 cm cone type
Midrange 6 cm ring shaped dome type
Tweeter Piezo type
Impedance Totat 6Q
Input power Total 160 W (Music)
Output sound pressure level 84 dB/W (1.0 m)
Cross over frequency 200 Hz, 3.5 kHz
Frequency range 45 Hz-40 kHz (-16 dB)
55 Hz-36 kHz (-10 dB)
Dimensions (W×HXD) 250×330×307 mm
(9_%_"x 13" x 12_")
Weight 5.0 k4_(t 1.0 lb.)
Surrounds akers SB-PST0
Type 1 way, 1 speaker
Speaker
Full range 8 cm cone type
Impedance 8_
Input power 60 W (Music)
Output sound pressure level 54 dB/V_ (1 .Om)
Frequency range 120 Hz-20 kHz (- 16 dB)
Dimensions (WXHXD) 170×106x118 mm
(6"/,_"X4_A_"X4_/_. ")
Weight 0.9 I<g(2.0 lb.)
Centers aker SB-PC70
Type 2 way, 2 speaker
Speaker
Woofer 10 cm cone type
Tweeter 6 cm cone type
Impedance 8_
Input power 120 W (Music)
Output sound pressure level 85 dB/W (1,0 m)
Cross over frequency 4 kHz
Frequency range 75 Hz-22 kHz (-16 dB)
Dimensions (WXH×D) 250×121×147 mm
(9_/_" x 4%" x 5_/-_',)
Weight t .6 I_ (3.5 lb.)
GENERAL
Power supply
For U.S.A. and Canada 120 V, 60 Hz
For Asia 220/230-240 V, 50-60 Hz
For China 220 V, 50 Hz
Power consumption
For U.S.A. and Canada 240 W
For Asia and China 200 W
Standby
Normal mode 14 W
ECO mode
For U.S.A., Canada and China 0.6 W
For Asia 1 W
Dimensions (W× HX D) 270x331×338 mm
(l O%'x13 _/_z"×13%_")
Weight
For U.S.A. and Canada 9.2 k_ (20.27 lb.)
For Asia and China 9,3 k8
Note:
1. Specifications are subject to change without
notice+
Weight and dimensions are approximate.
2. Total harmoctc distortion is measured by the
digital spectrum analyzer.
I!
I)
P
RQT5067
