9
RQT7380

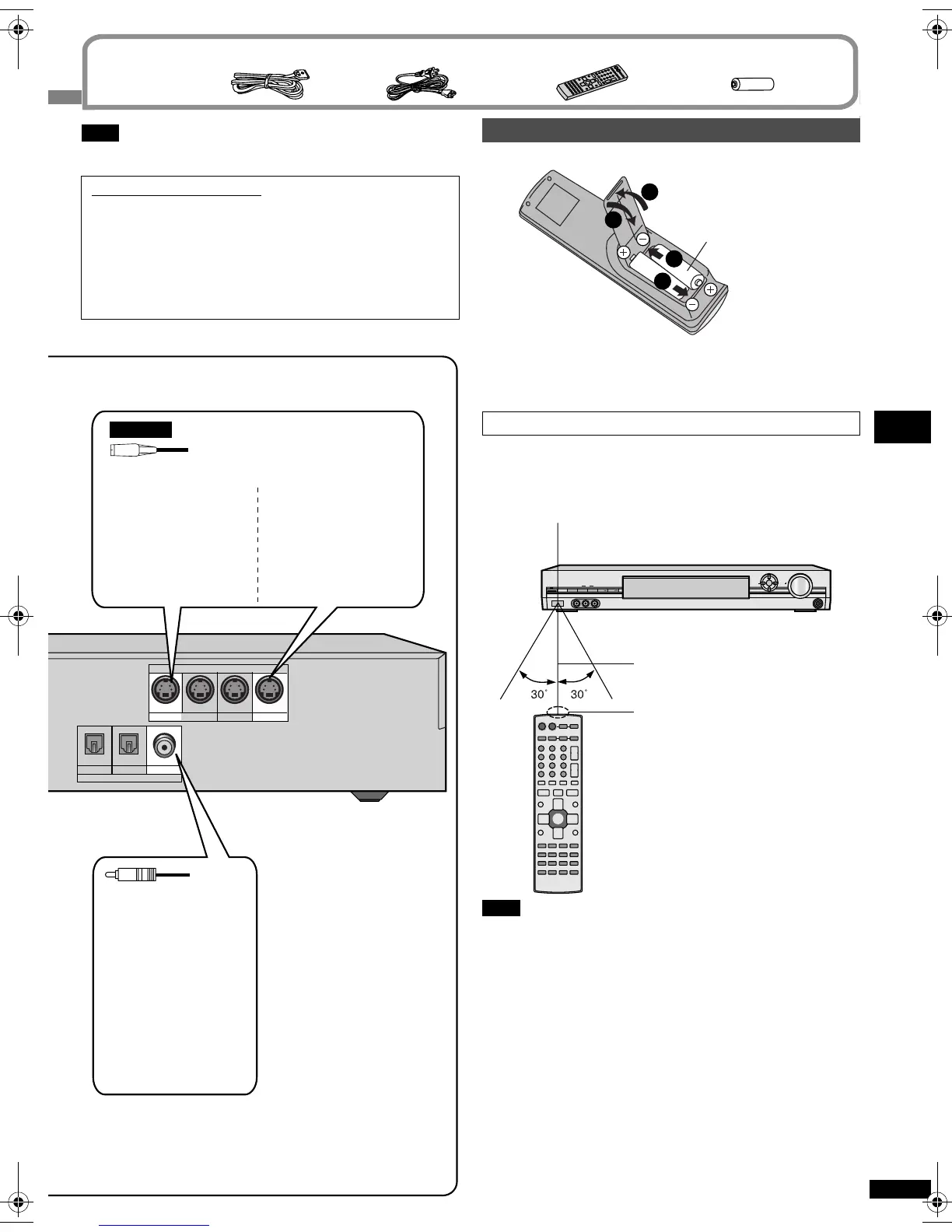

Home theater connections Setup
OPT 1 OPT 2
COAXIAL
(TV) IN (DVR) IN (DVD) IN
DIGITAL IN
S-VIDEO
MONITOR OUT
IN IN IN
TV
DVR / VCR1
DVD
SC-HT07
Used to connect to the
S-VIDEO IN terminal on
a television.
Coaxial cable (not
included)
Used to connect to the
DIGITAL COAXIAL
OUT terminal on a DVD
player to input audio
digital signals.
Used to connect to the
S-VIDEO OUT terminal
on a DVD player.
S-Video cable (not included)
3
2
2
1
R6/LR6, AA, UM-3
VOLUME
INPUT SELECTOR
MUSIC
PHONES
DOWN
UP
AV/MOVE
TUNE TUNE
^
SFC
VIDEO IN
L AUDIO IN R
VCR 2
8
POWER
MULTI CONTROL
ENTER
TOP MENU
PREV /
NEXT /
RETURN
Remote control signal sensor
Transmission window
7 meters (23 feet)
The remote control
• Insert so the poles (+ and –) match those in the remote
control.
• Do not use rechargeable type batteries.
Aim at the sensor, avoiding obstacles, at a maximum range of
7 m (23 feet) directly in front of the unit.
Use
Note
• Keep the transmission window and the unit’s sensor free from
dust.
• Operation can be affected by strong light sources, such as
direct sunlight, and the glass doors on cabinets.
Note
• Use digital connection to enjoy Dolby Digital or DTS.
Notes on digital input
This unit can decode the following signals:
• Dolby Digital, DTS
• PCM, including PCM with sampling frequencies of 96
or 88.2 kHz
It cannot decode:
• Other digital signals, such as MPEG
• Dolby Digital RF signals from a laser disc player
(x 1) (x 1)
(x 1)
(x 2)
Supplied
accessories
System cable AC power supply cord Remote control transmitter Batteries
SC-HT07PP-EN.fm Page 9 Friday, May 7, 2004 3:41 PM
