8
RQT7380

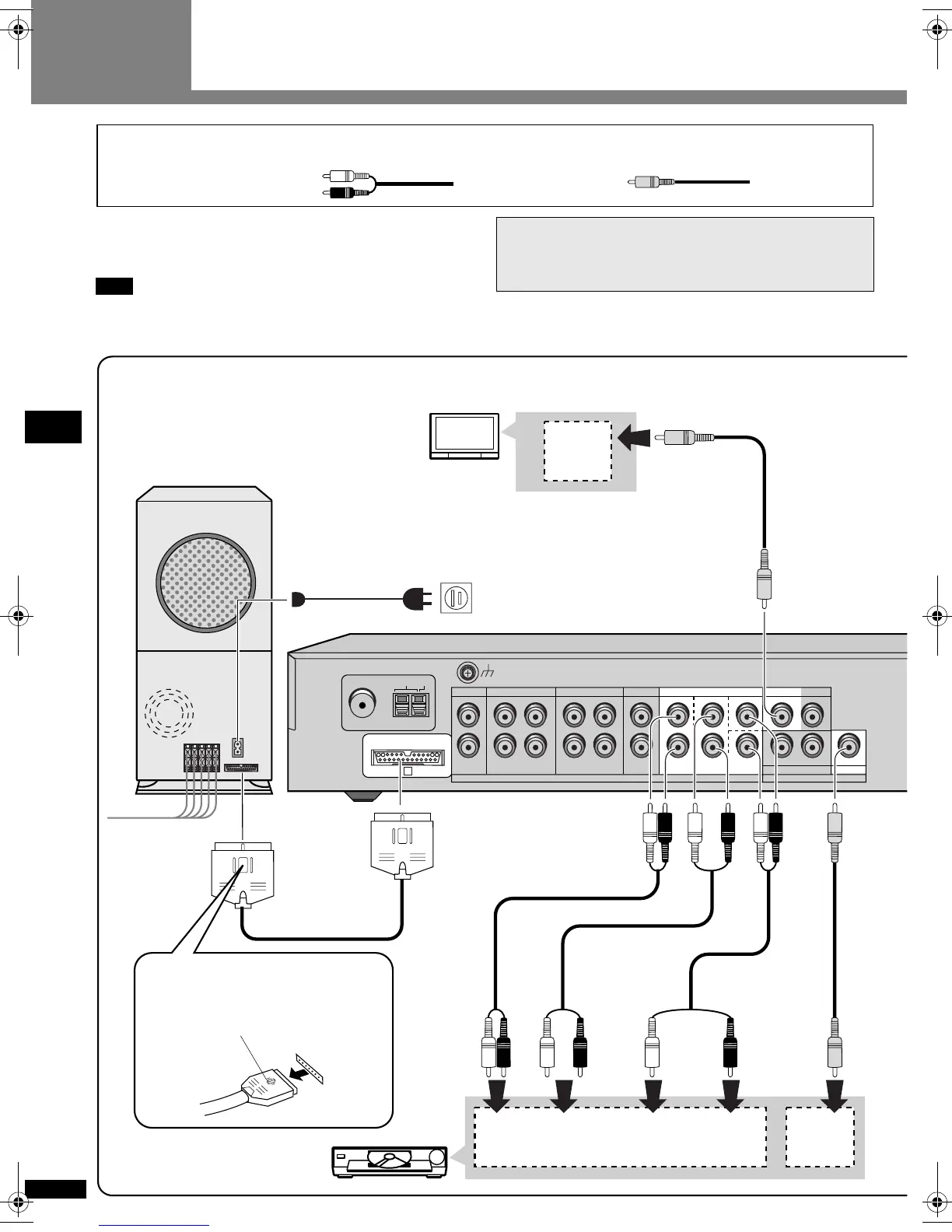

Home theater connections Setup
LOOP ANT
GND
CD TAPE DVR / VCR1 TV DVD / DVD 6CH TV
IN
REC(OUT)
PLAY(IN)
OUT IN IN FRONT
SURROUND
SUBWOOFER
DVR / VCR1 DVD
OUT IN IN
CENTER
L
R
L
R
L
R
L
R
L
R
L
R
AUDIO VIDEO
TO SB-WA07
A
FM ANT AM ANT
75 Ω
LOOP
EXT
MONITOR OUT
IN
FRONT
(L, R)
SURROUND
(L, R)
SUBWOOFER CENTER
AUDIO OUT
VIDEO
OUT
VIDEO
IN
AC IN ~
Subwoofer
TV (Monitor)
DVD player
To disconnect
Press the catch and pull out.
Catch
AC power supply cord (included)
Connect this cord after all other cables are connected.
Household AC outlet
(AC 120 V/60 Hz)
System cable (included)
Stereo connection cable
(not included)
Video connection cable
(not included)
Left
Right
Other
accessories
Turn off all components before making any connections.
To connect equipment, refer to the appropriate operating
instructions.
Note
The included AC power supply cord is for use with this unit only.
Do not use it with other equipment.
Changing the digital input settings
You can change the input settings for the digital terminals if
necessary. Note the equipment you have connected to the
terminals, then change the settings (
è page 21).
2
Home theater connections
SC-HT07PP-EN.fm Page 8 Friday, May 7, 2004 3:41 PM
