Making the connections
Switch off all equipment before connection.
Components and cables are sold separately.
Connect the AC mains lead only after all the other connections have been made.

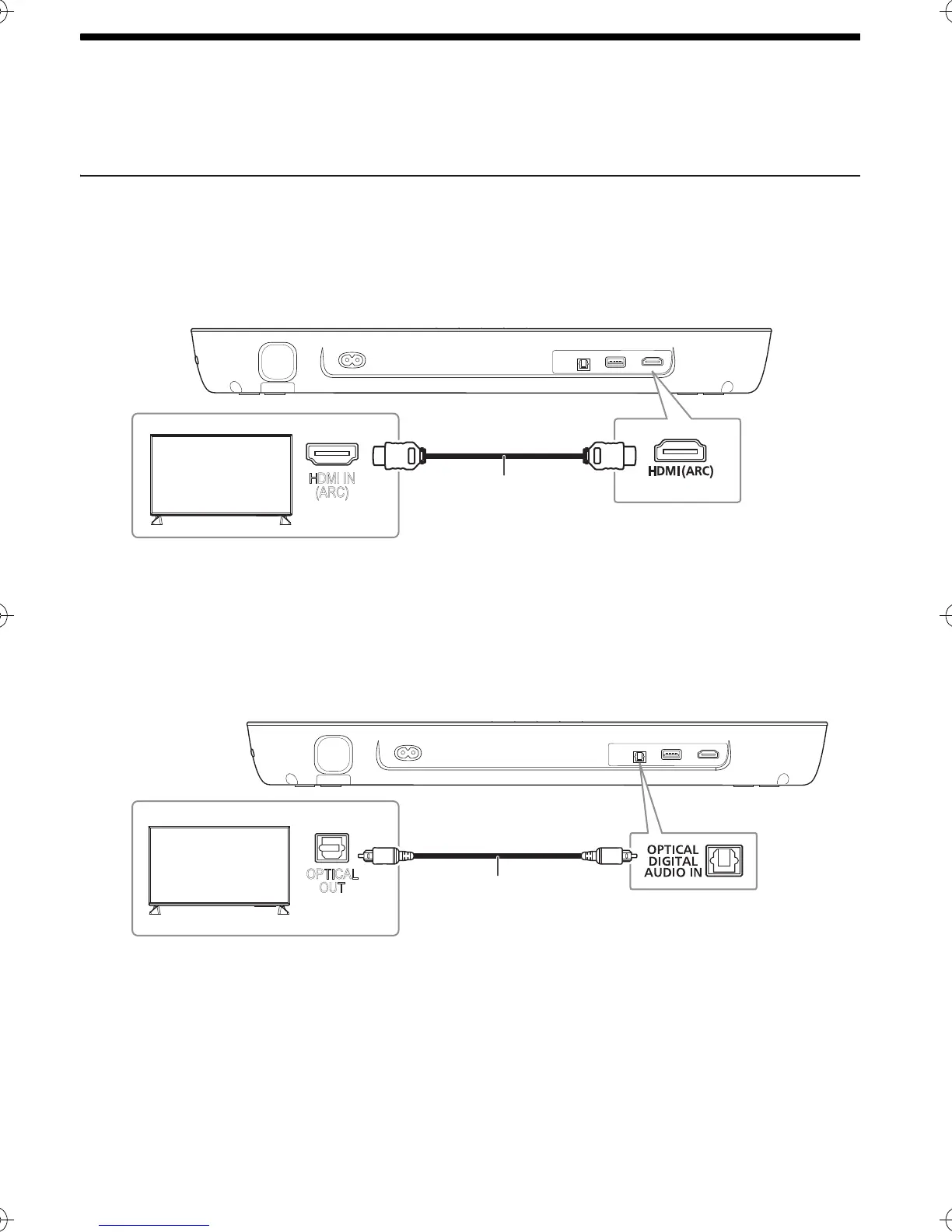

Connecting the TV
█ Connect an ARC compatible TV
Connect to the ARC compatible terminal of the TV with an ARC compatible high speed HDMI cable.
ARC (Audio Return Channel)
ARC is an HDMI function that lets you enjoy both sound and TV pictures with one HDMI cable, the optical
digital audio cable that is usually required in order to listen to sound from a TV is no longer required.
█ Connect a non-ARC compatible TV
When connecting the optical digital audio cable, observe the orientation and insert the tip correctly into
the terminal.
HDMI IN
(ARC)
TV
HDMI cable
OPTICAL
OUT
TV
Optical digital audio cable
TQBJ2086_en.fm Page 9 Wednesday, December 27, 2017 2:30 PM
offset printing

Panasonic SC-HTB250 Specifications

General

Audio decoders	DTS Digital Surround, Dolby Digital
RMS rated power	120 W
Audio output channels	2.1 channels
Audio Return Channel (ARC)	Yes
Number of woofer drivers	1
Full-range driver diameter	100 mm
Soundbar speaker RMS power	80 W
Number of full-range drivers	4
Full-range driver diameter (imperial)	2 \
Bluetooth version	2.1+EDR
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired & Wireless
Digital audio coaxial in	-
Subwoofer connectivity	Wireless
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	15 W
FM radio	No
Product color	Black
Docking connector type	Not supported
Subwoofer driver diameter (imperial)	5.5 \
Harmonized System (HS) code	85182200

Weight and Dimensions

Depth	135 mm
Width	450 mm
Height	51 mm
Soundbar weight	1600 g
Subwoofer depth	307 mm
Subwoofer width	97 mm
Subwoofer height	451 mm
Subwoofer weight	4400 g
