RQT9914
15
Additionally required accessories (commercially available)
≥Fall prevention cord ...................................................................................................................... k 2
≥Screw eyes (to attach the fall prevention cord) ............................................................................. k 2
≥ Use commercially available screws that are capable of supporting over 26 kg.
≥ Use a cord that is capable of supporting over 26 kg (with a diameter of about 1.5 mm).

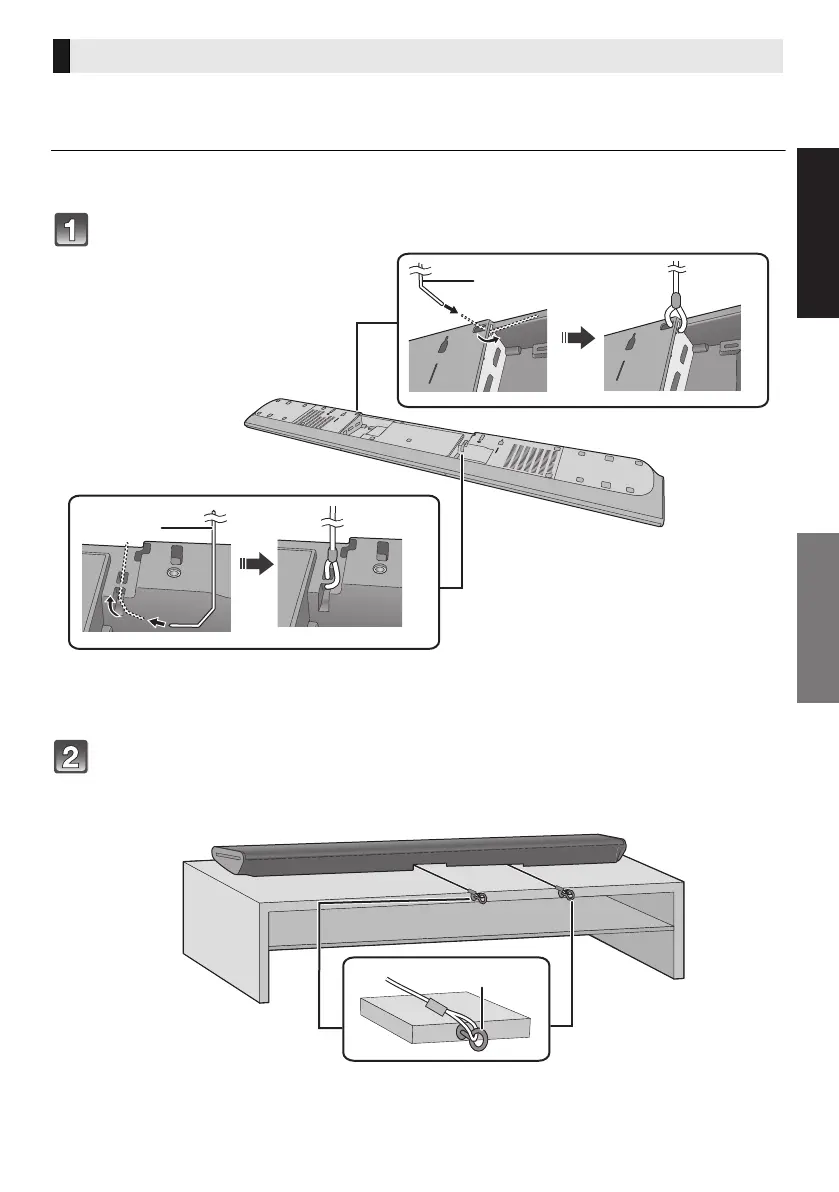

Attach the cord to the main unit.
A Cord
§
§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 5 mm apart from the tip, at an angle of 45
o
(as
illustrated above).
Place the main unit in the desired position and attach each cord onto the
rack or table.
≥ Make sure that the slack of the cord is minimal.
≥ Do not lean the main unit against the TV or wall.
B Screw eye
≥Attach at a position capable of supporting over 26 kg.
≥Depending on the placement of the main unit, the screwing position of the screw eye may differ.
When placing the main unit in a rack or on a table
SC-HTB580EG_RQT9914-H.book 15 ページ ２０１４年２月２７日 木曜日 午前１０時１６分
