Panasonic SC-HTB580

Before use
RQT9914
7
1 HDMI AV IN (BD/DVD) terminal (> 10)
2 HDMI AV OUT (TV (ARC)) terminal (ARC
compatible) (> 9, 10)
3 OPTICAL DIGITAL AUDIO IN (TV) terminal
(> 10)
4 Ir SYSTEM terminal (> 11, 12)
5 USB port (for service use only)
6 AC IN terminal (> 12)
7 Active subwoofer on/off button (> 19)
§ The I/D SET button is only used when the main unit is not paired with the active subwoofer. (> 28)

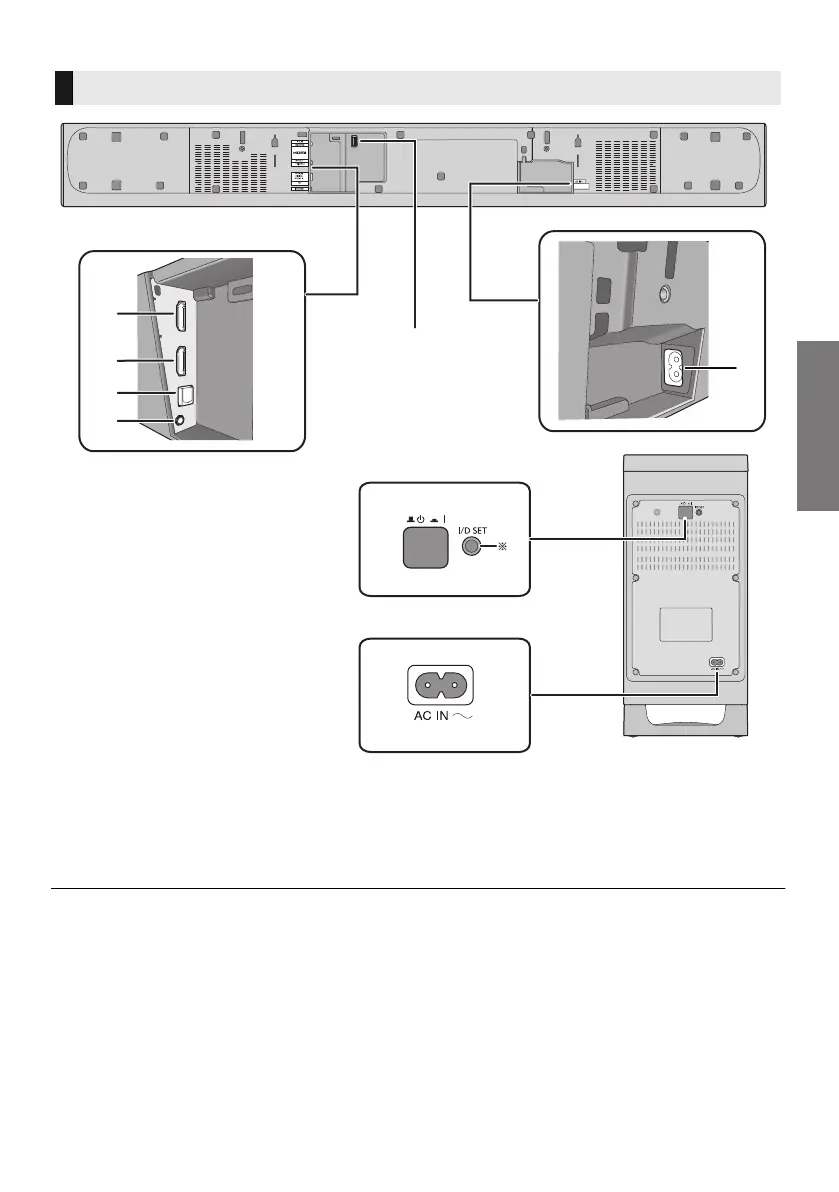

This system (Rear)
7
6
2
1
3
4
5
6
Main unit
Active subwoofer
