14
TQBJ2216
Attaching the main unit to a wall
The main unit can be wall mounted using the supplied wall mount brackets, etc. Make sure that the screw
used and the wall are strong enough to support the weight of at least 30 kg.
The screws and other items are not supplied as the type and size will vary with each installation.
• Refer to step 3 for details about the required screws.
• Be sure to attach the fall prevention cord as a secondary safety measure.
Additionally required accessories (commercially available)
Screws for wall mounting (x2)
Fall prevention cord (x2)
Screw eyes (to attach the fall prevention cord) (x2)
Note:
Use a cord that is capable of supporting over 30 kg (with a diameter of about 1.5 mm).
1 Attach the cord to the main unit.
Perform step 1 in “Placing the main unit in a rack or on a table”. (~12)

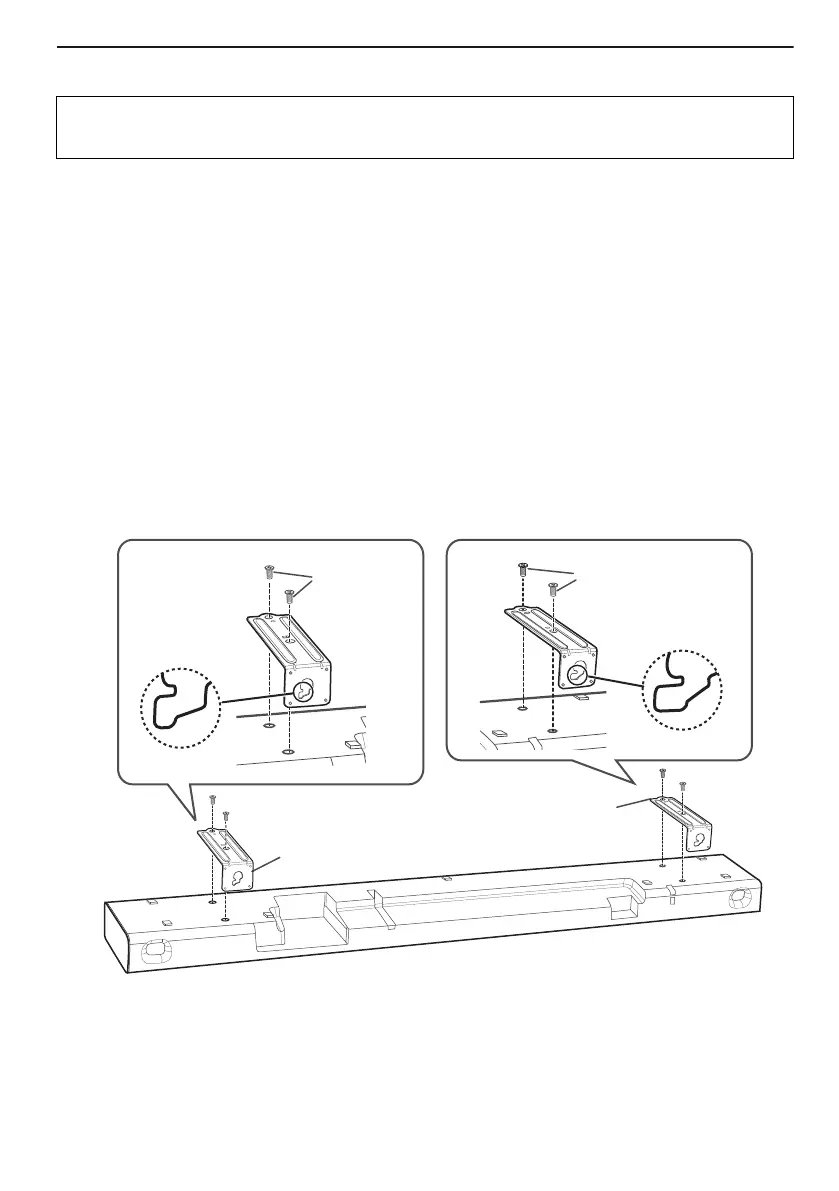

2 Attach the wall mount brackets to the main unit.
Note:
Handle the main unit with care after you have attached the wall mount brackets. To prevent damage or scratches, remove the
wall mount brackets if you want to put the main unit in a rack or on a table.
WARNING:
To prevent injury, this unit must be securely attached to the wall in accordance with the installation
instructions.
Screw
(supplied)
Screw (supplied)
Wall mount bracket
(left) (supplied)
Wall mount bracket
(right) (supplied)
htb600.400_TQBJ2216_en.fm Page 14 Thursday, May 14, 2020 2:22 PM
