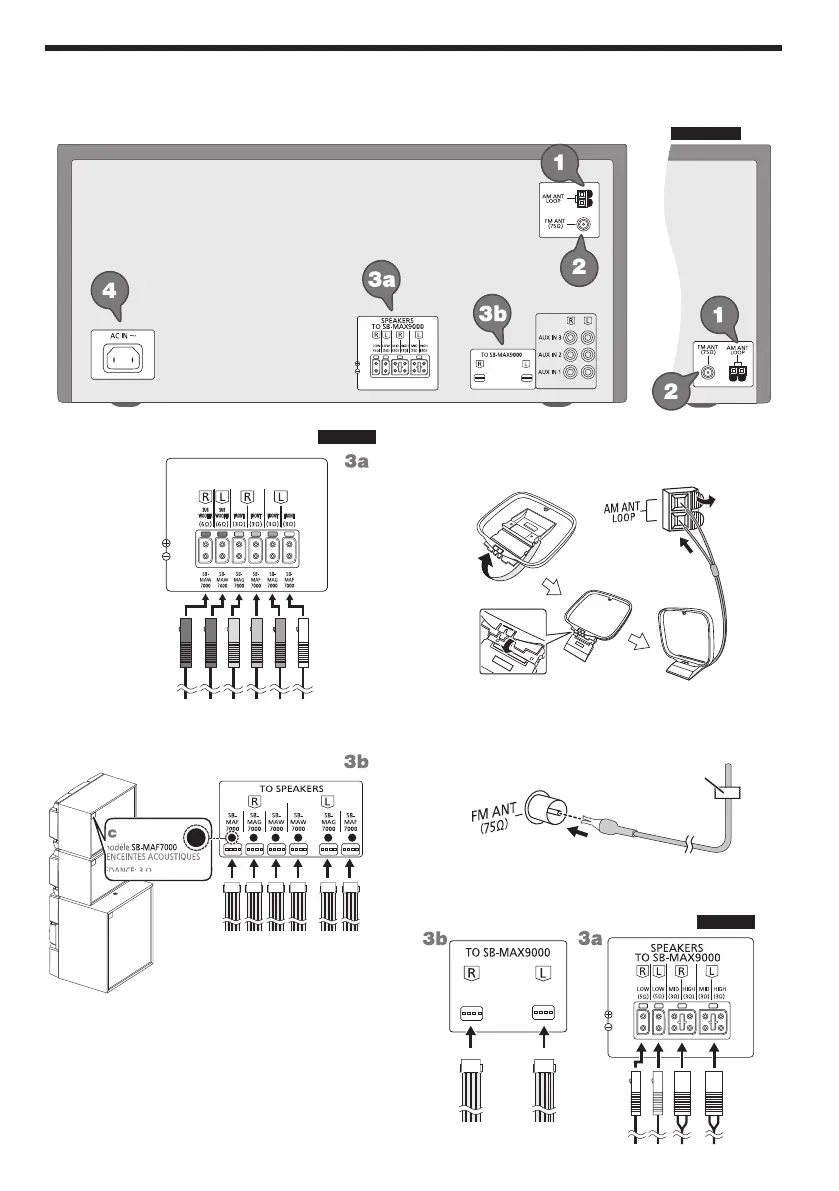

ﺕﻼﻴﺻﻮﺘﻟﺍ ﺀﺍﺮﺟﺇ
.ﻯﺮﺧﻷﺍ ﺕﻼﻴﺻﻮﺘﻟﺍ ﻞﻛ ﺀﺍﺮﺟﺇ ﻦﻣ ﺀﺎﻬﺘﻧﻻﺍ ﺪﻌﺑ ﻂﻘﻓ ﺩﺩﺮﺘﻤﻟﺍ ﺭﺎﻴﺘﻠﻟ ﺲﻴﺋﺮﻟﺍ ﺔﻴﺋﺎﺑﺮﻬﻜﻟﺍ ﺔﻗﺎﻄﻟﺍ ﻚﻠﺳ ﻞﺻ
SC-MAX7000
TO SPEAKERS
R1
R1
R2 R3 L3 L2 L1
ﺕﺎﻋﺎﻤﺴﻟﺍ ﺕﻼﺑﺎﻛ ﻞﻴﺻﻮﺘﺑ ﻢﻗ
.ﻪﺑﺎﺸﺘﻤﻟﺍ ﻥﻮﻠﻟﺍ ﺕﺍﺫ ﻑﺍﺮﻃﻷﺎﺑ
ﺓﺀﺎﺿﺇ ﺕﻼﺑﺎﻛ ﻞﻴﺻﻮﺘﺑ ﻢﻗ
ﻰﻠﻋ ﺍ
ﹰ
ﺩﺎﻤﺘﻋﺍ ﺔﻠﺑﺎﻘﻤﻟﺍ ﺕﺎﻋﺎﻤﺴﻟﺍ
.ﺔﻋﺎﻤﺴﻟﺍ ﻒﻳﺮﻌﺗ ﻢﻗﺭ
1.AM ﺔﺟﻮﻤﻟ ﻱﺭﺎﻃﻹﺍ ﻲﺋﺍﻮﻬﻟﺍ ﻞﻴﺻﻮﺗ
.ﺎ
ﹰ
ﺗﻮﺻ ﺭﺪﺼﻳ ﻰﺘﺣ ﻪﺗﺪﻋﺎﻗ ﻰﻠﻋ ﻰﻠﻋﻼﻟ ﻲﺋﺍﻮﻬﻟﺍ ﻊﺿ
B
A
2.FM ﺔﺟﻮﻤﻟ ﻲﻠﺧﺍﺪﻟﺍ ﻲﺋﺍﻮﻬﻟﺍ ﻞﺻ
.ﻝﺎﺒﻘﺘﺳﻼﻟ ﻥﺎﻜﻣ ﻞﻀﻓﺃ ﻲﻓ ﻲﺋﺍﻮﻬﻟﺍ ﻊﺿ
3.ﺕﺎﻋﺎﻤﺴﻟﺍ ﻞﺻ
.ﺔﻠﺑﺎﻘﻤﻟﺍ ﻑﺍﺮﻃﻷﺎﺑ ﺕﺎﻋﺎﻤﺴﻟﺍ ﺕﻼﺑﺎﻛ ﻞﻴﺻﻮﺘﺑ ﻢﻗ
SC-MAX9000
(ﻖﻓﺮﻣ ﺮﻴﻏ) ﻖﺻﻻ ﻂﻳﺮﺷ
