Panasonic SC-PM01 User Manual

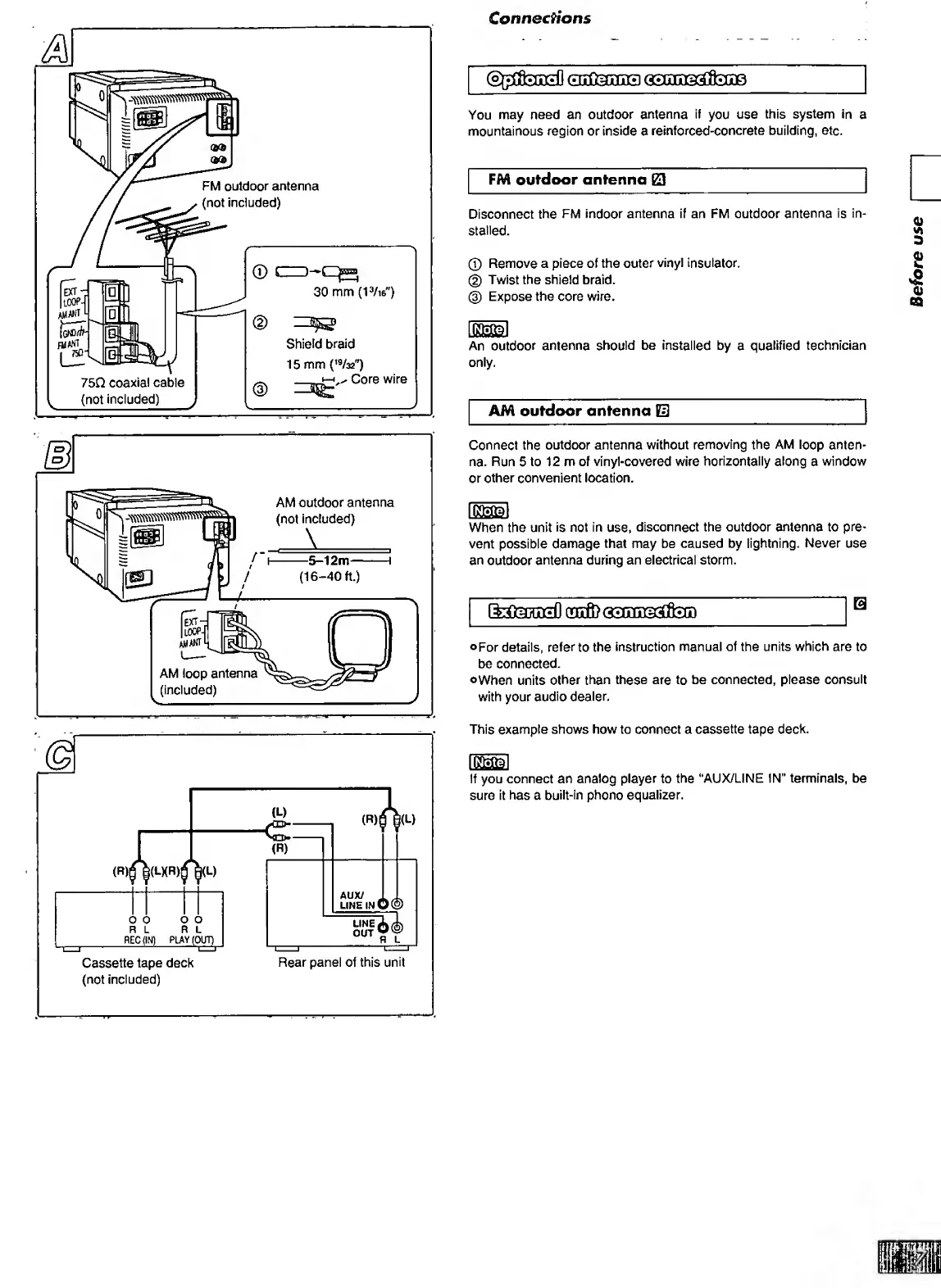

Connections
©
(not included)
You may need an outdoor antenna if you use this system in a
mountainous region or inside a reinforced-concrete building, etc.
FM outdoor antenna Q
Disconnect the FM indoor antenna if an FM outdoor antenna is in¬
stalled.
® Remove a piece of the outer vinyl insulator.
@ Twist the shield braid.
(D Expose the core wire.
An outdoor antenna should be installed by a qualified technician
only.
AM outdoor antenna 0]
Connect the outdoor antenna without removing the AM loop anten¬
na. Run 5 to 12 m of vinyl-covered wire horizontally along a window
or other convenient location.
When the unit is not in use, disconnect the outdoor antenna to pre¬
vent possible damage that may be caused by lightning. Never use
an outdoor antenna during an electrical storm.
oFor details, refer to the instruction manual of the units which are to
be connected.
©When units other than these are to be connected, please consult
with your audio dealer.
This example shows how to connect a cassette tape deck.
If you connect an analog player to the “AUX/LINE IN” terminals, be
sure it has a built-in phono equalizer.
Before
use
