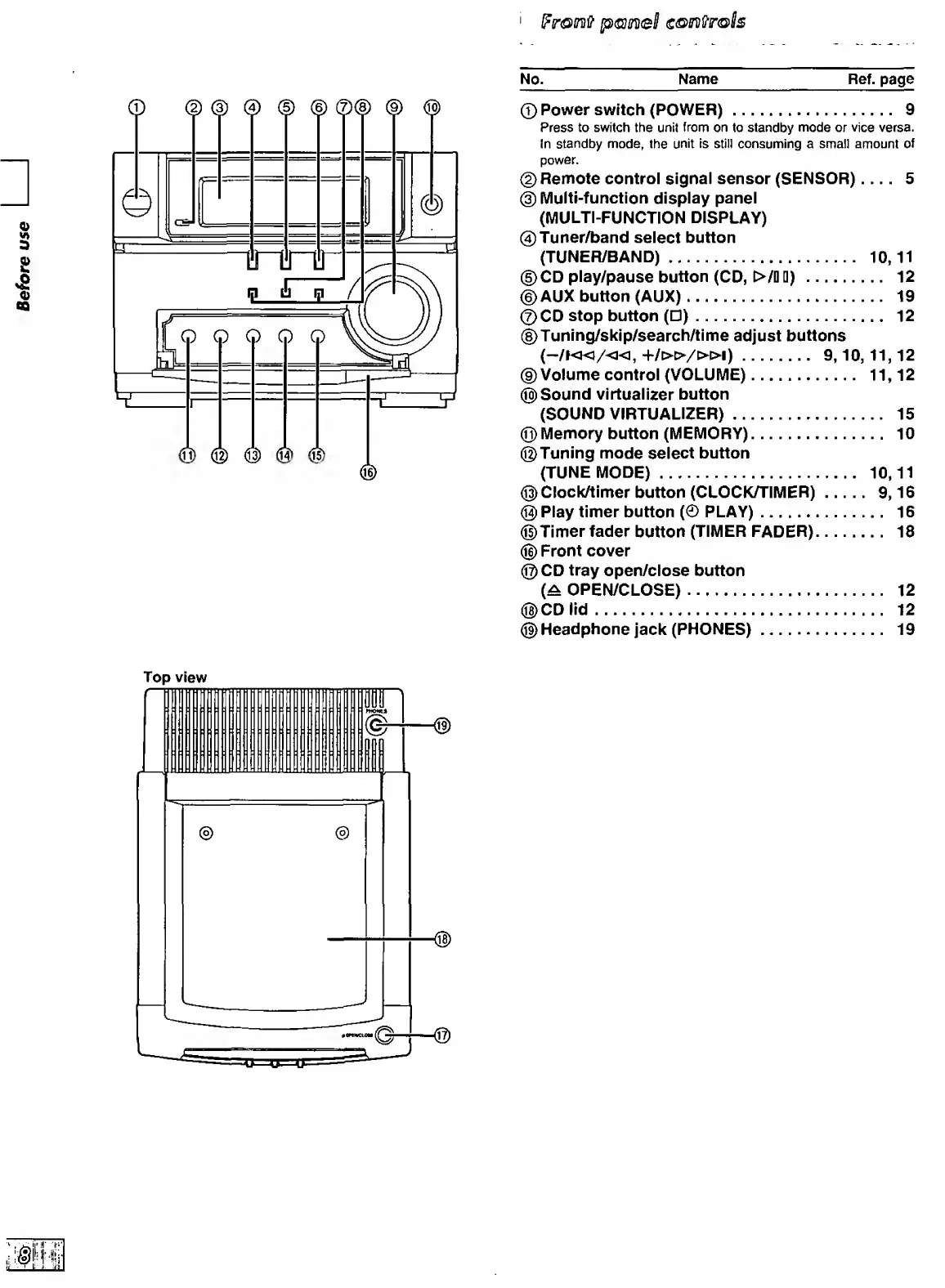

Panasonic SC-PM01 - Front Panel Controls Overview

Before
use
I p(S}{l^el
No. Name Ref. page
® Power switch (POWER). 9
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
Remote control signal sensor (SENSOR).... 5
@ Multi-function display panel
(MULTI-FUNCTION DISPLAY)
@Tuner/band select button
(TUNER/BAND). 10,11
(5) CD play/pause button (CD, >/DD) . 12
(6) AUX button (AUX). 19
0CD stop button ( □ ) . 12
(D Tuning/skip/search/time adjust buttons
(-/!«/«,+/»/»!). 9,10,11,12
(9) Volume control (VOLUME). 11,12
@ Sound virtualizer button
(SOUND VIRTUALIZER). 15
@ Memory button (MEMORY). 10
©Tuning mode select button
(TUNE MODE). 10,11
©Clockrtimer button (CLOCK/TIMER). 9,16
© Play timer button (© PLAY). 16
©Timer fader button (TIMER FADER). 18
© Front cover
© CD tray open/close button
(^ OPEN/CLOSE). 12
©CD lid. 12
©Headphone jack (PHONES). 19
Top view
©
