Panasonic SC-PM07

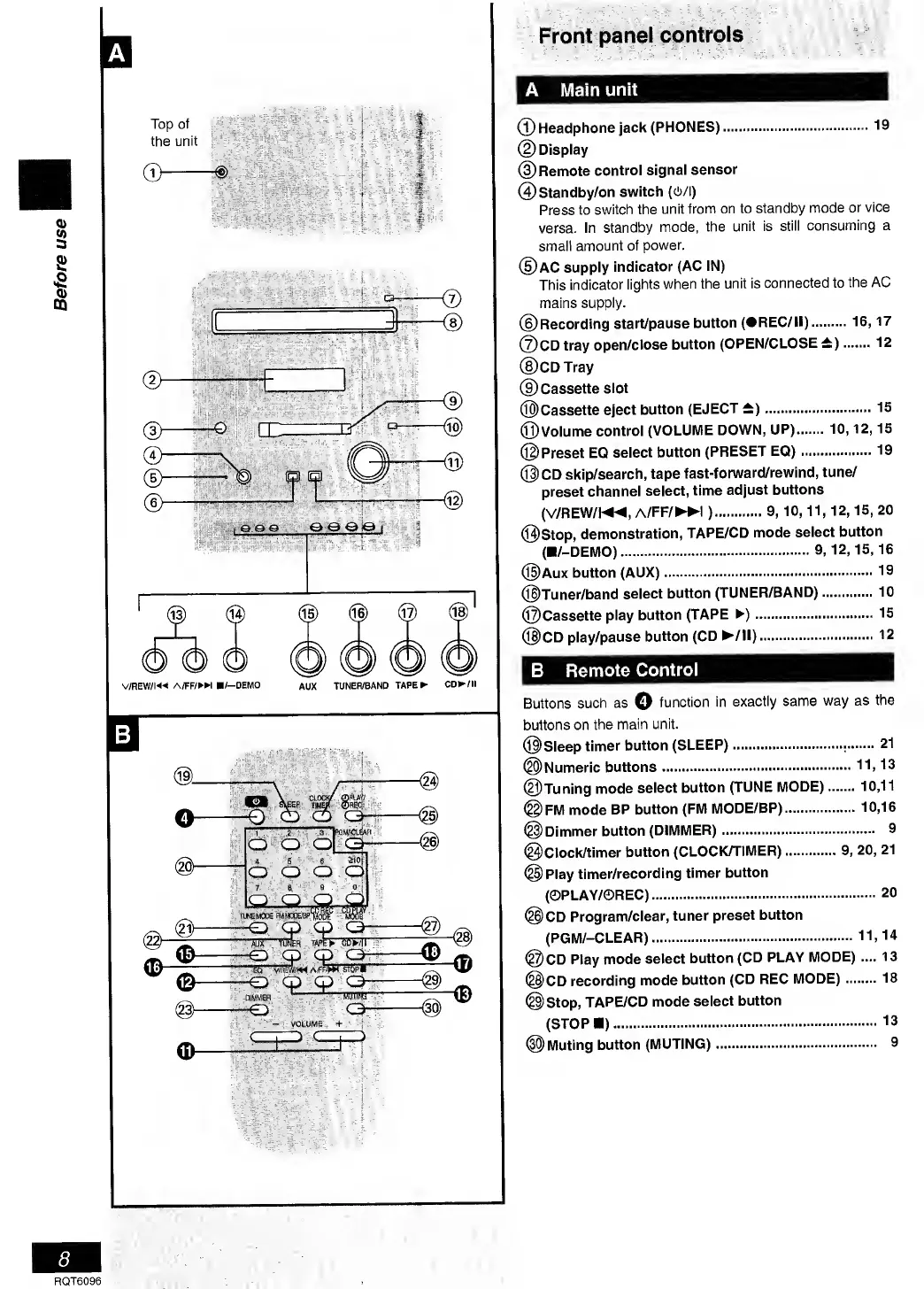

Front panel controls
A Main unit
©Headphone jack (PHONES).19
©Display
©Remote control signal sensor
(4) Standby/on switch (O/l)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a
small amount of power.
©AC supply indicator (AC IN)
This indicator lights when the unit is connected to the AC
mains supply.
©Recording start/pause button (•REC/II).16,17
©CD tray open/close button (OPEN/CLOSE ±) . 1 2
©CD Tray
©Cassette slot
©Cassette eject button (EJECT ±) . 1 5
©Volume control (VOLUME DOWN, UP).10,12,15
©Preset EQ select button (PRESET EQ).19
©CD skip/search, tape fast-forward/rewind, tune/
preset channel select, time adjust buttons
(V/REW/M**, A/FF/^W ).9, 10,11, 12,15, 20
©Stop, demonstration, TAPE/CD mode select button
( ■ /-DEMO).9, 12, 15, 16
©Aux button (AUX).19
©Tuner/band select button (TUNER/BAND).10
©Cassette play button (TAPE ► ).15
©CD play/pause button (CD ► /!!).12
B Remote Control
Buttons such as © function in exactly same way as the
buttons on the main unit.
©Sleep timer button (SLEEP).:.21
©Numeric buttons.11,13
©Tuning mode select button (TUNE MODE).10,11
@FM mode BP button (FM MODE/BP).10,16
©Dimmer button (DIMMER). 9
©Clock/timer button (CLOCK/TIMER).9, 20, 21
©Play timer/recording timer button
(©PLAY/0REC).20
©CD Program/clear, tuner preset button
(PGM/-CLEAR).11.14
©CD Play mode select button (CD PLAY MODE) .... 13
©CD recording mode button (CD REC MODE).18
©Stop, TAPE/CD mode select button
(STOP!).13
©Muting button (MUTING). 9
