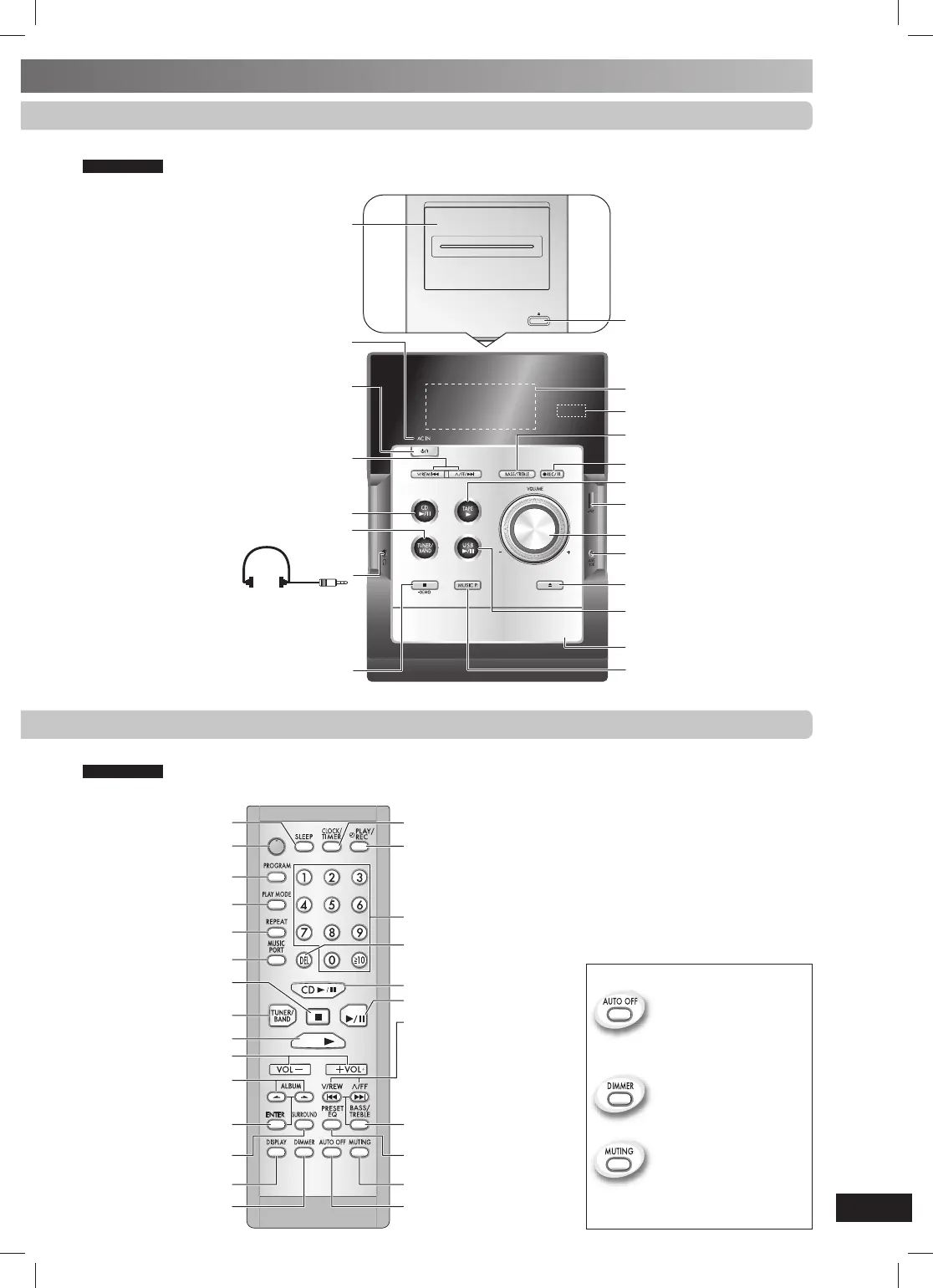

Top of unit
3 Tuner/Band selection (11)
Cassette lid
1 Standby/on switch (y/l) (8, 12)
Press to switch the unit from on to standby mode
or vice versa. In standby mode, the unit is still
consuming a small amount of power.
2 Disc play/pause (8, 9, 10)
Track skip/search, tape fast-forward/rewind,
tune/preset channel selection, time
adjustment, bass/treble adjustment
Stop/Demo (5, 8, 9, 14)
AC supply indicator (AC IN)
This indicator lights when the unit is
connected to the AC mains supply.
8 Music port selection (14)
Cassette lid open (9)
Headphone jack (
l
)
Avoid listening for prolonged periods of time to
prevent hearing damage.
Plug type: Ø3.5 mm stereo
(not included)
4 Bass/Treble selection (13)
6 Volume control
Disc tray open/close (8)
Remote control sensor
Display panel
Music port jack (14)
5 Tape play (10)
USB jack (14)
7 USB play/pause (10, 14)
Recording start/pause (9)
Disc tray
This function allows you to
turn off the unit in disc, tape
or USB mode only after left
unused for 10 minutes.
The setting is maintained
even if the unit is turned off.
Dims the display panel.
Mutes the sound.
• Press the button to activate.
• Press again to cancel.
Clock/Timer (12, 13)
Play timer/Record timer (12, 13)
Numeric (8, 9, 11 14)
Delete (9)
Stop/Clear (8, 9, 12)
Track skip/search, tape fast-
forward/rewind, tune/preset
channel selection, time
adjustment, bass/treble
adjustment (9 to 14)
Muting
Auto off
Program (9, 11)
Play mode (8, 10, 11)
Repeat (9)
8
3
Enter (9)
Surround (13)
Display (8, 14)
Dimmer
Sleep timer (12)
4
Preset EQ (13)
6
2
Album selection (8, 9, 14)
7
5
USB
TAPE
CLEAR
N
1
