Making the connections
Connect the AC mains lead only after all other connections have been made.
• Ensure that you have the complete accessories before making the connections.
Conserving power
The main unit consumes a small amount of power, even when it is in standby mode (approx. 1 W). To save power when the
unit is not to be used for a long time, unplug it from the household mains socket. You will need to reset some memory items
after plugging in the unit.
To household mains socket

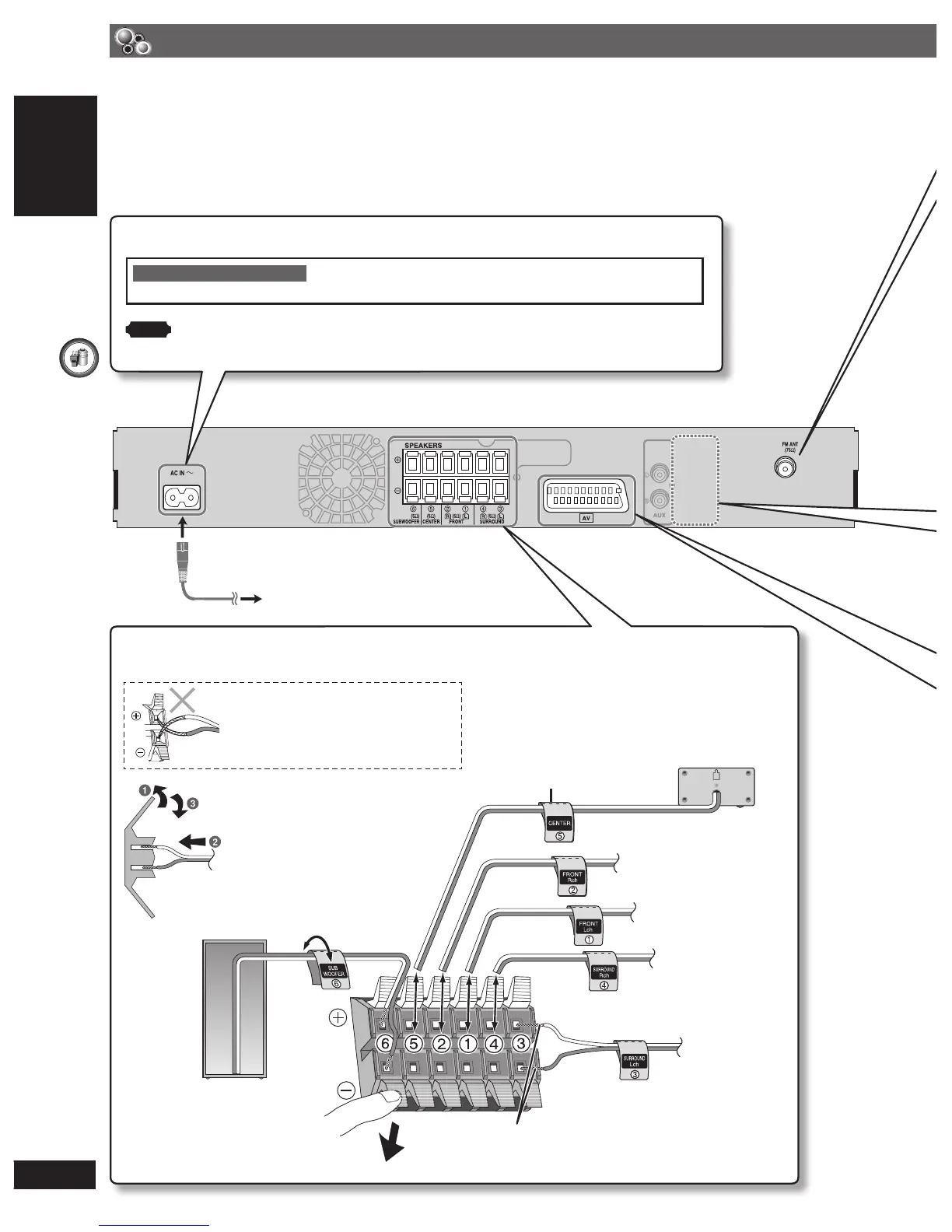

Connect to the speakers.
Attach the speaker-cable stickers to make connection easier.
Be careful not to cross (short-
circuit) or reverse the polarity of
the speaker wires as doing so may
damage the speakers.
Connect to the power supply.
For Saudi Arabia and Kuwait
BE SURE TO READ THE NOTE ON AC MAINS LEAD ON PAGE 2 BEFORE CONNECTION.
Note
The included AC mains lead is for use with this unit only. Do not use it with other equipment.
6 SUBWOOFER
2 FRONT (R)
1 FRONT (L)
4 SURROUND (R)
3 SURROUND (L)
5 CENTER
Speaker-cable sticker
+ : White
− : Blue
Push!
Do not insert the
wires beyond the
wire insulation.
