Simple Setup
Cable connections
RQTX0105
≥ Keep loose antenna cables away from other wires and cables.
3

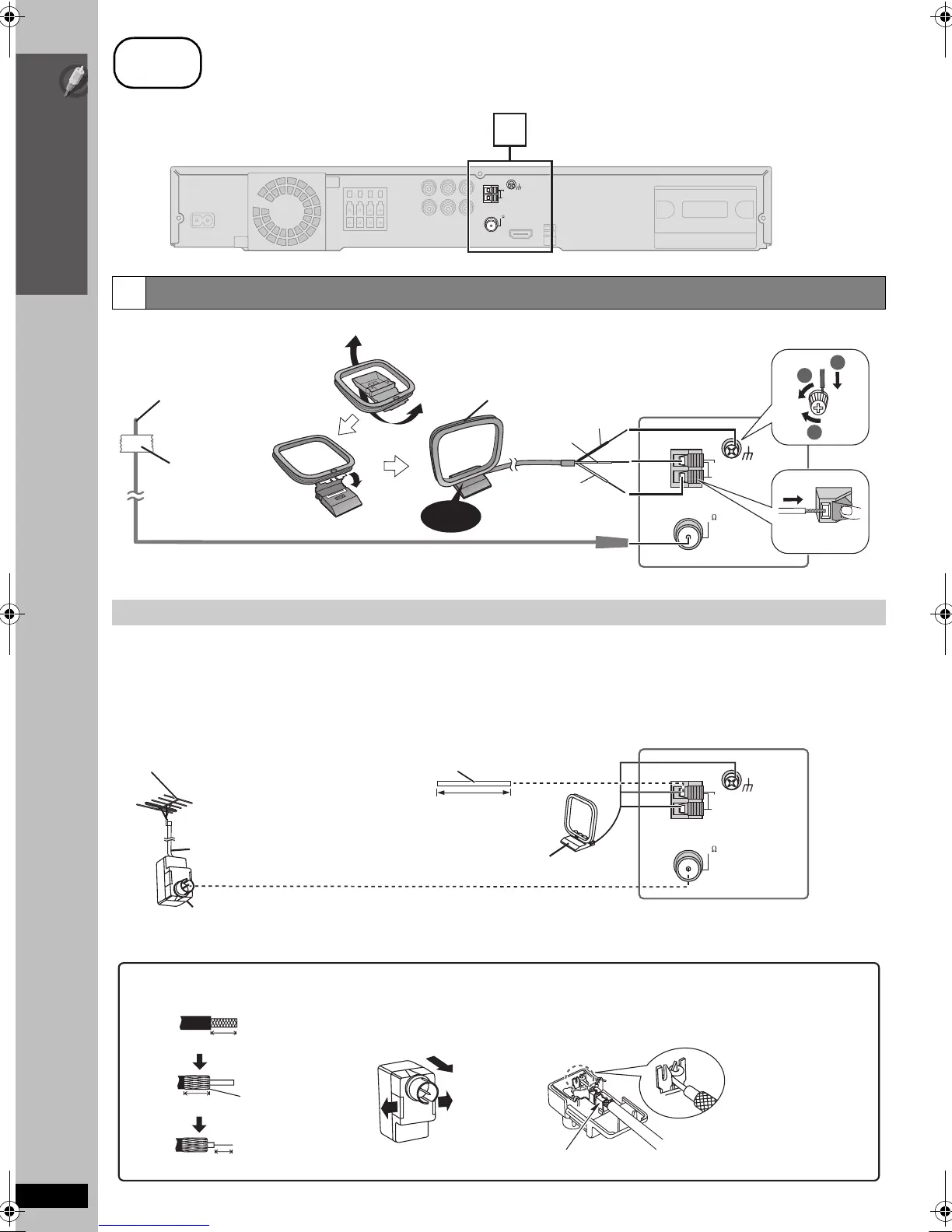

Radio antenna connections
step
3
Cable connections
FM ANT
(75 )
AM ANT
EXT
LOOP
3
LOOP ANT GND
Main unit
Using an FM/AM outdoor antenna (optional)
FM ANT
(75 )
AM ANT
EXT
LOOP
LOOP ANT GND
1
3
2
[AM\loop\antenna]
(included)
Stand the antenna up on its base.
Place the antenna where reception is best.
Adhesive
tape
[FM\indoor\antenna]
(included)
Affix this end of the antenna
where reception is best.
Push!
Click!
Main unit
Black
Red
White
FM ANT
(75 )
AM ANT
EXT
LOOP



LOOP ANT GND
Leave the AM loop
antenna connected.
AM outdoor antenna
[Using a vinyl wire (not included)]
Run a piece of vinyl wire horizontally across a
window or other convenient location.
5.0 m to 12 m
(16 ft to 39 ft)
FM outdoor antenna
[Using a TV antenna (not included)]
≥ The antenna should be installed by a
competent technician.
75 ≠ coaxial cable
§
(not included)
\U.S.A.\and\Canada]
Antenna plug (not included)
Use outdoor antenna if FM/AM radio reception is poor.
≥ Disconnect the antenna when the unit is not in use.
≥ Do not use the outdoor antenna during an electrical storm.
1 Remove a piece of the outer
vinyl insulator.
2 Carefully pull the tabs apart
to remove the cover.
3 Install the coaxial cable.
Clamp the cable conductor, and
wind it on so that it does not
contact anything else.
7mm (
9
/32z)
Peel back
4 Attach the cover.
Clamp with pliers
10 mm (
13
/32z)
§
Rework your outdoor antenna’s 75 ≠ coaxial cable as follows.
10 mm (
13
/32z)
Main unit
