Control reference guide
1 LED indicators
The currently-selected device is indicated by the
lighting of the corresponding indicator.
2 Standby/on switch (Í/I)
Press to switch the unit from on to standby mode or
vice versa. In standby mode, the unit is still
consuming a small amount of power.
3 Adjust the volume of this system (> 9)
4[INPUT/j PAIRING] button
≥ Selects the connected device
(The device changes each time this button is
pressed)
≥ Registers Bluetooth
®
devices
5 Remote control signal sensor
1 DC IN (12 V) terminal
2 Firmware update (UPDATE DC 5 V 500 mA)
terminal*
3 AUDIO IN (AUX IN) terminal
4 Ventilation holes
5 HDMI AV OUT (TV (ARC)) terminal
6 HDMI AV IN (BD/DVD) terminal

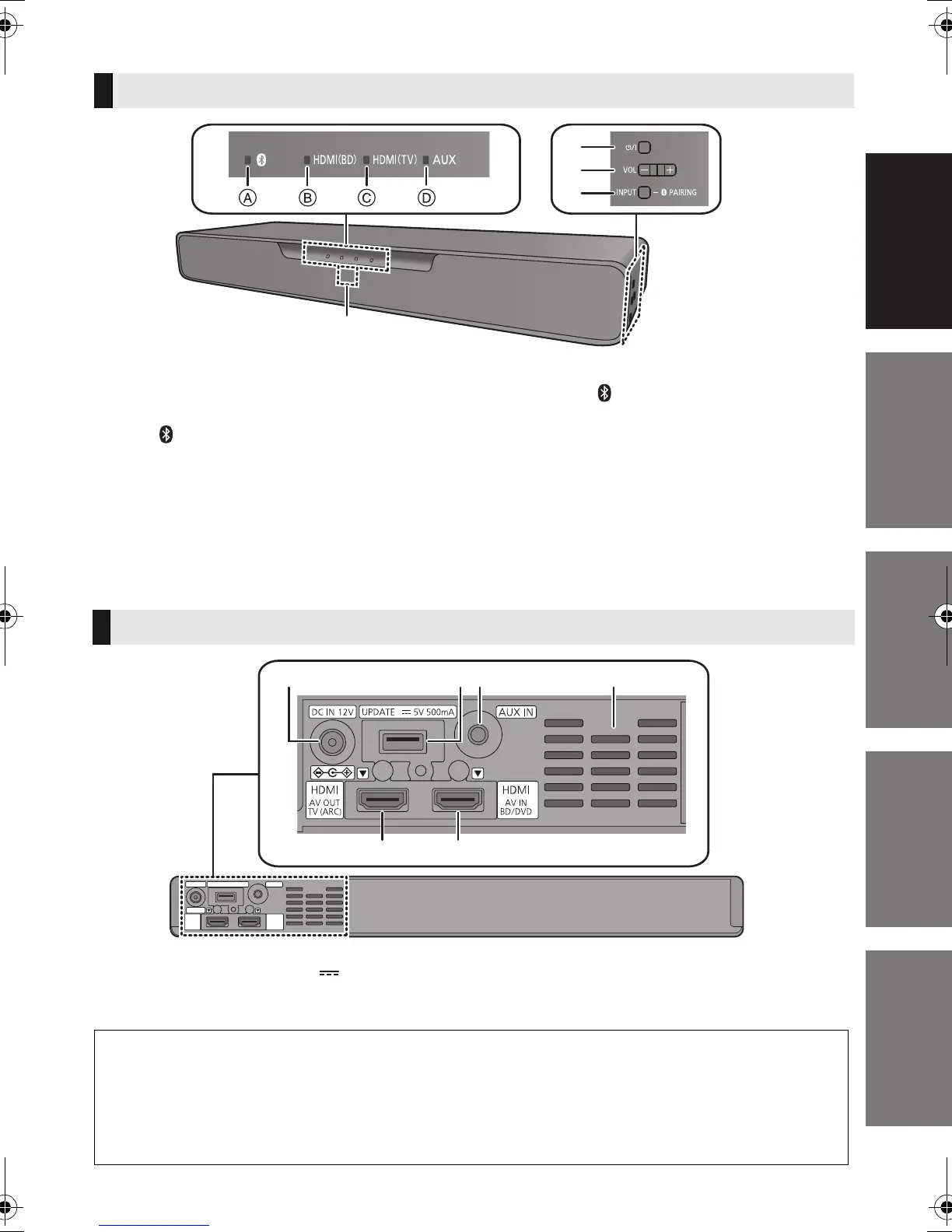

This system (Front / Sides)
5
1
2
3
4
A (Bluetooth
®
) indicator (lights up blue)
B HDMI(BD) indicator (lights up green)
C HDMI(TV) indicator (lights up green)
D AUX indicator (lights up green)
Distance: Within approx. 7 m directly in front
Angle: Approx. 20e up and down and approx.
30e left and right
This system (Rear)
5
1 2 43
6
* Note about firmware updates
Use the firmware update terminal to update the version of this system through a USB memory
device. (Not used for normal operations.) For more details about version updates, refer to the
support site below.
http://av.jpn.support.panasonic.com/support/global/cs/
(This site is in English only.)
