Panasonic SG-40 - Disassembly Instructions; Component Removal Steps

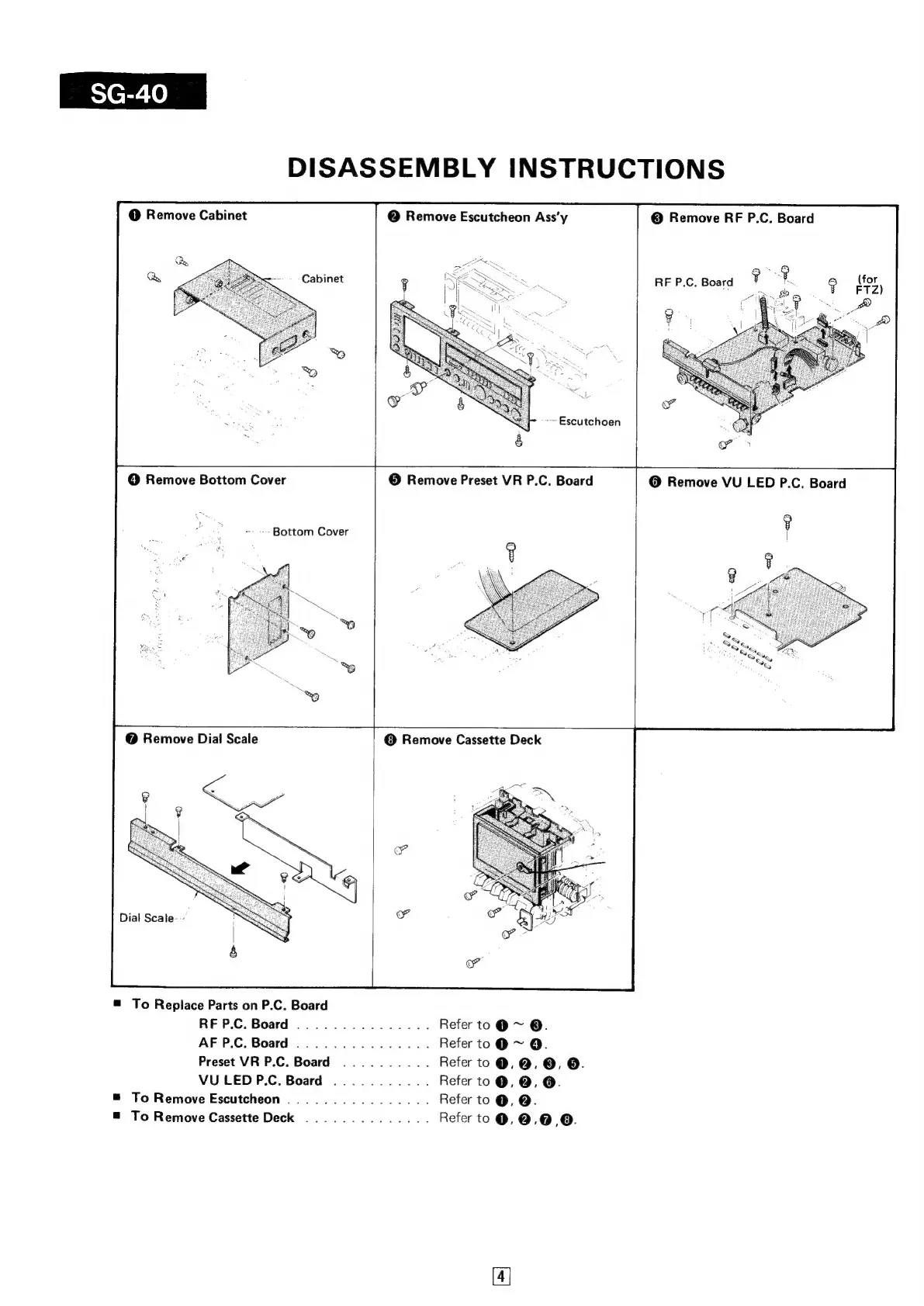

DISASSEMBLY INSTRUCTIONS
@ Remove Cabinet
B
a Be
oO Wy
te
@ Remove Escutcheon Ass’y
© Remove RF P.C. Board
RF P.C. Board
© Remove Bottom Cover
Bottom Cover
Dial Scale-~
= To Replace Parts on P.C. Board
RFP.C. Board ........
AF P.C, Board ........
Preset VR P.C. Board ..
VU LED P.C. Board
= To Remove Escutcheon........
=" To Remove Cassette Deck
© Remove Preset VR P.C. Board
© Remove Cassette Deck
Refer to @ ~ ©.
Refer to@~ Q.
Refer to 0,090.9, 9.
Refer to @, @, ©.
Refer to @, @.
Refer to @,0.0,0.
