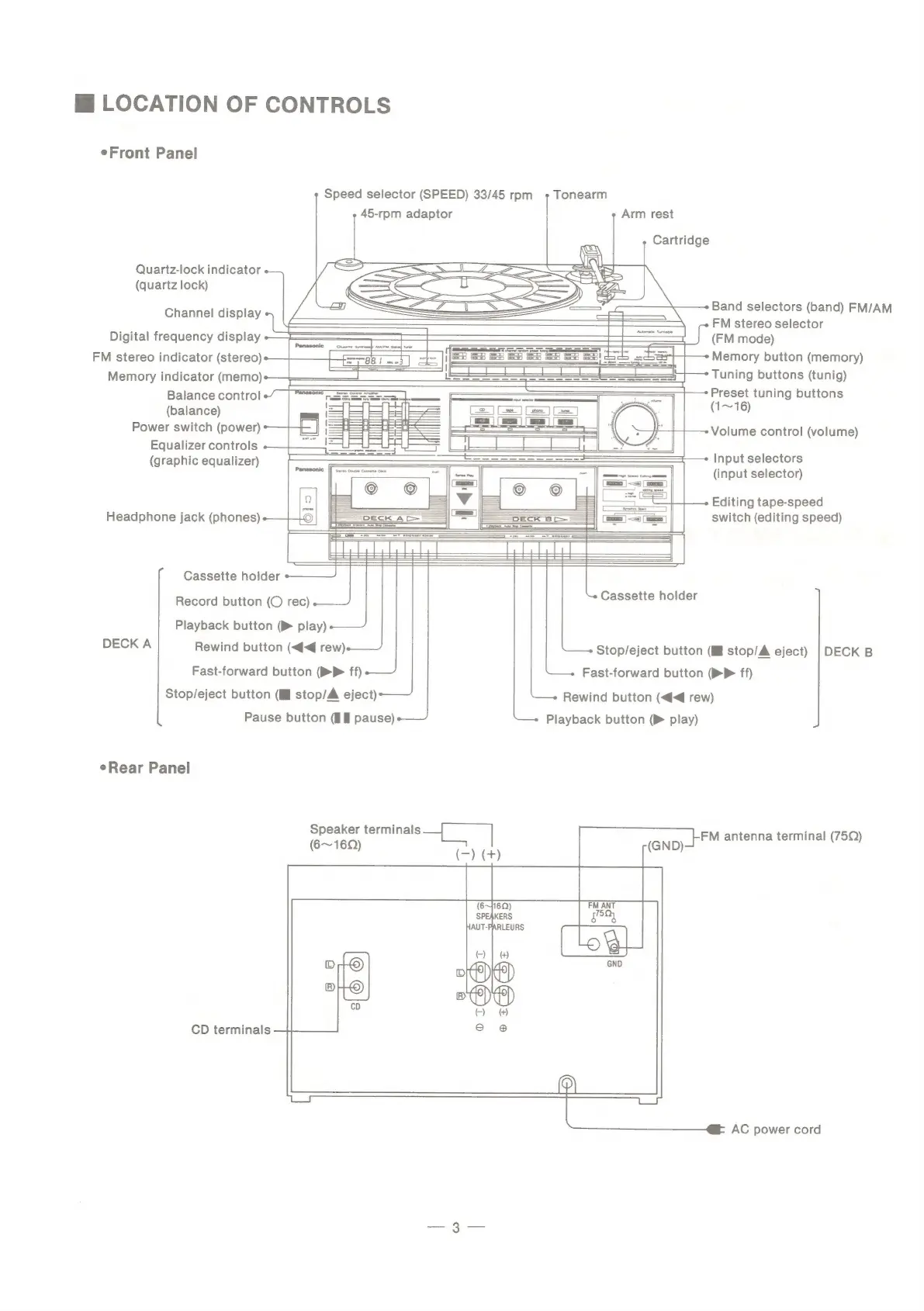

Panasonic SG-D16 - LOCATION OF CONTROLS; Front Panel; Rear Panel

li LOCATION OF CONTROLS
eFront Panel
Quartz-lock indicator
(quartz lock)
Channel display
Digital frequency display
FM stereo indicator (stereo)
Memory indicator (memo)
Balance control
(balance)
Power switch (power)
Equalizer controls
(graphic equalizer)
Headphone jack (phones)
Cassette holder
Record button (© rec)
Speed selector (SPEED) 33/45 rpm_ +» Tonearm
45-rpm adaptor Arm rest
Cartridge
—e Band selectors (band) FM/AM
FM stereo selector
(FM mode)
Memory button (memory)
Tuning buttons (tunig)
- Preset tuning buttons
(1~16)
Volume control (volume)
Input selectors
(input selector)
Editing tape-speed
switch (editing speed)
Cassette holder
Playback button (® play)
DECK A Rewind button (<< rew)
Fast-forward button (> ff)
Stop/eject button (Mf stop/A eject)
Pause button (§— pause)
eRear Panel
CD terminals
Speaker terminals
(6~16Q)
Stop/eject button (HI stop/A eject) | DECK B
Fast-forward button (®P ff)
Rewind button (<< rew)
Playback button (® play)
FM antenna terminal (75Q)
AC power cord
