Panasonic TC-54PS14 - Remove the A-Board; Remove the Speakers; Remove the Control Button Unit; Remove the GK-Board

19

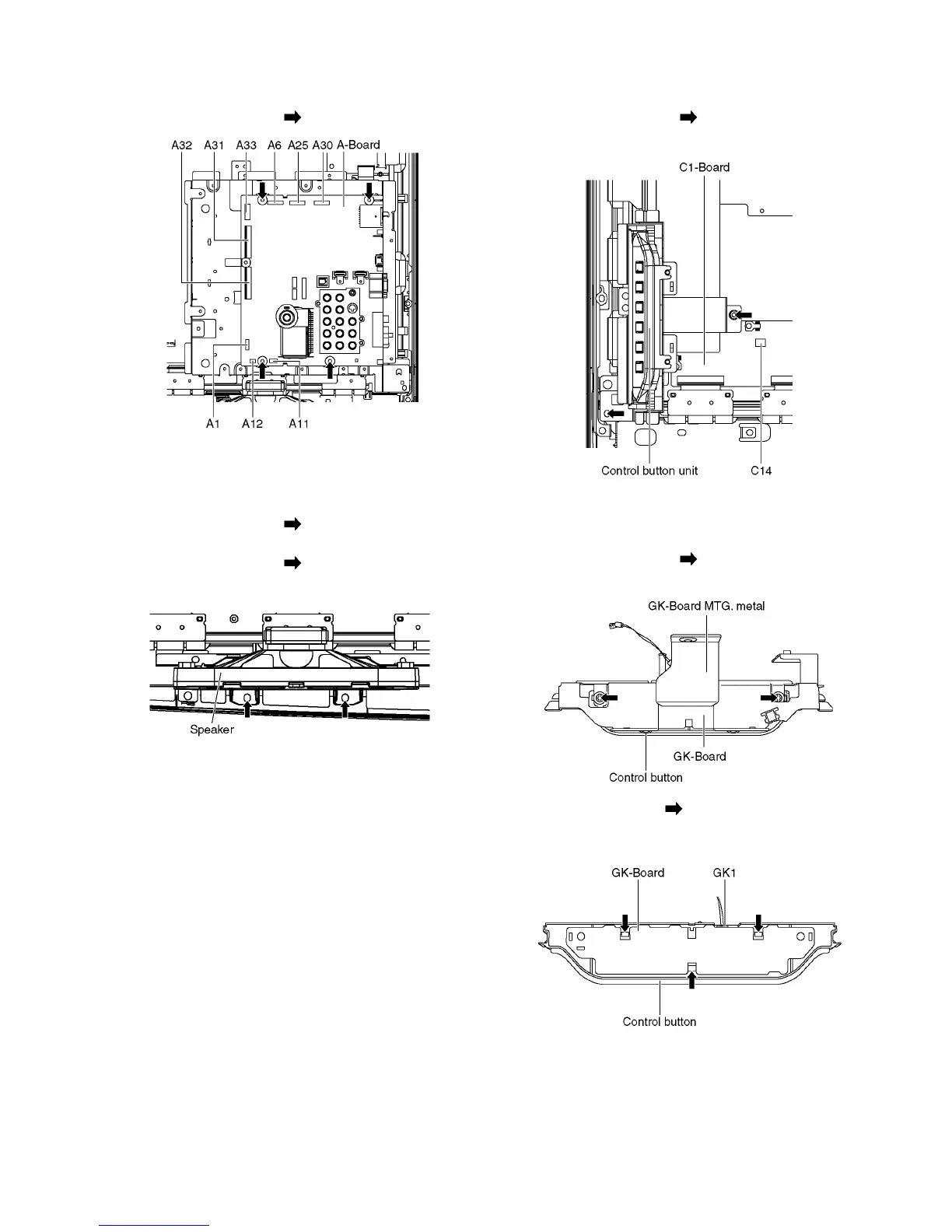

7.5. Remove the A-Board
1. Remove the Tuner unit. (See section 7.4.)
2. Remove the screws (×4 ) and remove the A-Board.
7.6. Remove the Speakers
1. Unlock the cable clampers to free the cable.
2. Disconnect the relay connector.
3. Remove the screws (×2 ) and remove the Speaker R.
4. Disconnect the connector (A12). (See section 7.4.)
5. Remove the screws (×2 ) and remove the Speaker L.
7.7. Remove the Control button unit
1. Disconnect the connector (C14).
2. Remove the screws (×2 ).
3. Remove the Control button unit.
7.8. Remove the GK-Board
1. Remove the Control button unit. (See section 7.7.)
2. Remove the screws (×2 ).
3. Remove the GK-Board MTG. metal.
4. Remove the claw (×3 ).
5. Disconnect the connector (GK1).
6. Remove the GK-Board from Control button.
