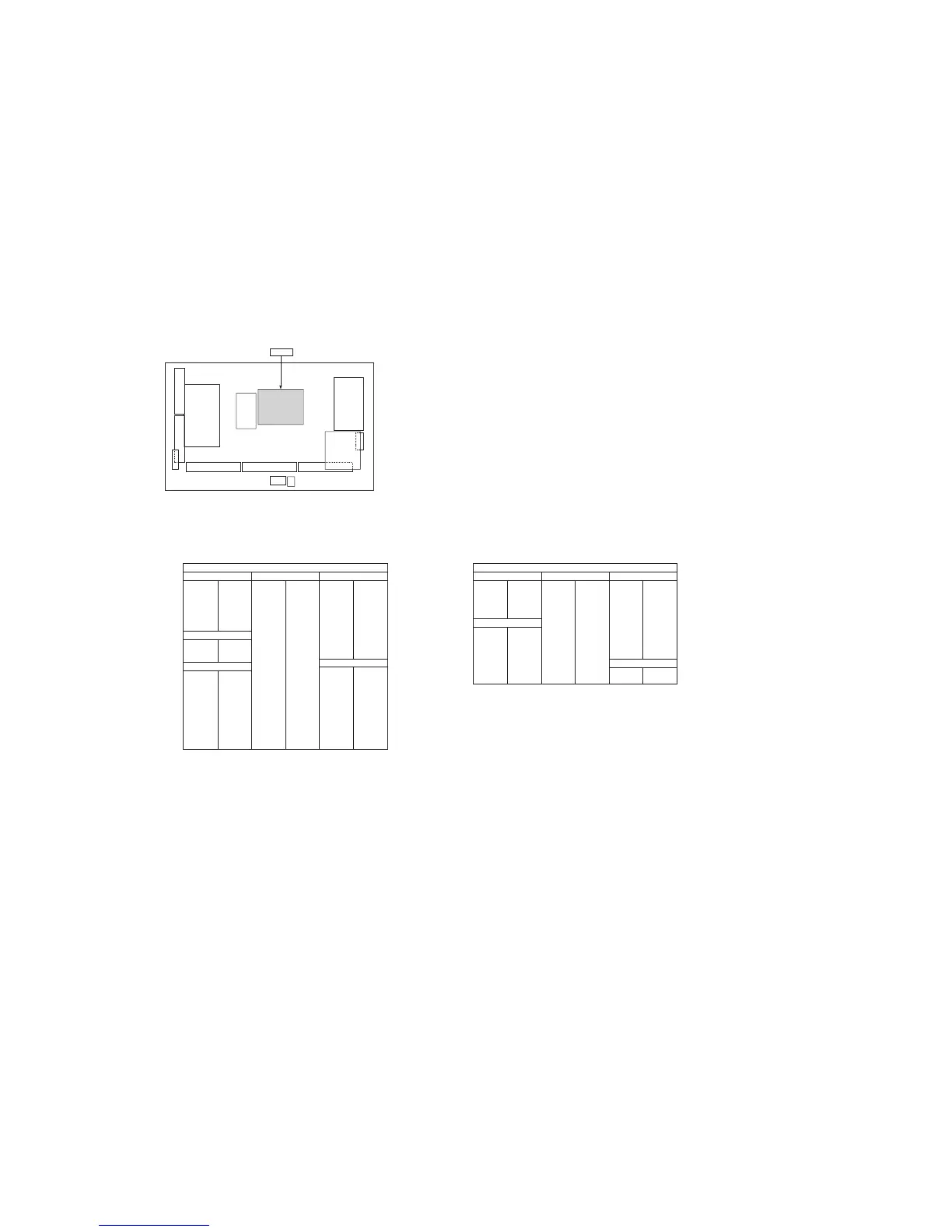

Parts Location
P-BOARD (FOIL SIDE)
IC201 F-4
IC202 F-4
IC251 C-6
IC301 F-3
IC352 B-2
IC501 G-2
IC551 E-1
IC601 H-3
PC3 E-2
PC4 E-2
PC201 E-4
PC202 E-4
PC301 E-2
PC302 E-2
PC401 C-3
PC501 E-2
IC
PHOTO COUPLER
MC401 C-3
MC451 C-2
MC701 C-1
MODULE
Q201 E-5
Q202 E-4
Q203 E-3
Q204 F-4
Q301 E-3
Q302 E-3
Q303 E-2
Q351 B-3
Q352 C-2
Q353 D-3
Q401 C-3
Q402 B-4
Q403 B-4
Q502 H-2
Q505 H-2
Q506 H-2
Q551 C-2
Q601 G-4
Q602 G-3
Q603 H-3
Q604 H-3
Q605 H-4
Q606 H-4
Q607 H-2
Q608 G-2
Q609 H-2
Q701 B-1
Q702 B-1
Q703 C-1
TRANSISTOR
TP1 G-4
TP2 F-4
TP3 G-1
TP4 G-2
TP5 D-6
TP6 E-6
TP8 C-4
TP9 C-4
TP10 H-4
TP11 H-4
TP12 H-4
TP13 F-2
TP14 F-2
TEST POINT
VR251 B-5
VR401 B-4
VOLUME
Parts Location
P-BOARD (COMPONENT SIDE)
IC201 D-4
IC251 G-6
IC301 D-3
IC352 H-2
IC501 C-2
IC551 E-1
IC
MC401 G-3
MC451 G-2
MC701 G-1
MODULE
Q201 E-5
Q202 E-4
Q301 E-3
Q302 E-3
Q351 H-3
Q401 H-3
Q402 H-4
Q403 H-4
Q601 C-4
Q602 C-3
Q606 C-4
TRANSISTOR
TP1 C-4
TP2 D-4
TP3 C-1
TP4 C-2
TP5 F-6
TP6 E-6
TP8 G-4
TP9 G-4
TP10 B-4
TP11 B-4
TP12 B-4
TP13 D-2
TP14 D-2
TEST POINT
VR251 G-5
VR401 H-4
VOLUME
