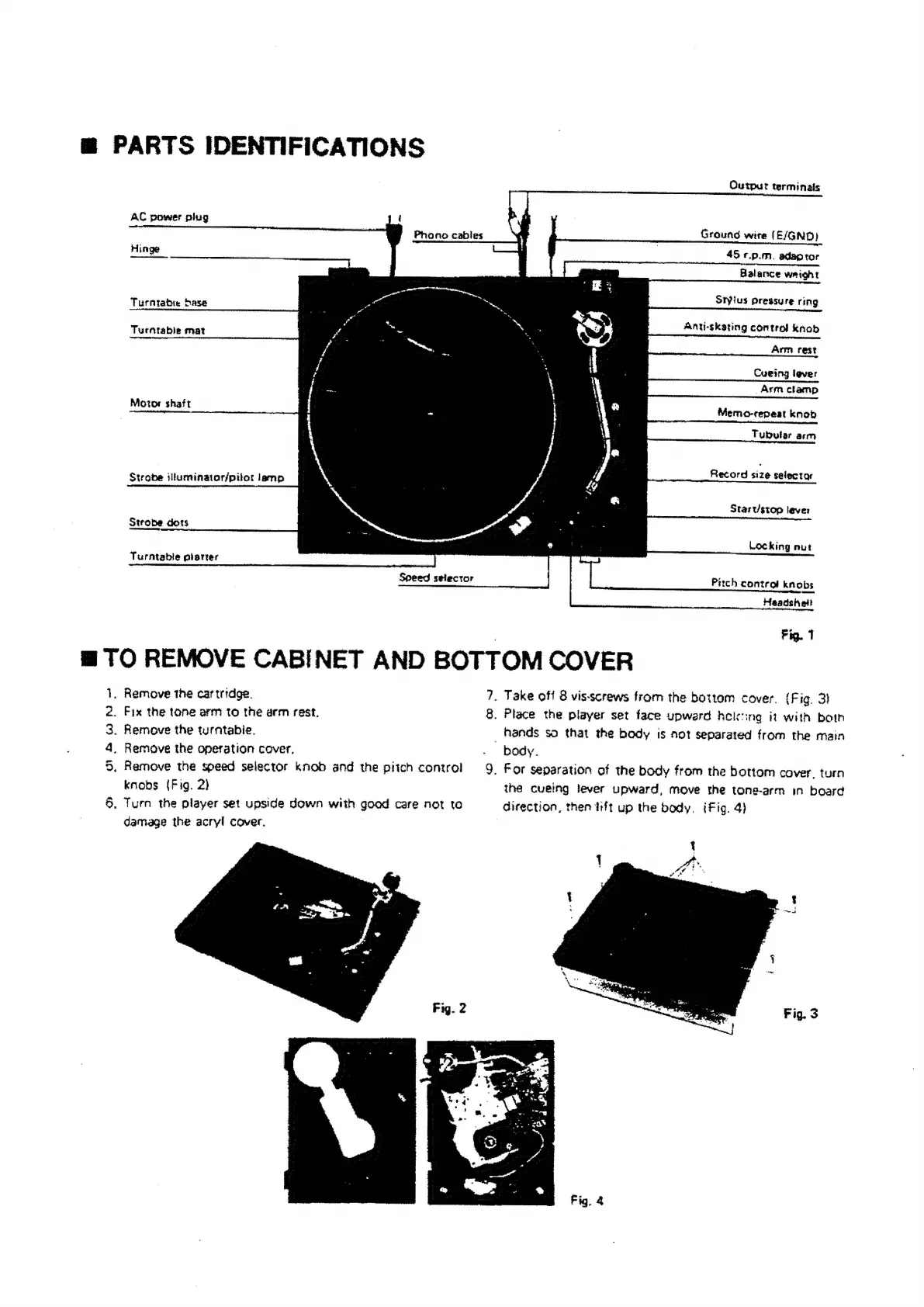

PARTS
IDENTIFICATIONS
Turntatte base
Turntable mat
Motos shaft
Strobe illuminator/pilot Jamp
Strobe dots —
Turntable platter
Speed selector
Output terminais
Stylus pressure ring
Anti-skating
control
Knob
Arm rest
Cueing lever
Arm clamp
Memo-repeat knob
Tubefar arm
Record
size
selectar
Start/stoo lever
Locking nut
Pitch control knobs
Headsh alt
Fig. 1
m
TO
REMOVE
CABINET
AND
BOTTOM
COVER
1, Remove the cartridge.
2. Fix the tone arm to the arm rest,
3. Remove the turntabie.
4, Remove the operation cover,
5. Remove the speed selector knob and the pitch control
knobs (Fig. 2}
6. Turn the player set upside down with good care not to
damage the acryl cover. ,
. Take off 8 vis-screws from the boitom cover. (Fig. 3}
.
Place
the
player
set
face
upward
helsing
it
with
both
_
hands
so
that
the
body
is
not
separated
from
the
main
body.
. For separation of the body from the bottom cover. turn
the cueing lever upward, move the tons-arm in board
direction, then ift up the body, (Fig. 4}
Fig. 3
