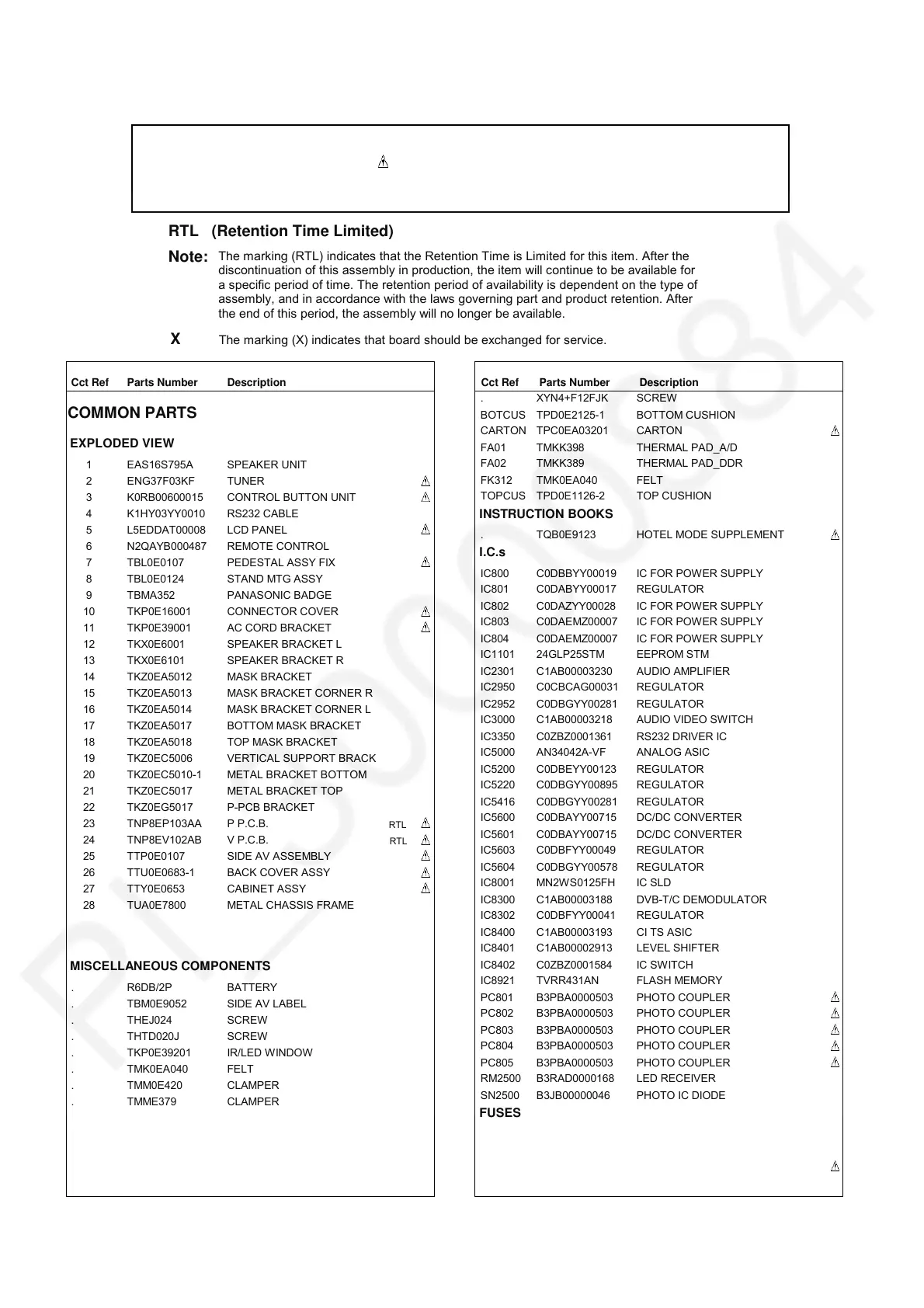

Panasonic TH-42LRG20E - Replacement Parts List

Components Identified by mark have special characteristics important for safety.
* When replacing any of these components, use only manufacturers specified parts.
In case of ordering these spare parts, please always add the complete Model-Type number to your order.
Replacement Parts List
Important Safety Notice
The marking (RTL) indicates that the Retention Time is Limited for this item. After the
discontinuation of this assembly in production, the item will continue to be available for
a specific period of time. The retention period of availability is dependent on the type of
assembly, and in accordance with the laws governing part and product retention. After
the end of this period, the assembly will no longer be available.
RTL (Retention Time Limited)
Note:
X
The marking (X) indicates that board should be exchanged for service.
DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
COMMON PARTS
EXPLODED VIEW
SPEAKER UNIT 1 EAS16S795A
TUNER 2 ENG37F03KF
CONTROL BUTTON UNIT 3 K0RB00600015
RS232 CABLE 4 K1HY03YY0010
LCD PANEL 5 L5EDDAT00008
REMOTE CONTROL 6 N2QAYB000487
PEDESTAL ASSY FIX 7 TBL0E0107
STAND MTG ASSY 8 TBL0E0124
PANASONIC BADGE 9 TBMA352
CONNECTOR COVER 10 TKP0E16001
AC CORD BRACKET 11 TKP0E39001
SPEAKER BRACKET L 12 TKX0E6001
SPEAKER BRACKET R 13 TKX0E6101
MASK BRACKET 14 TKZ0EA5012
MASK BRACKET CORNER R 15 TKZ0EA5013
MASK BRACKET CORNER L 16 TKZ0EA5014
BOTTOM MASK BRACKET 17 TKZ0EA5017
TOP MASK BRACKET 18 TKZ0EA5018
VERTICAL SUPPORT BRACK 19 TKZ0EC5006
METAL BRACKET BOTTOM 20 TKZ0EC5010-1
METAL BRACKET TOP 21 TKZ0EC5017
P-PCB BRACKET 22 TKZ0EG5017
P P.C.B. 23 TNP8EP103AA
V P.C.B. 24 TNP8EV102AB
SIDE AV ASSEMBLY 25 TTP0E0107
BACK COVER ASSY 26 TTU0E0683-1
CABINET ASSY 27 TTY0E0653
METAL CHASSIS FRAME 28 TUA0E7800
MISCELLANEOUS COMPONENTS
BATTERY . R6DB/2P
SIDE AV LABEL . TBM0E9052
SCREW . THEJ024
SCREW. THTD020J
IR/LED WINDOW . TKP0E39201
FELT . TMK0EA040
CLAMPER . TMM0E420
CLAMPER . TMME379
POLYBAG_PEDESTAL . TPE0E9004
CARTON CAP . TPG0E9520
SCREW . XTB4+12JFJK
SCREW . XTV3+8JFJK
SCREW . XTW3+10TFJ
SCREW . XYN4+F12FJK
BOTTOM CUSHION BOTCUS TPD0E2125-1
CARTON CARTON TPC0EA03201
THERMAL PAD_A/D FA01 TMKK398
THERMAL PAD_DDR FA02 TMKK389
FELT FK312 TMK0EA040
TOP CUSHION TOPCUS TPD0E1126-2
INSTRUCTION BOOKS
HOTEL MODE SUPPLEMENT. TQB0E9123
I.C.s
IC FOR POWER SUPPLYIC800 C0DBBYY00019
REGULATOR IC801 C0DABYY00017
IC FOR POWER SUPPLYIC802 C0DAZYY00028
IC FOR POWER SUPPLYIC803 C0DAEMZ00007
IC FOR POWER SUPPLYIC804 C0DAEMZ00007
EEPROM STM IC1101 24GLP25STM
AUDIO AMPLIFIER IC2301 C1AB00003230
REGULATOR IC2950 C0CBCAG00031
REGULATOR IC2952 C0DBGYY00281
AUDIO VIDEO SWITCHIC3000 C1AB00003218
RS232 DRIVER IC IC3350 C0ZBZ0001361
ANALOG ASIC IC5000 AN34042A-VF
REGULATOR IC5200 C0DBEYY00123
REGULATOR IC5220 C0DBGYY00895
REGULATOR IC5416 C0DBGYY00281
DC/DC CONVERTER IC5600 C0DBAYY00715
DC/DC CONVERTER IC5601 C0DBAYY00715
REGULATOR IC5603 C0DBFYY00049
REGULATOR IC5604 C0DBGYY00578
IC SLD IC8001 MN2WS0125FH
DVB-T/C DEMODULATORIC8300 C1AB00003188
REGULATOR IC8302 C0DBFYY00041
CI TS ASIC IC8400 C1AB00003193
LEVEL SHIFTER IC8401 C1AB00002913
IC SWITCH IC8402 C0ZBZ0001584
FLASH MEMORY IC8921 TVRR431AN
PHOTO COUPLER PC801 B3PBA0000503
PHOTO COUPLER PC802 B3PBA0000503
PHOTO COUPLER PC803 B3PBA0000503
PHOTO COUPLER PC804 B3PBA0000503
PHOTO COUPLER PC805 B3PBA0000503
LED RECEIVER RM2500 B3RAD0000168
PHOTO IC DIODE SN2500 B3JB00000046
FUSES
FUSE HOLDER F800-2 K3GE1ZA00010
FUSE HOLDER F800-1 K3GE1ZA00010
AC FUSE F800 K5D502BNA007
CHIP FUSE PA2750 K5H4022A0031
