Panasonic TH-42LRG20E - Chassis Board Layout; Location of Lead Wiring

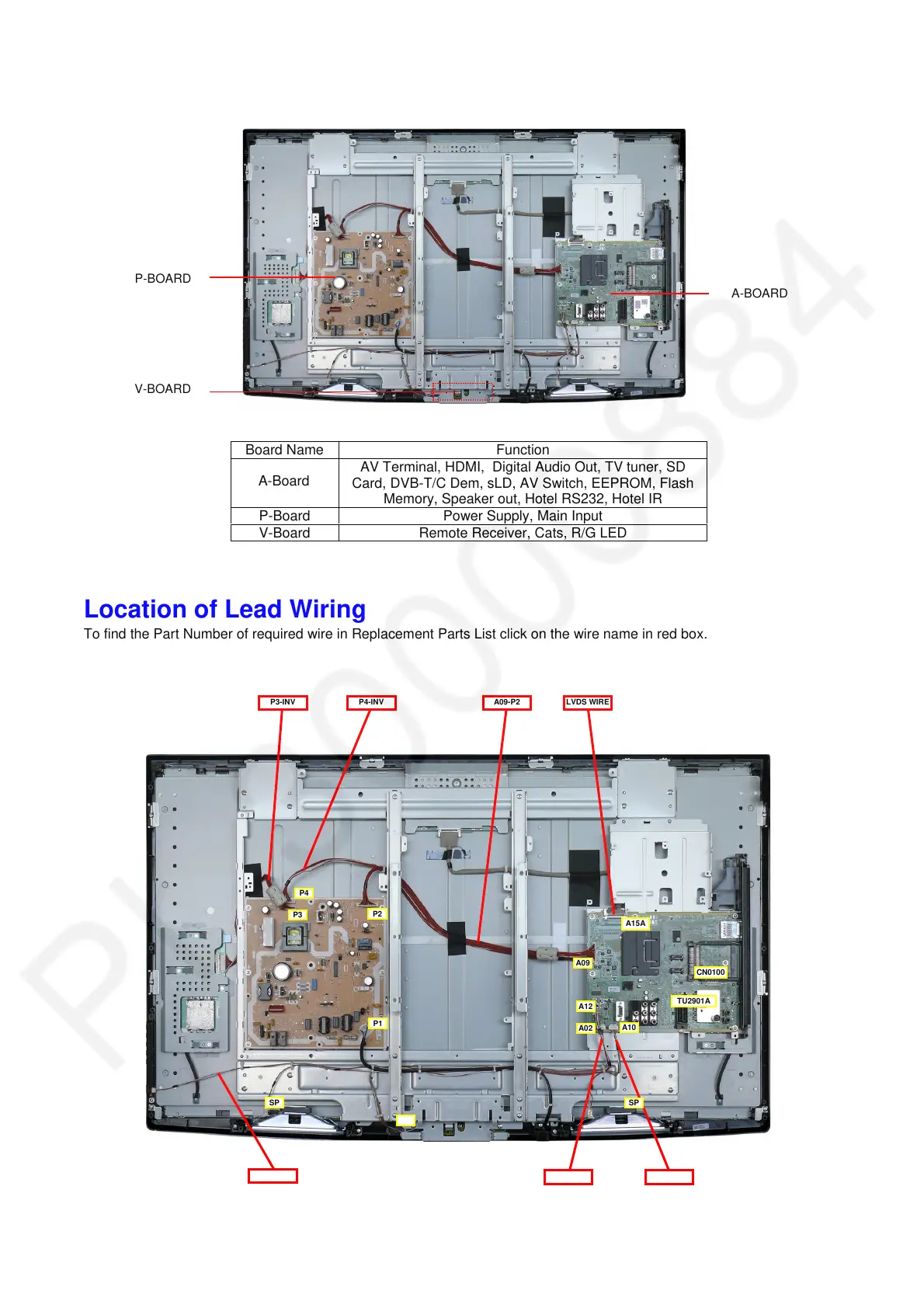

Chassis Board Layout
Location of Lead Wiring
To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.
Board Name Function
AV Terminal, HDMI, Digital Audio Out, TV tuner, SD
Card, DVB-T/C Dem, sLD, AV Switch, EEPROM, Flash
Memory, Speaker out, Hotel RS232, Hotel IR
P-Board Power Supply, Main Input
V-Board Remote Receiver, Cats, R/G LED
V-BOARD
P-BOARD
9
A-BOARD
A10-V10
LVDS WIREA09-P2
A15A
A
09
A
10
CN0100
A
12
A02-S01
A12-SP
A
02
V
10
P2
SP
SP
P1
TU2901A
A-Board
P3
P3-INV
P4
P4-INV
