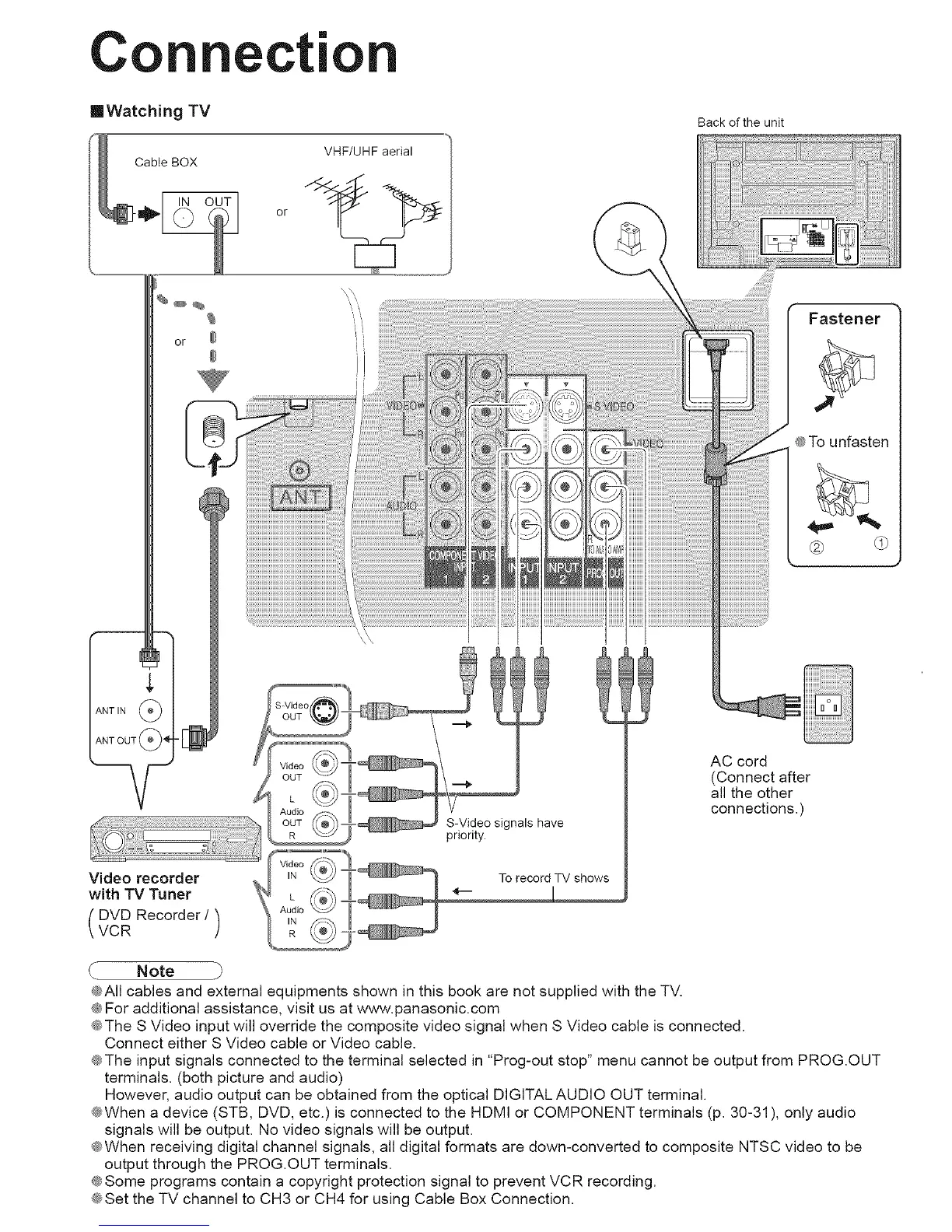

mWatching TV
VHF/UHF aerial
Back of the unit
or
ANT IN (_
ANT OUT _
Video recorder
with TV Tuner
DVD Recorder/
VCR )
L
Audio
OUT (_;\?/
R ,
S-Video signals have
priority.
AC cord
(Connect after
all the other
connections.)
Ill
% _ IN _:J _ TO record TV shows
\ Audio'Q_¢_T
Fastener
_To unfasten
_- Note
k
@All cables and external equipments shown in this book are not supplied with the TV.
@For additional assistance, visit us at www.panasonic.com
@The S Video input will override the composite video signal when S Video cable is connected.
Connect either S Video cable or Video cable.
€The input signals connected to the terminal selected in "Prog-out stop" menu cannot be output from PROG.OUT
terminals. (both picture and audio)
However, audio output can be obtained from the optical DIGITAL AUDIO OUT terminal.
@When a device (STB, DVD, etc.) is connected to the HDMI or COMPONENT terminals (p. 30-31 ), only audio
signals will be output. No video signals will be output.
@When receiving digital channel signals, all digital formats are down-converted to composite NTSC video to be
output through the PROG.OUT terminals.
¢ Some programs contain a copyright protection signal to prevent VCR recording.
@Set the TV channel to CH3 or CH4 for using Cable Box Connection.
