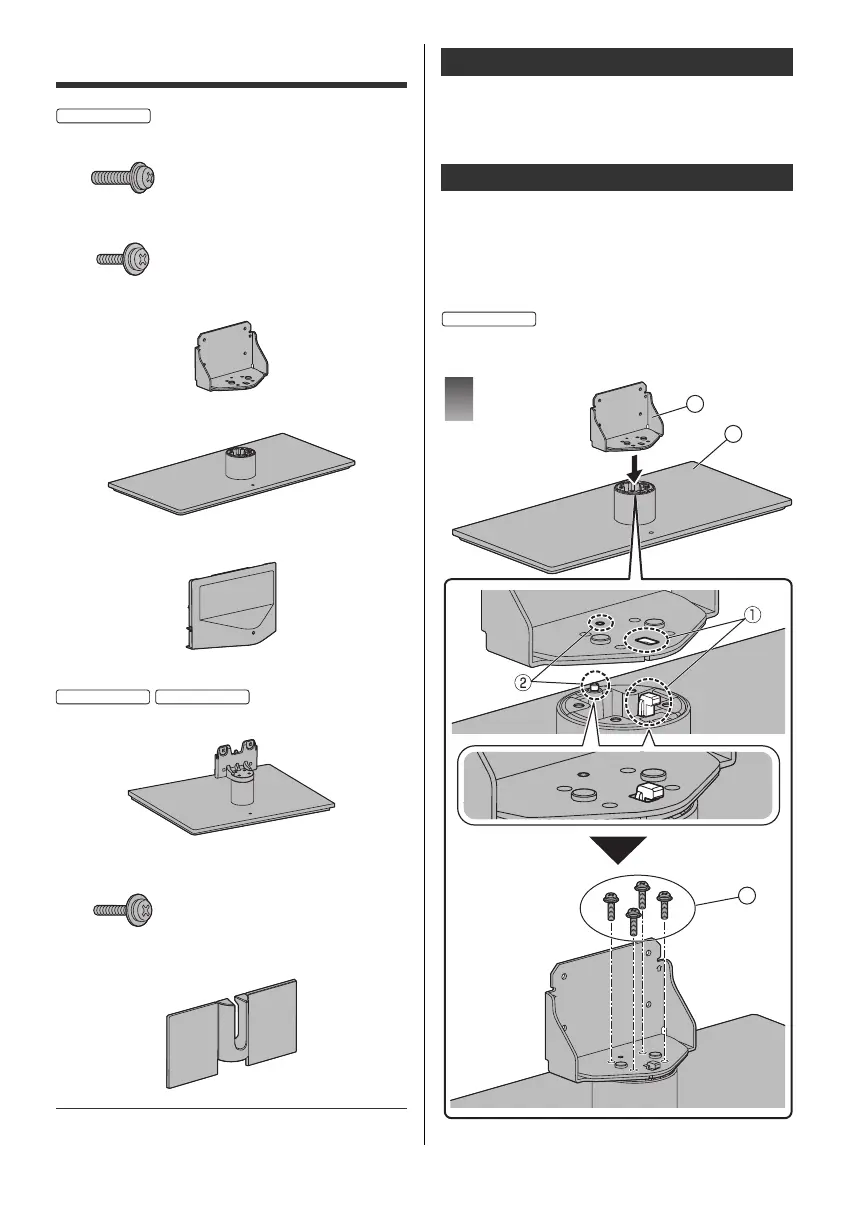

Installing the TV
A Assembly screw (4)
B Assembly screw (4)
C Bracket
D Base
E Cover
F Pedestal
G Assembly screw (4)
H Cable cover
≥ Do not hold the screen panel part.
≥ Make sure not to scratch or break the TV.
≥ Do not place the TV temporarily on the floor or desk.
≥ Insert the pedestal firmly, otherwise it may come off
when setting up the TV.
≥ Make sure that all screws are securely tightened.
≥ Do not assemble the pedestal by any method other
than those specified below.
Make sure to assemble the pedestal before taking out
the TV from the carton.
M5 × 20 (mm)
M4 × 12 (mm)
M4 × 15 (mm)
48-inch model
55-inch model
65-inch model
Preparations
Assembling the pedestal
48-inch model
1
C
D
A
