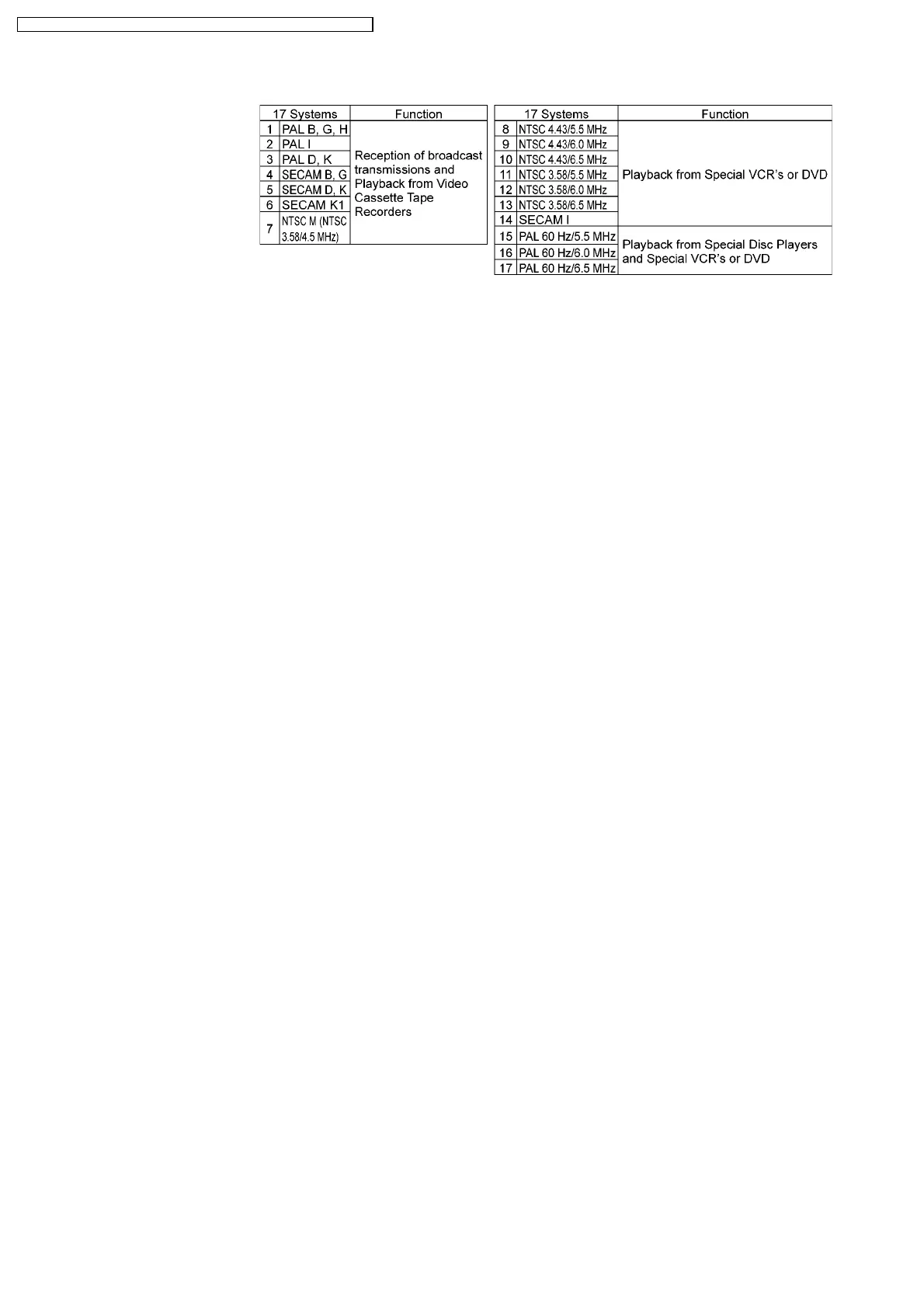

Receiving Systems
/
Band name
(PY model)
Receiving Channels (Regula
r
TV)
(PY model)
V
HF BAND UHF BAND CAT
V
2-12 (PAL
/
SECAM B, K1) 21-69 (PAL G, H, I/SECAM G, K, K1) S1-S20 (OSCAR)
0-12 (PAL B AUST.) 28-69 (PAL B AUST.) 1-125 (USA CATV)
1-9 (PAL B N.Z.) 13-57 (PAL D, K) C13-C49 (JAPAN)
1-12 (PAL
/
SECAM D) 13-62 (NTSC M Japan) S21-S41 (HYPER)
1-12 (NTSC M Japan) 14-69 (NTSC M USA) Z1-Z37 (CHINA)
2-13 (NTSC M USA) 5A, 9A (AUST.)
Receiving Systems
/
Band name
(PZ model) P
A
B/G Reception of Off ai
r
broadcasts
DVB-T 7 MHz VHF
/
UHF (Australia) free-to-ai
r
TV broadcast reception
P
A
60 Hz Playback of NTSC tape from some PAL Video recorders (VCR)
M.NTSC Playback from M. NTSC Video recorders (VCR)
NTSC Playback from NTSC Video recorders (VCR)
Aerial - Rea
r
VHF
/
UHF (P
Y
model) , Standard Belling & Lee Connecto
r
(PZ model)
Operating Conditions Temperature : 0 °C - 40 °C
Humidity : 20 % - 80 % RH (non-condensing)
Connection Terminals
AV1 Input
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
V
IDEO RCA PIN Type × 1 1.0 V[p-p] (75W)
S
V
IDEO Mini DIN 4-pin Y:1.0 V[p-p] (75W) C:0.286 V[p-p] (75W)
AV2 Input
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
V
IDEO RCA PIN Type × 1 1.0 V[p-p] (75W)
COMPONENT
Y
1.0 V[p-p] (including synchronization)
P
B
/C
B
P
R
/C
R
±0.35 V[p-p]
AV3 Input
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
V
IDEO RCA PIN Type × 1 1.0 V[p-p] (75W)
COMPONENT
Y
1.0 V[p-p] (including synchronization)
P
B
/C
B
P
R
/C
R
±0.35 V[p-p]
AV
4
Input
AUDIO L - R RCA PIN Type × 2 0.5 V[rms]
V
IDEO RCA PIN Type × 1 1.0 V[p-p] (75W)
S
V
IDEO Mini DIN 4-pin Y:1.0 V[p-p] (75W) C:0.286 V[p-p] (75W)
Monitor
Output
AUDIO L - R RCA PIN Type × 2 0.5 V[rms] (high impedance)
V
IDEO RCA PIN Type × 1 1.0 V[p-p] (75W)
2
TH-65PZ700A / TH-65PY700AZ / TH-65PY700H / TH-65PY700M / TH-65PY700MR
