Panasonic TH-C42FD18 - Page 82

82
TH-C42FD18

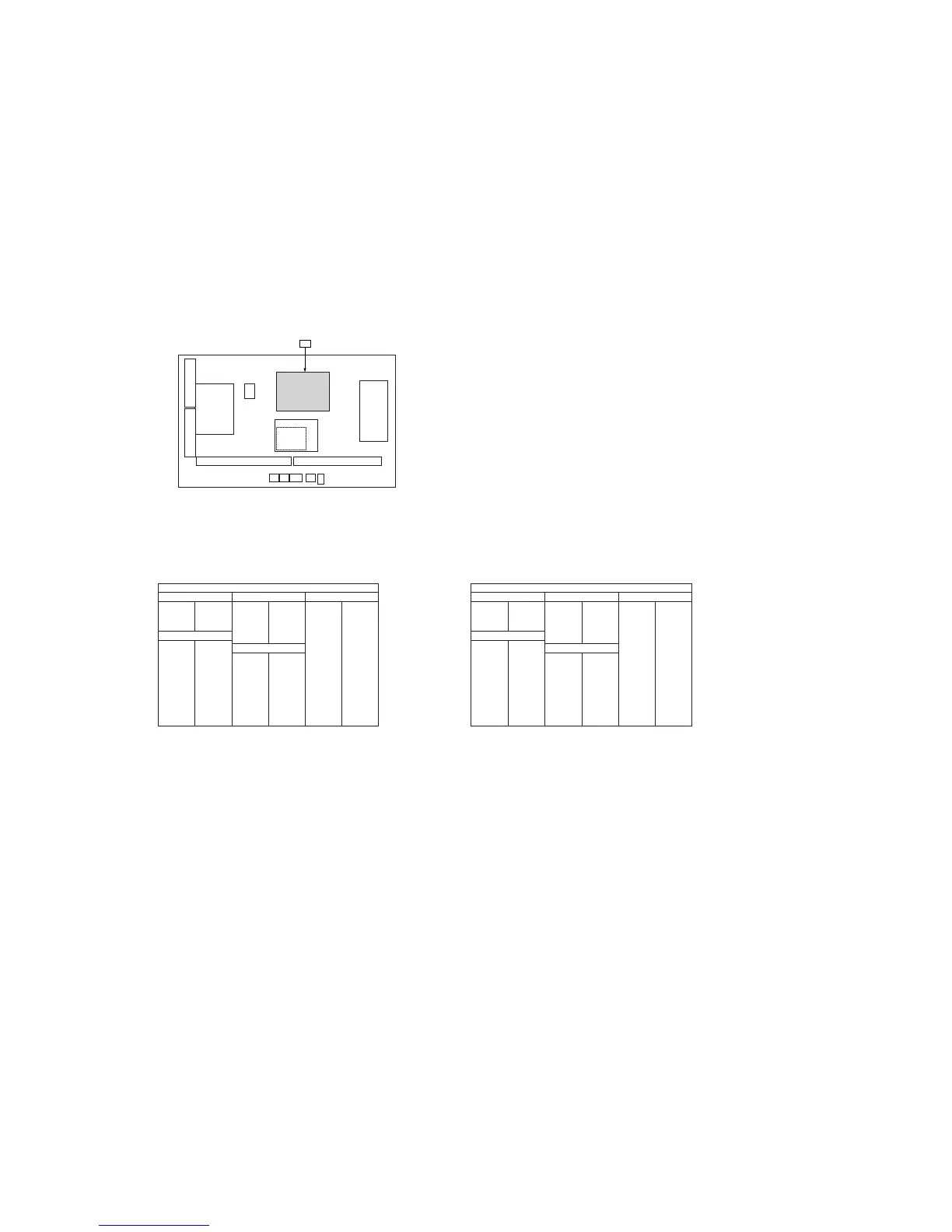

P-BOARD PARTS LOCATION
TH-C42FD18
P-BOARD PARTS LOCATION
Parts Location
P-BOARD (FOIL SIDE)
IC251 D-5
IC352 G-4
IC501 B-4
IC555 B-6
MC201 C-3
MC203 E-3
MC301 F-3
MC352 G-5
MC401 E-5
MC451 G-5
MC501 B-3
MC502 C-3
MC552 H-5
MC601 H-3
MC602 F-2
MC603 H-2
MC701 I-5
IC
MODULE
Q301 F-3
Q302 G-3
Q351 G-5
Q401 E-4
Q402 F-4
Q403 F-4
TP1 C-2
TP2 E-2
TP3 H-3
TP4 H-4
TP5 G-4
TP6 E-5
TP7 C-5
TP8 C-5
TP9 E-4
TP10 C-5
TRANSISTOR TRANSISTOR
VR251 D-5
VR401 F-4
TRANSISTORVOLUME
TEST POINT
Parts Location
P-BOARD (COMPONENT SIDE)
IC251 F-5
IC352 C-4
IC501 H-4
IC555 H-6
MC201 G-3
MC203 E-3
MC301 E-3
MC352 C-5
MC401 E-5
MC451 D-5
MC501 H-3
MC502 G-4
MC552 B-5
MC601 B-3
MC602 D-2
MC603 C-2
MC701 B-5
IC
MODULE
Q301 D-3
Q302 C-3
Q351 C-5
Q402 D-4
Q403 D-4
TP1 C-2
TP2 E-2
TP3 H-3
TP4 H-4
TP5 G-4
TP6 E-5
TP7 C-5
TP8 C-5
TP9 E-4
TP10 C-5
TRANSISTOR TRANSISTOR
VR251 F-5
VR401 D-4
TRANSISTORVOLUME
TEST POINT
P
