Panasonic TH-L32X20S

TH-L32X20S
66
12.8. P-Board

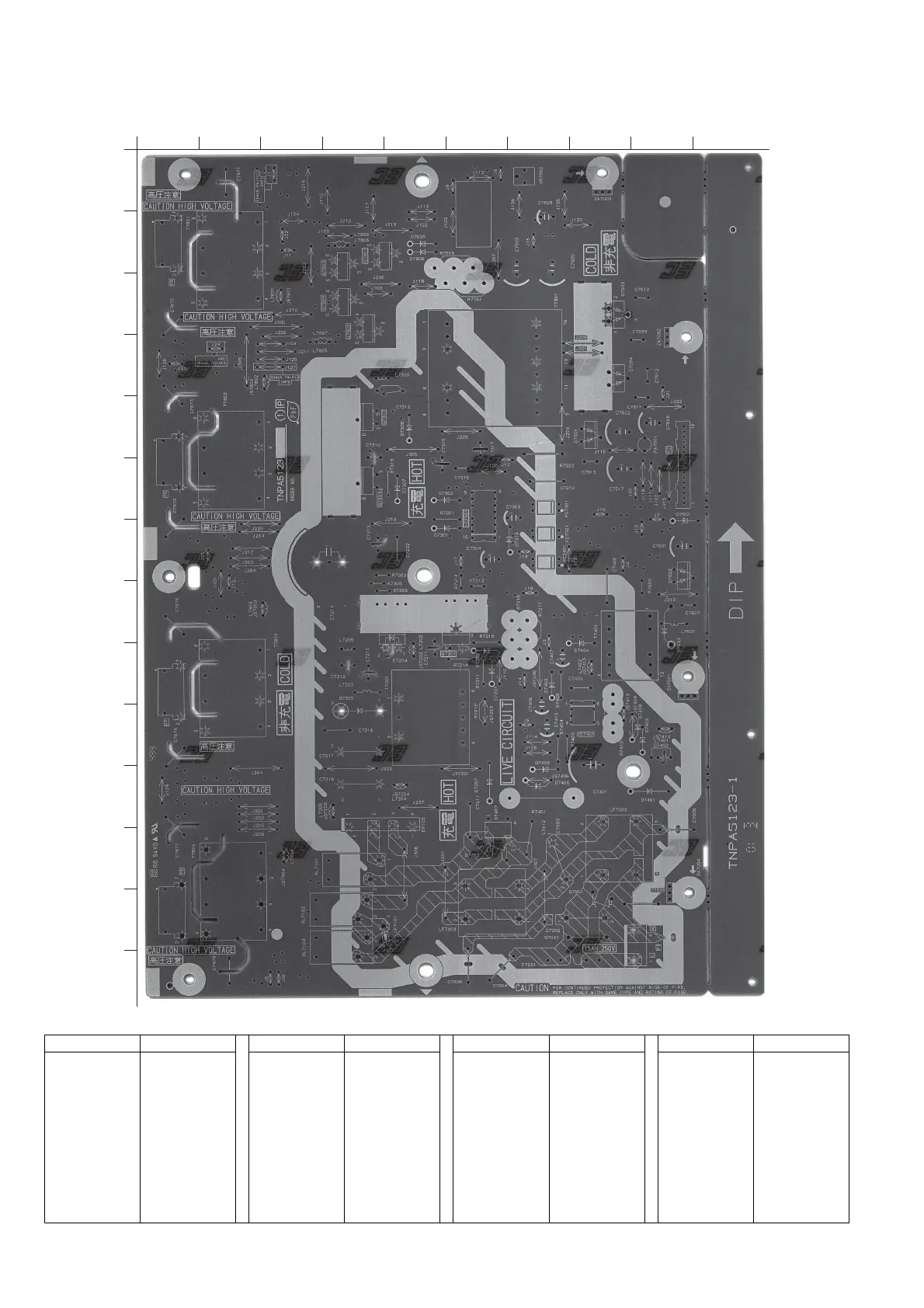

P-Board (B Side)
TNPA5123
Parts Location
Ref. No Location Ref. No Location Ref. No Location Ref. No Location
IC7301 G6 D7001 M7 D7306 E5 D7408 J8
IC7401 J8 D7002 L6 D7307 F5 D7501 E7
D7102 L5 D7314 G6 D7503 C8
D7201 I6 D7401 K9 D7504 D8
D7202 I6 D7402 J8 D7601 G9
D7204 I4 D7403 I7 D7602 H9
D7205 J4 D7404 I7 D7603 I9
D7207 K6 D7405 K7 D7805 B5
D7301 G5 D7406 K7 D7806 B5
D7302 F5 D7407 K6
