Panasonic TK-AS700 - Installation 4 Installing the Alkaline Ionizer; Installation 4

EN18
Installation4

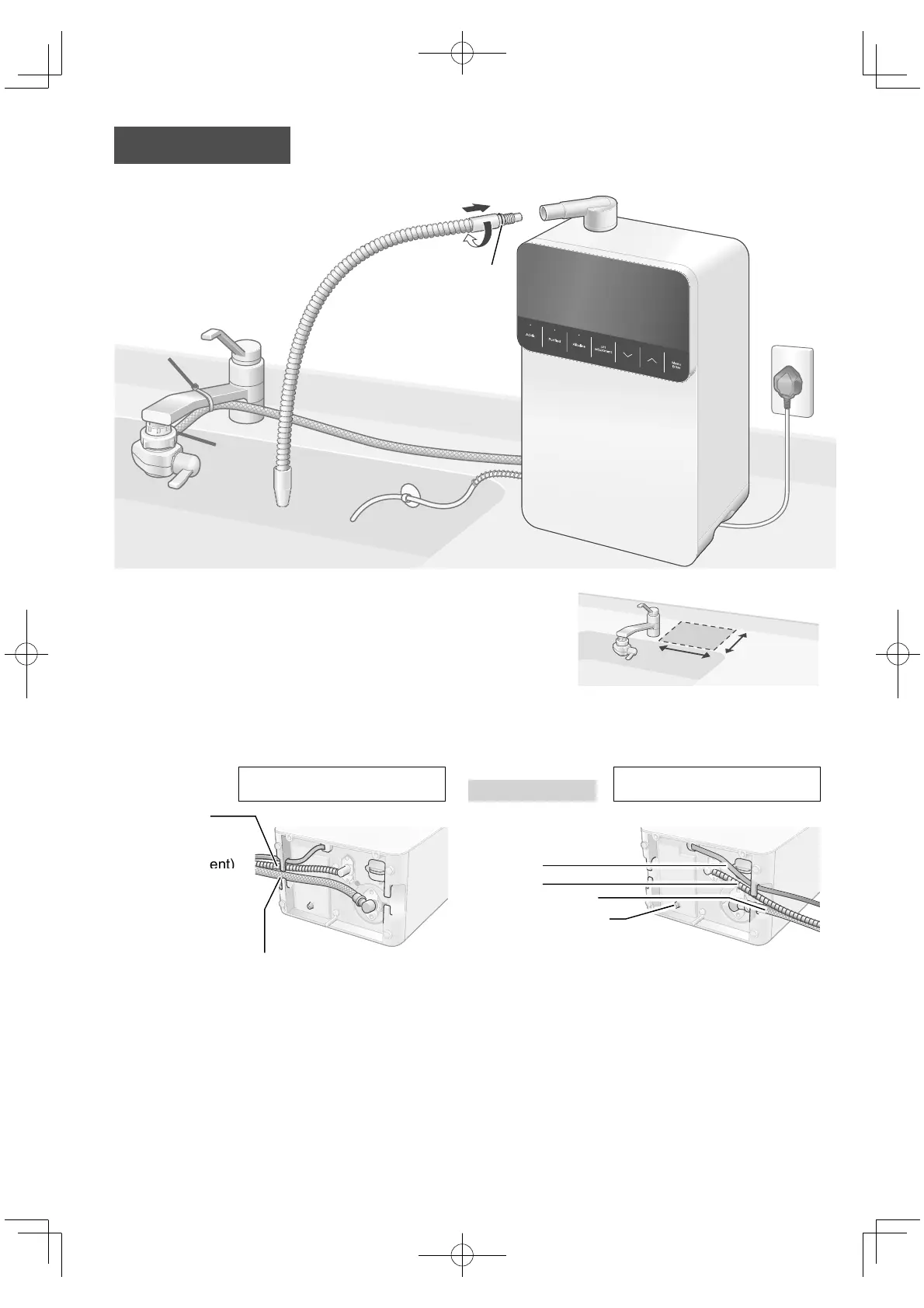

Installing the Alkaline Ionizer
Gasket
5
4
3
6
7
1
Choose a stable, level surface.
10 cm
or more
18 cm or more
2
Extend the power cord and hose in the manner
that best suits the location where the unit is installed.
 Do not fl atten or bend the cord or hose.
Spring
( to prevent the
hose from
being bent)
Wedge the hoses
into this cutout
Water supply hose
Power cord
Condensation water
outlet (P. EN39)
Drain hose
e
nt t
he
o
m
ent)
When drawing out the cord and hoses from the right side, rotate the
water supply hose counterclockwise, and insert it to the cutout fi rst.
When extending the cord and
hose from the left
Bottom of the unit
When extending the cord and
hose from the right
Front panel of the main unit
Front panel of the main unit
